Jupiter Marine 43 SF (2018-)

Boat History Report Banner Ad

Brief Summary

The Jupiter 43 SF exudes understated luxury in a center console that is ready to do battle on the open sea. The air-conditioned cabin below provides respite from the elements and the ability to stay aboard overnight. A quad of Yamaha 350s strapped to the transom should have plenty of power to get to the day’s destination quickly.

Key Features

  • Integrated transom seat with 90-gallon, insulated and illuminated livewell
  • Through the stem bow roller with windlass in the forward anchor locker with remote
  • Insulated and illuminated 420-quart fishboxes port and starboard
  • Fiberglass T-top with fiberglass molded overhead electronics box
  • Port and starboard dive doors with removable folding ladder
  • Port and starboard forward seating that convert to loungers with motorized flip-up back rests
  • 75-gallon freshwater system with two washdown spigots and a transom shower
  • Cabin with sleeping accommodations for two, 10,000 BTU air-conditioner, 24” LED TV with AM/FM/CD/DVD stereo, electric porcelain head, shower, microwave, sink and storage
  • Transferable, limited lifetime warranty for structure

Specifications

Length Overall 43' 1'' / 13.13 m
Beam 12’ 6''
6.55 m
Dry Weight 18,175 lbs.
8,244 kg
Draft N/A
Deadrise/Transom 24-deg.
Max Headroom open
Bridge Clearance N/A
Fuel Capacity 602 gal.
2,279 L
Water Capacity 75 gal.
284 L

Engine Options

Tested Engine Currently no test numbers
Std. Power 4 x 350-hp Yamaha 4-stroke
Opt. Power Not Available

Captain's Report

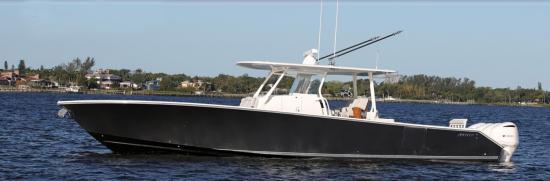

Jupiter 43 SF profile

The Jupiter 43 SF combines the fishing prowess of a center console with a layout that is conducive to entertaining and socializing.

Jupiter 43 SF running

The Jupiter 43 SF comes standard with triple Yamaha F350 4-stroke outboard engines. Shown here is the optional quad Yamaha F350 4-stroke outboard engines.

Mission

The primary mission of the Jupiter 43 SF is to deliver a superior offshore fishing platform that gets to the bite fast in almost any sea condition. To accomplish that, Jupiter’s hull pad design creates lift that provides an efficient running attitude, resulting in higher speeds, solid handling, increased fuel economy, and a smooth ride with no loss of visibility from the helm.

The 43 SF’s secondary mission is to do all that in comfort and style so the boat can be used for entertaining around home with family and friends.

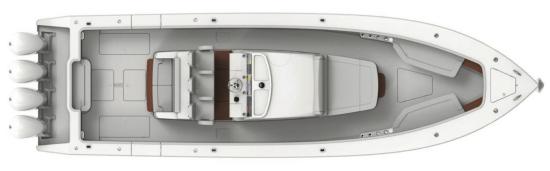

Jupiter 43 SF

The layout of the Jupiter 43 SF has wide passages from the aft cockpit to the forward bow area and seating throughout.

Major Features

    • 360-Degree Coaming Bolsters. Demonstrating that the 43 SF is a serious fishing boat, the gunwales have coaming pads around the entire boat.

    • Integrated Transom Seat and Livewell. The transom bench seating has a 90-gallon (341 L) livewell under the seat.

    • Mezzanine Seating. The aft-facing mezzanine seating behind the helm provides an ideal spot to watch the baits.

    • Forward Seating. The Jupiter 43 SF has abundant forward seating options from the coffin box lounger in front of the console to the port and starboard seats that convert to loungers with the touch of a button.

    • Raised Helm. The raised helm on the Jupiter 43 SF provides excellent visibility and the custom helm seating is three wide and offers individual flip-up bolsters.

    • In the Console Cabin. The cabin that sleeps two inside the console of the 43 SF has A/C, a galley with storage, and a head with a sink and a shower.

    • Diesel Generator. Standard on the Jupiter 43 SF is a 9-kW diesel generator with a separate 49-gallon (185 L) diesel fuel tank.

    • Freshwater System. The Jupiter 43 SF has a 75-gallon (283 L) freshwater system with two washdown spigots and a transom shower.

    • Dive Doors. The port and starboard dive doors provide easy access to the water off a floating dock.

    • T-top. The fiberglass T-top includes an overhead fiberglass molded electronics box, port, and starboard grab rails, Lumitec Mirage Spectrum Lighting and six-rod holders.

    • Through Stem Bow Roller. The anchor is deployed via a through stem bow roller and in the anchor locker is a windlass with remote control.

Boat Inspection

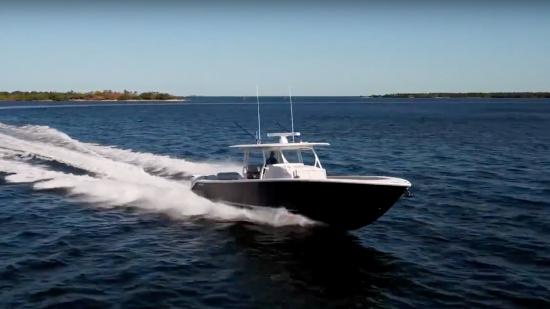

Jupiter 43 SF running

The Jupiter 43 SF is designed to have very little bow rise when accelerating with clear forward visibility for the operator.

The Jupiter 43 SF has a length overall of 43’1” (13.13 m), a beam of 12’6” (6.55 m), and an approximate empty weight 18,175 lbs. (8,244 kg).

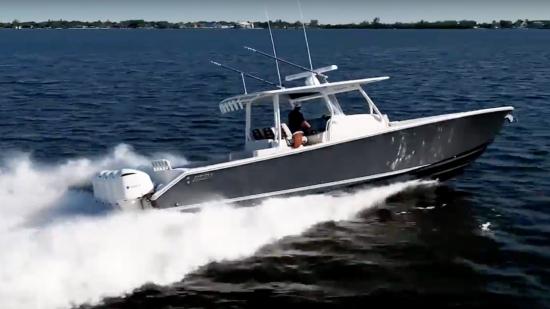

Jupiter 43 SF running

With four 350-horsepower Yamaha 4-stroke outboards, the Jupiter 43 SF should be quick off the mark and get to the bite quickly.

Bow

The Jupiter 43 SF’s bow demonstrates Jupiter’s commitment to building a true fishing machine with the through-the-stem bow roller and anchoring system and pull-up bow cleats to keep the foredeck clear of snagging hazards. The foredeck has patterned, molded-in non-skid, and a flush mounted hatch over the anchor locker. Inside the anchor, the locker is the anchor windlass, which has a remote.

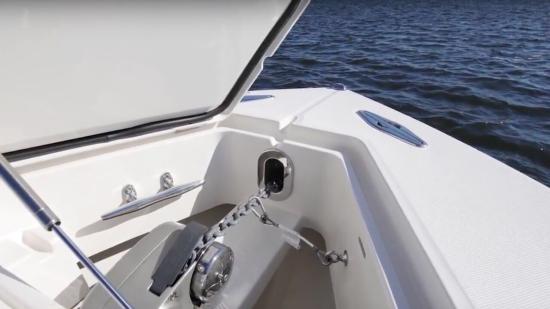

Jupiter 43 SF anchor

Shown is the anchor locker with a gas-assisted strut on the hatch. Note the fixed cleat inside the locker to secure the rode keeping the foredeck clear when anchored.

Forward Bow Area

It is evident that the forward bow area was designed for serious fishing with five rod holders on both the port side and the starboard side as well as rod holders built into the rail cap that is replete with molded-in anti-skid. It is also obvious that Jupiter wanted passengers to enjoy comfortable seating for the ride to the bite or just out for the day.

The port and starboard bench seats convert automatically to loungers with a touch of a button and in front of the console is a double wide sun lounge on the coffin box with fold-down armrest and drink holders.

Jupiter 43 SF bow

The forward bow-area layout is conducive to fishing or socializing. Note the side by side loungers with fold-down armrests and drink holders.

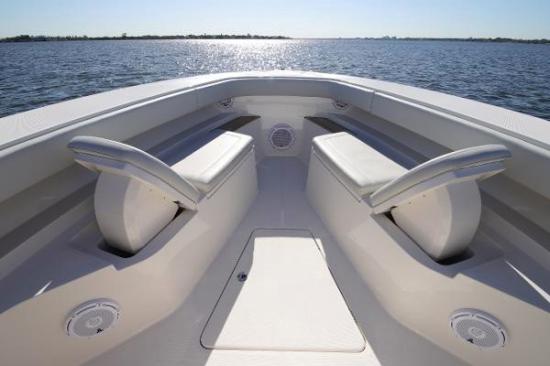

Jupiter 43 SF

The forward bench seats convert to loungers at the touch of a button. Note the 680-quart storage in the deck and three speakers mounted in the risers. There must be handholds somewhere because they’re required by ABYC, but we can’t see them in this picture.

Center Console

The large center console houses an air-conditioned cabin that sleeps two and has a galley with microwave and storage. Wide side decks allow easy passage from the forward bow area to the aft cockpit when fish fighting or simply moving about. Access to the cabin is a door on the port side of the console.

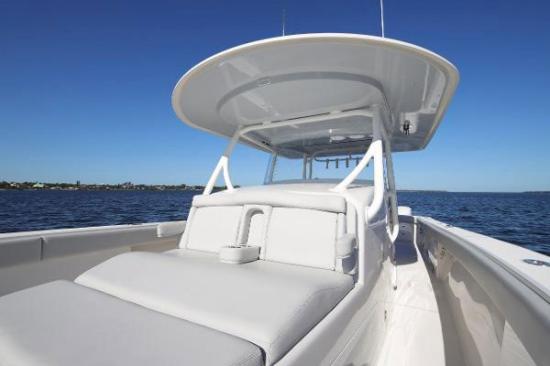

Jupiter 43 SF

Note the coaming pads that surround the entire Jupiter 43 SF, and the wide port side deck.

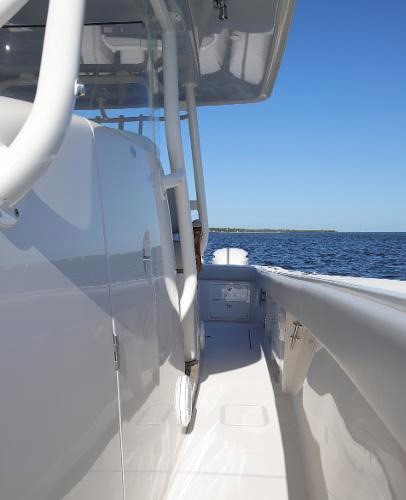

Jupiter 43 SF cabin

The cabin entrance is a solid fiberglass door in the port side of the console. Note the fixed cleat mounted under the coaming pad. With a hawse pipe mounted in the caprail, a spring line can be secured through the hawse pipe.

Hawse Pipes. Traditionally a hawse pipe is an iron or steel pipe in the stem or bow of a ship which the anchor chain or cable, mooring lines, passes through. On boats, they are usually stainless-steel fixtures that allow dock lines to pass through the caprail to a cleat mounted below. This permits manufacturers to keep the caprail free of obstructions.

Helm

The helm is designed to be operated from the center of three custom bucket seats with armrests. The layout is exceptionally clean with the dash able to accommodate up to three 22” (.56 m) multifunction displays, creating a glass-helm. The center mounted, black Edson wheel has an adjustable tilt base and the engine control binnacle is mounted to starboard of the wheel.

The joystick and bow thruster controller are neatly mounted beneath a hatch cover on the dash, keeping them out of the way when not needed. The electrical controls are digital, and the systems are activated through the C-Zone Digital Switching.

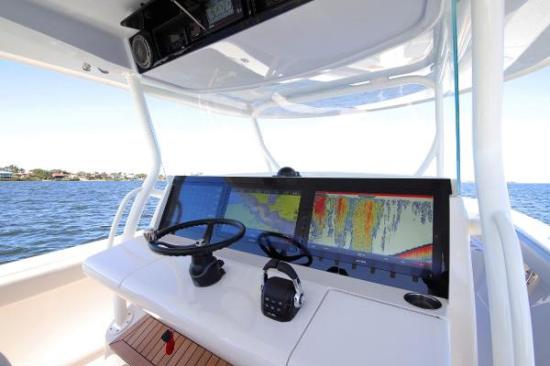

Jupiter 43 SF helm

The glass helm and minimalist design of the helm allow the operator to concentrate on the tasks at hand – and looks extremely cool. Note the footrest and grab rails on the T-top frame. We like the ability to tilt the wheel up so that it can be steered like a bus when standing.

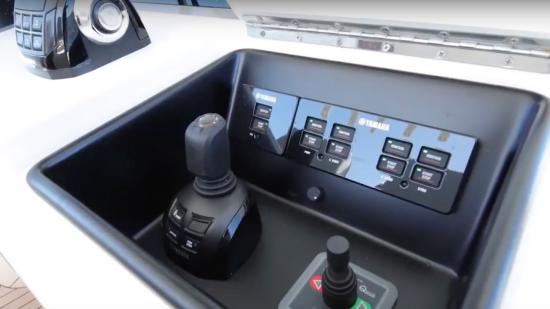

Jupiter 43 SF joy stick

The flush mounted cover lifts to reveal the joystick and optional bow thruster control for close-in maneuvering. These recessed controls are an innovation.

Jupiter 43 SF compass

The compass is located on top of the console in direct line of sight for the operator. Note the optional custom ladder back wood seat frames.

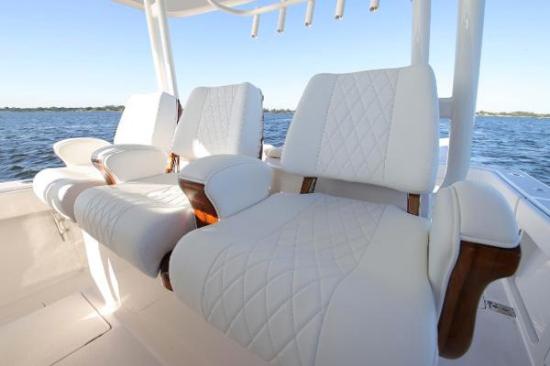

Jupiter 43 SF helm seats

Shown is the optional custom bucket helm seating with diamond stitched upholstery and wood details, which make this seating trifecta one of the most elegant we have ever seen on a center console.

T-Top

The Pro Curve glass windshield extends to the hardtop, providing a barrier from the elements for those in the helm seats. The T-top frame is substantial but only minimally obstructs the 360-degree view from the helm. The electronics box is molded fiberglass and Lumitec Mirage Spectrum lighting is mounted in the hardtop.

Jupiter 43 SF rocket launcher

Six rocket-launcher style rod holders are mounted on the back of the T-top frame.

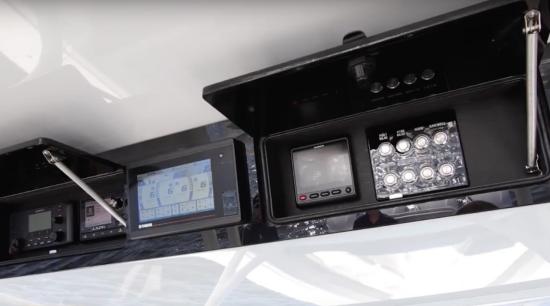

Jupiter 43 SF display

The Yamaha engine display is mounted in the electronics box mounted on the underside of the T-top. Gear mounted up here looks cool, but in practice can be a pain in the neck – literally. We understand the clean helm design that the builder is trying to achieve, so we would have the critical Yamaha engine data displayed on one of the screens below.

Cabin

The understated luxury continues into the cabin. The forward part of the cabin has sleeping accommodations for two in 10,000 BTU air conditioning comfort. The compact galley has a microwave, a sink, and galley storage. There is a standup head shower compartment that offers a pressurized hot and cold-water shower and teak décor.

The porcelain head is electric and has a 15-gallon (57 L) holding tank with macerator. The separate vanity features a quartz countertop with vessel sink with pressurized hot and cold water. A 12-volt LED TV with DVD provides the entertainment and there is a cedar lined hanging locker.

All of these appliances and accessories are powered by a 9 kW diesel generator with its own 45-gallon (17 L) fuel tank. This is a very wise decision because it is tempting to put a low-CO gas generator aboard so that it can draw from the same fuel tanks as the engines. However, having a diesel system is still much safer and well-worth the extra money, in our opinion.

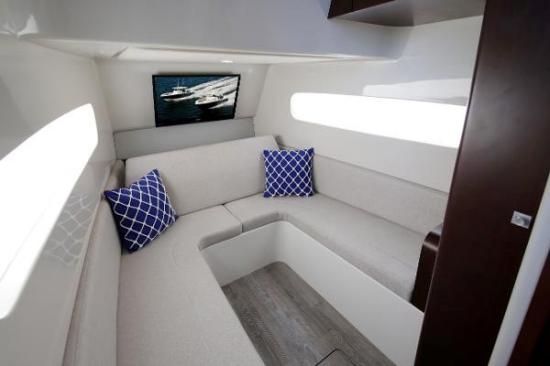

Jupiter 43 SF seating

The forward seating converts to sleeping accommodations for two. Note the LED television mounted on the bulkhead.

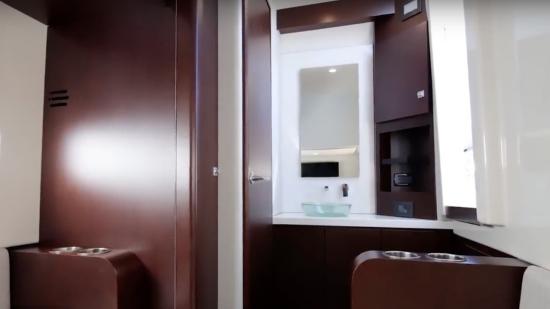

Jupiter 43 SF vanity

Shown is the vanity with a bulkhead mounted mirror. Note the entry door to the right (port side) and the hanging locker and head compartment to the left (starboard side).

Jupiter 43 SF head

The view inside the standup wet head compartment shows the porcelain toilet and the shower wand mounted on the bulkhead.

Aft Cockpit – The Business End

The business end of the boat is the aft cockpit with aft facing mezzanine seating to watch the baits and fishing action once there is a hook-up. Port and starboard dive doors make boating large pelagic predators easier and boarding from a floating dock simple.

The port and starboard, in-deck, 420-quart fishboxes are insulated, illuminated and self-draining. Tackle boxes are built into the transom along with a 90-gallon (341 L) insulated and illuminated livewell built under a forward-facing bench seating. All indicating that Jupiter is serious about the 43 SF being a true offshore Sport Fishing machine.

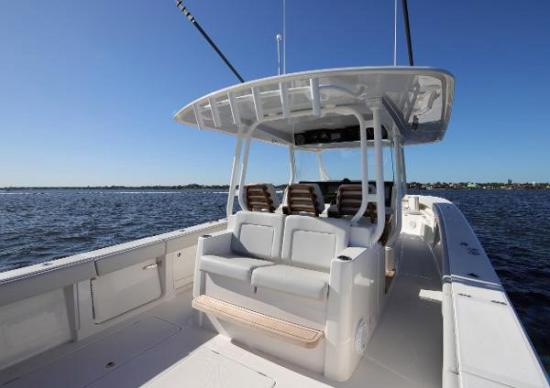

Jupiter 43 SF mezzanine

Mezzanine seating with a footrest gives spectators a perfect vantage of the fishing action in the aft cockpit.

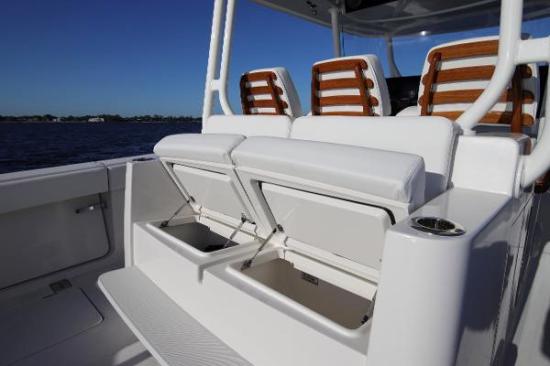

Jupiter 43 SF cooler

Deep insulated cooler storage inside the mezzanine seating can be an optional livewell or refrigerator.

Jupiter 43 SF dive door

Port and starboard dive doors have removable folding ladders.

Re-Boarding Ladder. ABYC standards call for all boats to have a re-boarding ladder deployable by someone in the water. It must reach a minimum of 22” (.56 m) below the waterline. By having the swim ladders port and starboard in the hull sides, instead of aft, an important measure of safety is introduced to this boat. With four outboard engines across the stern, no one should ever be in the water back there when they are turned on. We think Jupiter has done a good job of blocking off the transom for that reason.

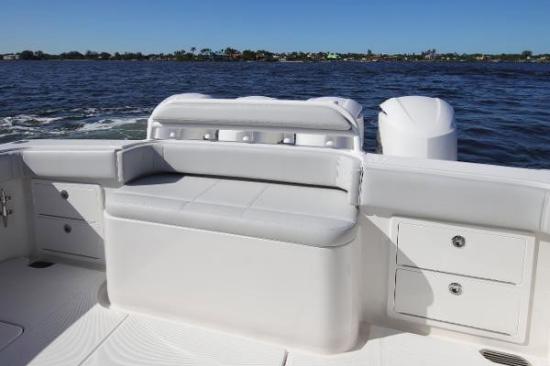

Jupiter 43 SF transom seating

The forward-facing transom seating is flanked by four conveniently placed tackle drawers. We’d like to see a fold-down footrest here.

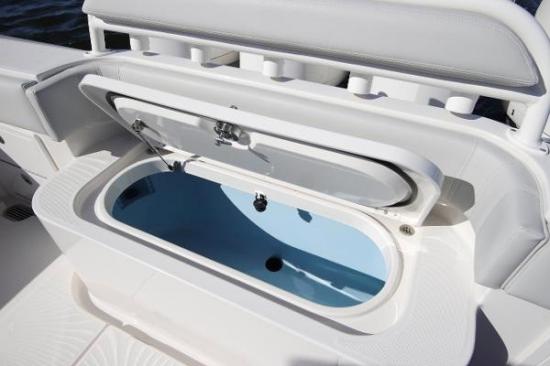

Jupiter 43 SF transom bench

Inside the transom bench seating is a 90-gallon (341 L) livewell that is insulated and illuminated. Note the five-rod holders mounted on the seatback frame.

Warranty

Jupiter Marine International offers a transferable limited lifetime warranty for structural integrity. Contact Jupiter for details.

Options to Consider

Tuna tower package includes the following:

    • Upper helm with black Edson wheel

    • Molded fiberglass hardtop and standing platform

    • Flat black tower box face

    • Forward and rear spreader lights

    • Seat cushion and backrest

    • Yamaha controls

    • Trim tab controls


Interior cover package includes the following:

    • Console cover

    • Helm seat cover

    • Engine covers

    • Aft mezzanine seat cover

    • Bow seating covers

    • Sun pad cover

    • Garmin electronics package

    • Underwater LED

    • Bow thruster

    • Seakeeper gyro-stabilization system

    • Reverso engine flush

    • Cockpit boarding steps

    • Release Marine teak ladder back helm chairs

    • Diamond stitching and piping on seating

    • Teak cabin table

    • Bomar cabin hatch

    • Tackle center with solid surface countertop, electric grill, sink, drawers and tack and tray storage

    • Water maker

    • Ice chipper

Observations

The Jupiter’s flagship 43 SF model represents an apex of luxury, offshore sportfishing boats. The Jupiter 43 SF model is the culmination of over 35-years of offshore sportfishing boat design and production experience by the owner of the company, who knows this genre as well as anyone in the industry. Add Jupiter’s understated comfort amenities, and the Jupiter 43 SF is an exemplary offshore fishing platform which doubles as an attractive day boat.
