EdgeWater 230CC (2018-)
(w/ 1 x 300-hp Yamaha)

X

Join BoatTest for FREE Now!

Login

Own a boat? Please fill out the following options.

By submitting this form, you acknowledge that you have read and agree with the Privacy Policy & Terms of Use of BoatTEST.com
Signup

Enter in your email below to view all content

;
See the PRICE by becoming a BoatTEST member.
(It's quick and FREE!)


Brief Summary

The EdgeWater 230CC is a versatile center console with many standard features that help its owners enjoy fishing, dayboating, and tow-sports. Built using EdgeWater’s proprietary Single Piece Infusion Structural System, the 230CC has a variable deadrise hull and an all-composite, no-wood construction. The result is a solid, yet lightweight hull that uses a single outboard.

Key Features

  • Single Piece Infusion Structural System construction
  • Fiberglass hardtop with electronics box
  • Wraparound bow seating
  • Variable-height bow table with filler cushion
  • Fresh- and raw-water washdown
  • Walk-in head in console
  • Powder-coated bucket bench seat with armrest and bolsters
  • Slide-out 40-quart cooler
  • Integrated stern seat
  • Porta-Potti with pumpout
  • Specifications

    Length Overall 22’ 8''
    6.9 m
    Beam 8’ 6''
    2.6 m
    Dry Weight 3,900 lbs.
    1,769 kg
    Tested Weight 5,347 lbs.
    2,425 kg
    Draft 15''
    0.38 m
    - Draft Up N/A
    - Draft Down N/A
    - Air Draft N/A
    Deadrise/Transom 20-deg.
    Max Headroom open
    Bridge Clearance 7’ 6''
    2.3 m
    Weight Capacity 2,549 lbs.
    1,156 kg
    Person Capacity 10
    Fuel Capacity 110 gal.
    416 L
    Water Capacity N/A
    Length on Trailer N/A
    Height on Trailer N/A
    Trailer Weight N/A
    Total Weight
    (Trailer, Boat, & Engine)
    N/A

    Prices, features, designs, and equipment are subject to change. Please see your local dealer or visit the builder's website for the latest information available on this boat model.

    Engine Options

    Std. Power Not Available
    Tested Power 1 x 300-hp Yamaha
    Opt. Power Not Available

    Test Results - Change Measurement Unit

    RPM MPH Knots GPH MPG NMPG Stat. Mile NM dBa
    600 3.3 2.8 0.6 5.4 4.7 536 466.3 63
    1000 5.2 4.5 1.3 4.0 3.4 392 341.0 64
    1500 7.1 6.2 2.2 3.2 2.8 320 277.8 69
    2000 8.5 7.3 3.6 2.3 2.0 232 202.1 74
    2500 10.6 9.2 5.6 1.9 1.6 187 163.0 79
    3000 15.8 13.7 7.1 2.2 1.9 220 191.0 83
    3500 28.5 24.8 9.0 3.2 2.8 314 272.6 80
    4000 33.7 29.3 12.6 2.7 2.3 266 231.2 82
    4500 38.0 33.0 17.0 2.2 1.9 222 193.0 79
    5000 42.6 37.0 23.8 1.8 1.6 177 154.1 80
    5500 48.3 42.0 26.4 1.8 1.6 181 157.5 87
    5700 51.1 44.4 26.5 1.9 1.7 191 165.8 88
    RPMNMKMKPHLPHKPLdBA
    600 466.3 863 5.30 2.27 2.30 63
    1000 341.0 631 8.40 4.92 1.70 64
    1500 277.8 515 11.40 8.33 1.36 69
    2000 202.1 373 13.70 13.63 0.98 74
    2500 163.0 301 17.10 21.20 0.81 79
    3000 191.0 354 25.40 26.88 0.94 83
    3500 272.6 505 45.90 34.07 1.36 80
    4000 231.2 428 54.20 47.70 1.15 82
    4500 193.0 357 61.20 64.35 0.94 79
    5000 154.1 285 68.60 90.09 0.77 80
    5500 157.5 291 77.70 99.93 0.77 87
    5700 165.8 307 82.20 100.31 0.81 88

    All fuel consumption numbers are the total for all engines in the boat. Speeds are measured with Stalker ProSports radar gun or GPS. Fuel consumption (gallons per hour) measured with Floscan digital fuel-flow meter or by on-board factory-installed diagnostic instruments. Range is based on 90% of published fuel capacity. Sound levels determined using Radio Shack digital decibel meter on A scale. 68 dBA is the level of normal conversation. Time to plane is measured from start of acceleration to formation of rooster tail behind boat.

    Performance Chart

    Performance Chart

    Acceleration Times & Test Conditions

    Time To Plane 3.2 sec.
    0 to 30 9.4 sec.
    Ratio N/A
    Props 18T 15 1/4 Saltwatwer Series 2
    Load 3 persons, 1/2 fuel, no water, 50 lbs. of gear
    Climate 80 deg., 72 humid.; wind: 0-5 mph; seas: 0
    Elevation 0

    Captain's Report

    Contents of Report

    Overview

    If a boater is looking for versatility, then there’s no doubt that a center console should be part of the conversation, and EdgeWater has been building them for more than 25 years. The EdgeWater 230CC is the first in a new line of boats for the company, and this build shows off much of what the design team has learned over the years.

    Of course, EdgeWater uses a proprietary Single Piece Infusion Structural System, which combines engineered knitted fiberglass fabrics with foam composite structural stringers and vinylester resin into the mold in one step, resulting in a single-piece construction with an advantageous ratio of components, to minimize weight and maximize strength. EdgeWater takes the construction of the 230CC just as seriously as the company’s larger models, which range from 15’1” (4.6 m) up to 37’ (11.2 m) in the center console configuration, and from 24’6” (7.5 m) to 28’ (8.53 m) in the crossover design.

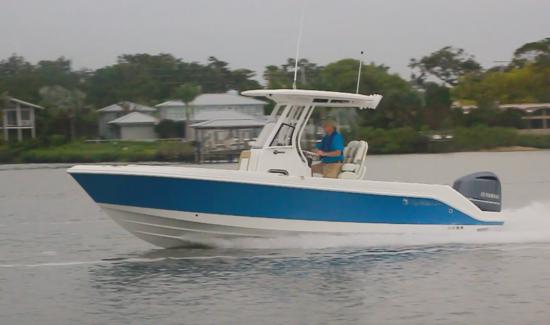

    EdgeWater 230CC running
    The EdgeWater 230CC is a versatile platform for fishing or family activities.

    Features Inspection

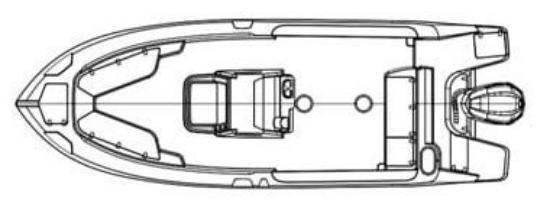

    EdgeWater 230CC deck plan
    This rendering of the layout of the 230CC does not show the leaning post.

    Stern Platform and Transom Area

    Beginning at the stern platform, many boaters will find it easy to step aboard here because the platforms extend beyond the aft bulwarks 3’3” (.99 m) on either side of the single outboard. On our test boat, the engine was a 300-hp Yamaha, an upgrade from the standard 250-hp Yamaha F250. There’s a platform deck all the way across forward of the splashwell to simplify moving about this area for engine checks or from which to launch watersports.

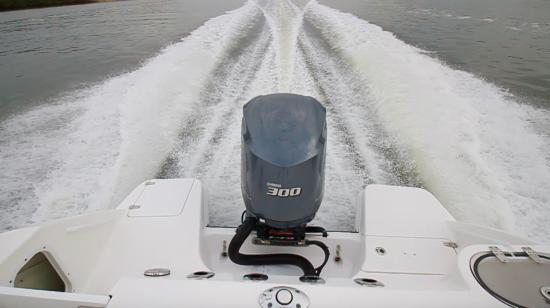

    EdgeWater 230CC platform
    The integrated platform has bulwarks to either side equipped with powder-coated grab rails.

    On the aft end of the starboard platform is a telescoping, folding, three-step reboarding ladder beneath a hinged cover that opens outboard. ABYC standards require a ladder that extends 22” (.56 m) to aid in reboarding. On the portside platform there’s a hatch to a stern anchor locker.

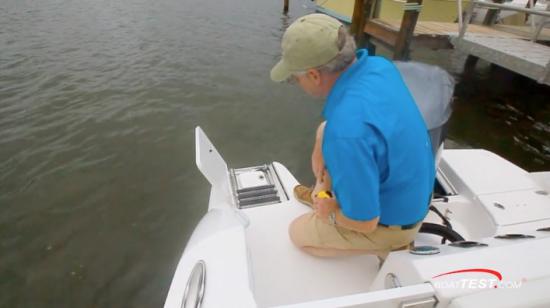

    EdgeWater 230CC platform
    The starboard platform has a hinged cover with a telescoping reboarding ladder underneath it.

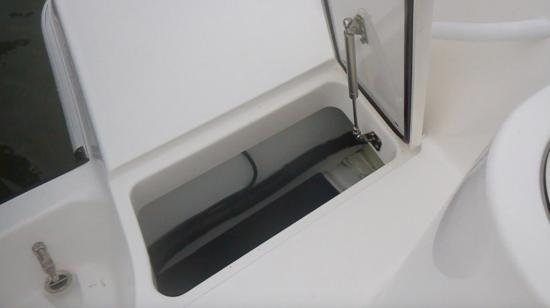

    EdgeWater 230CC anchor locker
    On the port side of the swim platform there’s a stern anchor locker with a gas-assist ram to hold the lid open. Just because this anchor locker is located in the stern does not mean the boat should be anchored from here. It is for a spare anchor.

    Our test boat had the option of four rod holders ($472) across the aft side of transom. To port on our test boat is a 28-gallon (106 L) livewell ($858) with a clear gasketed lid so it may be pressurized to keep bait happy when the running gets rough. There’s a 17” (.43 m) wide transom gate to starboard opening inward, with a stainless slide bolt latch and an 8” (.20 m) step down into the 25” (.64 m) deep cockpit through the gate.

    A standard retractable tow pylon raises the connection point for the towline to 22” (.56 m) above the top of the transom; plenty of height to clear the top of the engine cowling.

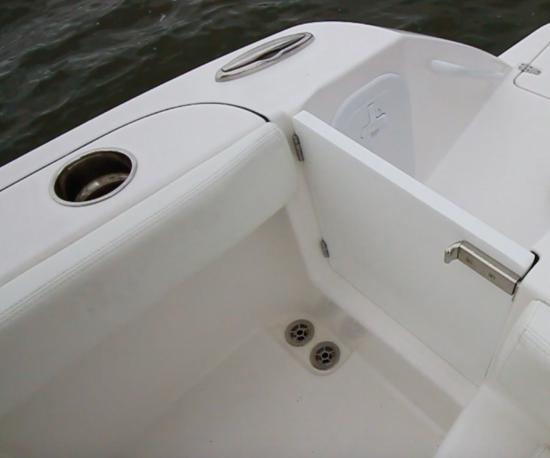

    EdgeWater 230CC transom gate
    The transom gate opens inward and has no hardware to hold it open. Note the twin scuppers in the corner of the cockpit.

    Cockpit

    Except for where the gate precludes it, there’s a 33” (.84 m) wide bench seat across the transom with snap-in-place seat cushions and padded bolsters that serve as backrests. The seat has a locker beneath for stowage with a gasketed, guttered lid to drain away water before it intrudes. A removable hatch in the bottom gives access to the finished bilge, pumps, and through hulls.

    To port is a 12-gallon (45.4 L) livewell. The lids are finished in nonskid to serve as an aft casting platform when the cushions are stowed, but anglers should bring their boat shoes as those cushion snaps may be tough on the feet. There’s a cover USB plug to juice up devices at the port end of the transom bench.

    In the 11” (.28 m) wide covering boards to both port and starboard, there are two rod holders per side. The cockpit has padded bolsters all around to allow anglers or passengers to brace against them in comfort.

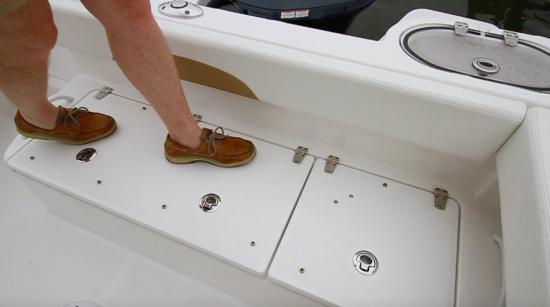

    EdgeWater 230CC deck
    With the cushions removed from the transom bench, this elevated platform will help increase casting range, and is to be used in reasonable conditions.

    Beneath the powder-coated leaning post is a 40-quart cooler that stows on a dedicated tray that keeps it from sliding around, yet has a lift-and-lock latch that, when lifted, slides the cooler aft to allow the lid to be raised to access the contents.

    The leaning post itself is a handy structural element on this boat, for passengers to brace against while seated in the cockpit. The post also has a grab handle across its aft side for passengers to use while standing or sitting.

    EdgeWater 230CC aft
    It’s smart for passengers to brace themselves when sitting aft, considering the view may not allow them to predict the skipper’s next move.

    Three under-gunwale rod holders to starboard keep tackle off the deck while one other is to port. On that side, there’s stowage and a raw-water washdown bibb.

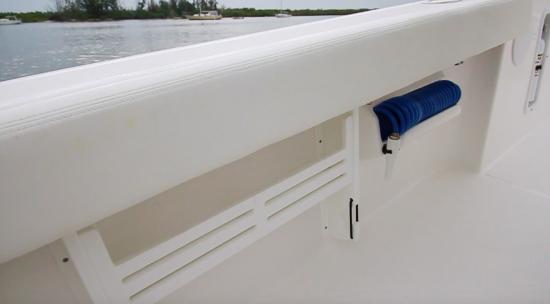

    EdgeWater 230CC gunwale
    The under-gunwale area to port has a single rod rack, with a handy stowage cubby above and a tidy way to stow the washdown hose coil. Those bolsters are 6” (.15 m) top to bottom, and are 27” (.69 m) high amidships.

    Leaning Post

    The helm and companion seats have contrasting upholstery with diamond stitching, custom embroidery, and slots for ventilation in the seatbacks. Fold-down armrests and two separate fold-up bolsters make these seats more comfortable and versatile for the helmsman. The seats have a robust fiberglass backing and a wide grab handle behind for cockpit passengers.

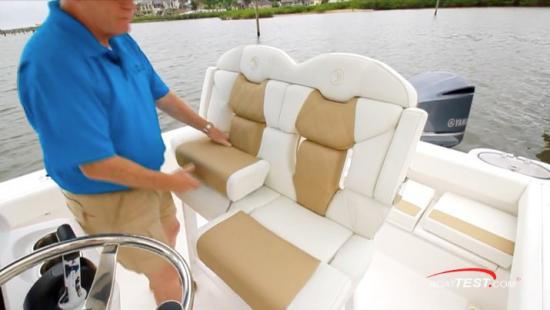

    EdgeWater 230CC helm seats
    The helm and companion seats let two occupants modify their positions independently with flip-down armrests and bolsters.

    Console

    There are fire extinguishers in dedicated, recessed stowage brackets in the bulwarks to both port and starboard of the console, so they don’t interfere with the 22” (.56 m) wide side decks. The console has grab handles welded to the integrated windshield frame and T-top supports on either side for security when moving fore and aft.

    The windshield is made of 3/8” acrylic and it is framed forward and to both sides. The frames are robust and integrated into the T-top support frame. On top of the console, the compass is mounted on centerline. Our test captain prefers it be aligned with the steering wheel, which is offset to port.

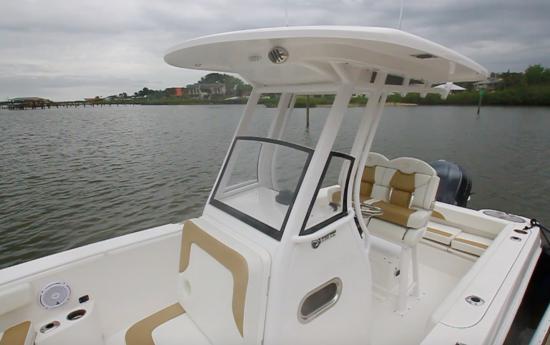

    EdgeWater 230CC
    While the framed windshield design may obscure the view, our test captain preferred that to a curved windshield mounted around the frame, due to the distortion that a curved acrylic windshield often has. Also, it is a far cry from T-top supports that are mounted to the deck.

    Helm Area

    There’s a 12” multifunction display, the Yamaha engine display, a Fusion stereo control head, and a bank of switches for electrical components. The test boat had rocker switches but EdgeWater tells us that this model will be equipped with push buttons in the future, and that the dash will have a leather brow treatment as well. The helm has a cushioned stowage area for odds and ends that would benefit from a little bit more of a raised edge.

    The stainless steel wheel has a steering knob and is mounted on tilt base. Moving starboard across the helm dash from the wheel, we find the Lenco trim tab control with LED indicators, single-lever Yamaha engine control binnacle, and a pair of stainless steel beverage holders, with a covered USB receptacle in between – makes sense since cupholders often serve as phone holders these days. There’s a molded-in angled footrest, with room for toes in a recessed area below for a variety of comfortable helm positions.

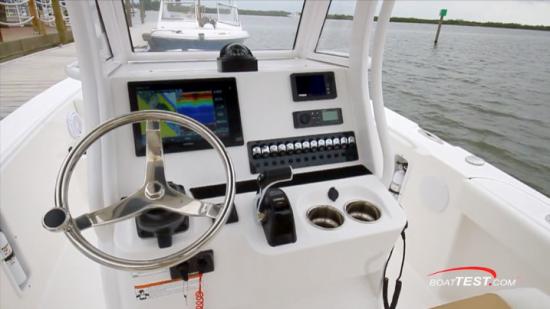

    EdgeWater 230CC helm
    The helm dashboard has good space for electronics and is well designed with grab handles integrated into the T-top frame for improved passenger comfort at speed. Visibility is excellent for this type of boat.

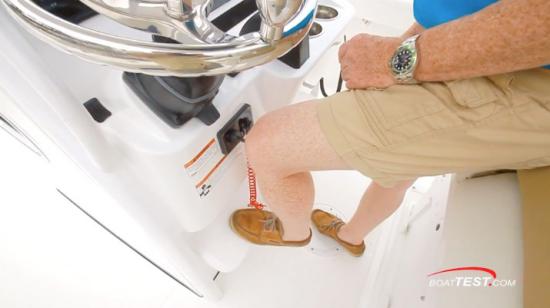

    EdgeWater 230CC foot rest
    The footrest is terrific, but the placement of the ignition switch is less so, right in the knee strike zone.

    The console has a seat on its forward end, facing forward and handy to the bow social area. The seat has a cushioned backrest, and a recessed latch because it’s incorporated into the door to the console interior.

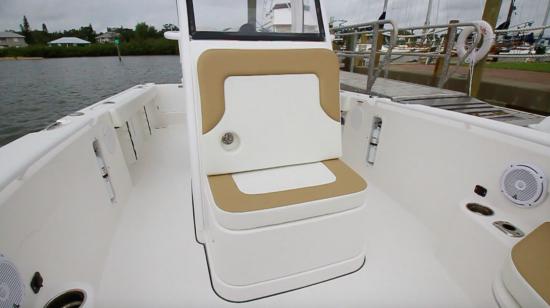

    EdgeWater 230CC console
    The console has a seat on its front with a lift and turn latch to swing open the door embedded in the seat back to starboard…

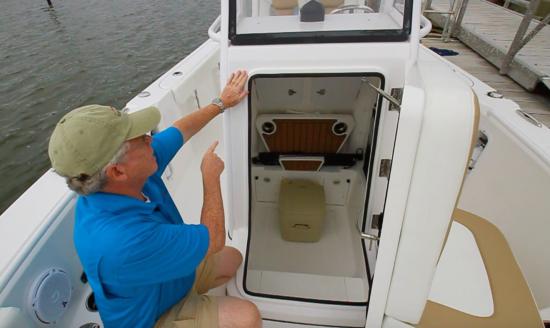

    EdgeWater 230CC head
    …Giving access to the head compartment within. Note the storage behind the Porta-Potti.

    T-Top

    The T-top is ruggedly built and supported on a powder-coated welded-aluminum frame. There are built-in three-color LED lights to light the helm and leaning post, plus LED spreader lights positioned to light the foredeck and cockpit. The T-top also has stereo speakers, a mesh bag for stowing life jackets, and mounts for outriggers. Taco 15’ outriggers ($2,663) are available as an option.

    An electronics box houses the VHF marine radio and glovebox stowage with a flip-up lid. Grabrails to either side extend far back to let passengers hang on in comfort. Five rocket-launcher rod holders line the aft end of the T-top.

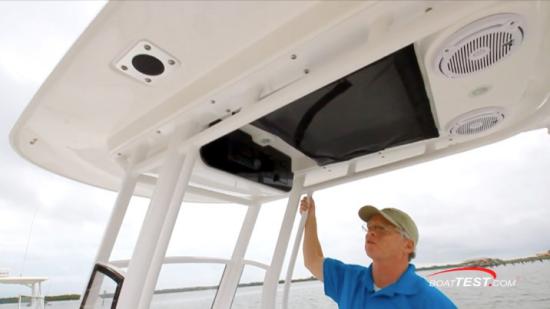

    EdgeWater 230CC electronics box
    An overhead electronics box can keep a VHF accessible and readable. This setup, with a wired remote mic mounted to the starboard side of the console, keeps the mic wire from hanging down and distracting the driver.

    Inside the Console

    Inside the console, the sole is two steps down, where the overhead height in the console is 5’1” (1.5 m) and 3’11” (1.20 m) over the standard Porta-Potti with pumpout, but there’s an available electric head with dockside pumpout ($3,297).

    The boat’s batteries are in the step, and the electrical panel with battery switch is to the starboard side. Robust stainless steel opening portlights are on either side. Lockers in the lower aft bulkhead of the compartment can be used to stow dive tanks or fenders. There’s dedicated stowage for the tabletops in here as well, along with the folding carbon-fiber poles for the sunshades.

    The tables stow vertically in slots behind the Porta-Potti, and, when they’re removed, a lid drops into place that creates a flat surface and prevents small objects from dropping in there. Cargo-net stowage on the portside bulkhead and under the seat in the door will come in handy.

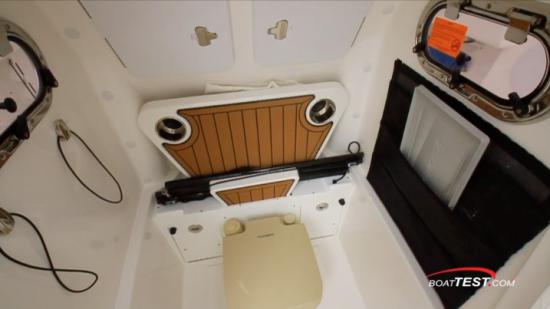

    EdgeWater 230CC bow table
    The bow table stows neatly inside the console. Those hatches above give easy access to the back side of the helm dashboard for electronics installation.

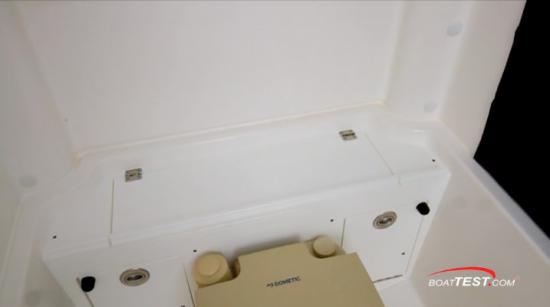

    EdgeWater 230CC
    The aft bulkhead has a flip-down lid that becomes a handy shelf with a lipped edge when not stowing the tables.
    EdgeWater 230CC batteries
    The batteries are easy to inspect, right beneath the step into the console interior.

    Bow

    There’s also a powder-coated rail on the top of the bulwarks next to the caprail that begins amidships and continues to the bow. A 6-½” pull-up cleat on the caprail amidships to port and starboard are welcome for mooring. The bow has wraparound seating with padded bolsters all around to act as a backrest.

    Lockers beneath the bow lounges are convenient stowage for tackle or fenders. At the aft end of the seating on either side is a side table of sorts with a built-in separate beverage holder and rod holder, along with a covered USB receptacle to charge a device. The bow table is standard and is made of vacuum-formed plastic, and has a trapezoidal shape with beverage holders in the four corners and finished in SeaDek matting.

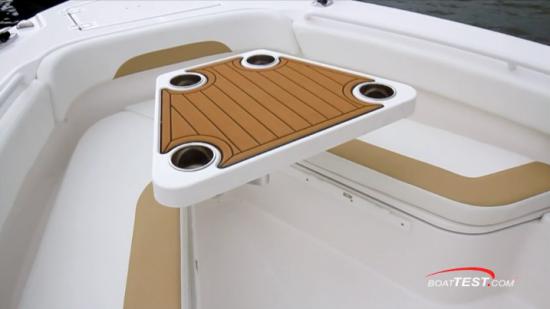

    EdgeWater 230CC bow table
    The bow table mounts to a side-mounted bracket.

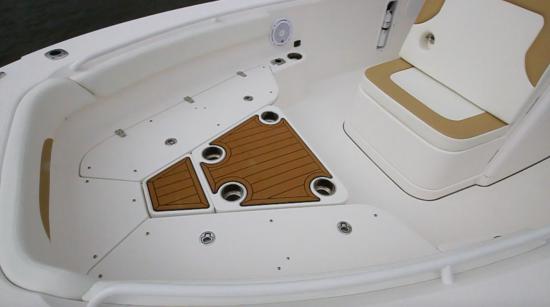

    EdgeWater 230CC filler
    When the table is lowered, an additional filler piece completes the forward casting deck. This is one of the most sturdy fill systems we have seen in class.

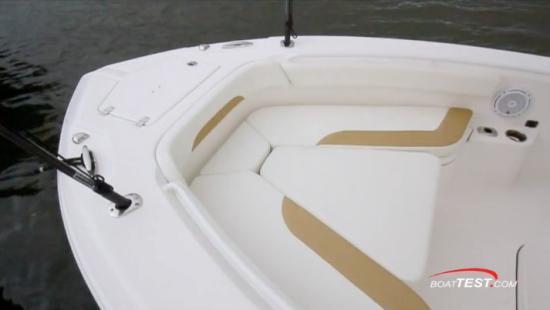

    EdgeWater 230CC table
    The table also can be lowered to serve as a sun pad with filler cushion.

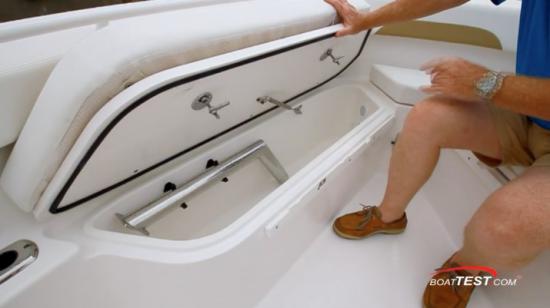

    EdgeWater 230CC stowage
    There’s dedicated stowage for the table’s pedestal base with a bracket in one of the lockers beneath the bow seating.

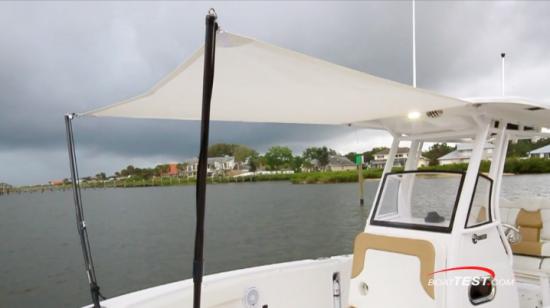

    EdgeWater 230CC carbon fiber
    Carbon-fiber poles mount in rod holders in the bow covering boards, and support a sunshade that stretches to the forward edge of the T-top (there’s another to provide relief to the stern area).

    The foredeck is finished in nonskid and has a pair of 6-½” pull-up cleats to manage the docklines, as well as separate port and starboard navigation lights. The anchor locker is beneath a hatch in the foredeck, and it has a channel forward out the front that allows the anchor line to run straight forward. The locker lid is held open with a gas-assist ram, to let the skipper deal with the anchor with both hands. There’s an athwarthships cleat in the locker right at the front edge, to make it easy to secure the rode, and a Danforth anchor hangs by its stock with its shank pointing downward, with bungees to hold the ends in place. An available windlass ($2,682) with forward controls can automate the anchor recovery process.

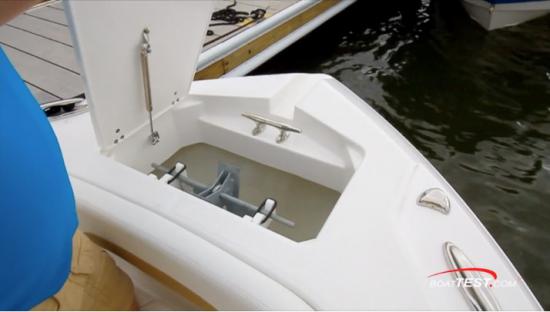

    EdgeWater 230CC foredeck anchor
    The foredeck anchor locker allows easy access to the rode.

    Performance

    The EdgeWater 230CC has a LOA of 22’8” (6.90 m), a beam of 8’6" (2.59 m), and a draft of 15” (38 cm) with the engine tilted up. With an empty weight of 3,900 lbs. (1,769 kg), half fuel, three people and test power, we had an estimated test weight of 5,347 lbs. (2,425 kg).

    EdgeWater 230CC running
    The EdgeWater 230CC has a slightly bow-high running attitude, as is proper.

    With the 300-hp Yamaha 4-stroke turning an 18T 15 ¼ Saltwater Series 2 propeller and running up to 5700 rpm, we reached our top speed of 51.1 mph. Best cruise was reached at 3500 and 28.5 mph. It was at that speed that the 9 gph fuel burn translated into 3.2 mpg and a range of 314 statute miles, all while still holding back a 10-percent reserve of the 110-gallon (416 L) total fuel capacity.

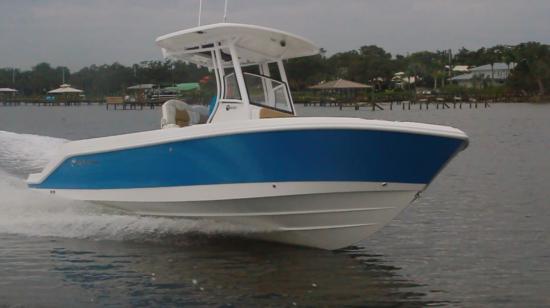

    EdgeWater 230CC running
    Note how the strakes on the EdgeWater 230CC knock down spray low on the hull to keep everyone dry on board.

    Acceleration

    With minimal bowrise, we accelerated to planing speed in 3.2 seconds, reached 20 mph in 5.7 seconds and 30 mph came and went in 9.4 seconds.

    EdgeWater 230CC outboard
    The EdgeWater 230CC had a level running attitude as she accelerated.

    Handling

    With calm water we were left with crossing the wake of our camera boat and found that she transitions with no pounding and a smooth re-entry. Her chines carry all the way to the bow to form spray rails creating a dry ride. Hard turns showed just a touch of ventilation on the prop, even trimmed all the way down, and no chine walk. Overall, she’s a fun boat to drive and she seems to like being driven hard, and we feel she’d do very well offshore in reasonable conditions.

    EdgeWater 230CC running
    On our test of the EdgeWater 230CC, we made our own excitement slicing through the camera boat’s wake, and she had a smooth re-entry and displayed no bad tendencies.

    Noteworthy Standard Features

    • • Single Piece Infusion (SPI) Structural System
    • • Retractable ski pylon
    • • Powder-coated leaning post, T-top frame, recessed bowrail, and grab rails
    • • Fiberglass hardtop
    • • Forward walk-in console with fiberglass liner
    • • Bow table
    • • Bow filler cushion
    • • Freshwater washdown
    • • Raw-water washdown
    • • Underwater blue LED lights
    • • Dedicated stern anchor locker

    Price

    $120,000 base price with 250-hp Yamaha F250 4-stroke outboard.

    Warranty

    Transferrable Lifetime Limited Warranty

    Observations

    Astute observers will note that the EdgeWater is particularly well-designed, tooled, and finished. The builder has packed a lot of functionality into 23’ (7.01 m), but not at the expense of well-crafted details. Items such as its in-gunwale rod racks, integral T-top supports in the console, the bow casting platform system, carbon fiber poles for awnings, and stern platform treatment, among others, demonstrate EdgeWater’s attention to detail.

    The company says that what “ultimately separates EdgeWater from Grady-White, Pursuit, Everglades, and Boston Whaler is our exclusive structural systems – Single Piece Infusion or SPI®. Weight is critical for superior hull performance and fuel economy, and SPI creates an incredibly strong, one-piece, unsinkable structure that can endure the most extreme stresses and adventures.”

    We should add that this EdgeWater is one of only three brands that we know of that will put in writing that their boats will float level if swamped.

    All of the above is costly, and EdgeWater shares that distinction with the other boats at the top of the center console pyramid.

    The design shows signs of evolution, with next-generation features and versatility built into a hull that runs smoothly on her variable deadrise hull.

    With a long list of standard features, the 230CC can be fitted out with upgrades that make sense for the way each owner will use the boat.

    Test Result Highlights

    • Top speed for the EdgeWater 230CC (2018-) is 51.1 mph (82.2 kph), burning 26.5 gallons per hour (gph) or 100.3 liters per hour (lph).
    • Best cruise for the EdgeWater 230CC (2018-) is 28.5 mph (45.9 kph), and the boat gets 3.2 miles per gallon (mpg) or 1.36 kilometers per liter (kpl), giving the boat a cruising range of 314 miles (505.33 kilometers).
    • Tested power is 1 x 300-hp Yamaha.

    Standard and Optional Features

    Systems

    Head: Portable Standard
    Trim Tabs Standard
    Washdown: Fresh Water Standard
    Washdown: Raw Water Standard

    Exterior Features

    Hardtop Standard
    Outlet: 12-Volt Acc Standard
    Swim Ladder Standard
    Swim Platform Standard
    Transom Door Standard
    Transom Shower Standard
