Brief Summary

Chaparral designed their 277 SSX to be open and spacious for easy entertaining and comfort, and a deep cockpit for safety. She has an exceptionally deep cockpit both forward and aft for safety and a dry ride. It is a deluxe model and competitive with any of the high-end sportboats on the market in terms of fit-and-finish and build execution.

However, it is what is below the waterline that makes this boat perform so well. The extended running surface, 22-degree deadrise at the transom, reverse chines, and pronounced running strakes all combine to make the Chaparral 277 SSX both solid and easy to manage.

Key Features

  • Glass-dash with twin Simrad NSS7 multifunction displays
  • Aft bench seating with reversible backrest that converts from full seating to a full sun pad
  • Dual battery setup with crossover switch
  • Enclosed fiberglass head compartment
  • Cockpit table with dedicated storage and side mounts in aft cockpit and bow
  • Premium stereo system with AM/FM, Bluetooth, auxiliary port, and digital display
  • Forward seating with storage and center insulated ice chest beneath
  • Helm and companion seating with exclusive seat levers for easy adjustments
  • Dedicated storage for a 36-quart carry-on cooler
  • Kevlar-reinforced hull laminate and a lifetime Limited Hull Warranty
  • Specifications

    Length Overall 27'
    8.23 m
    Beam 8' 6"
    2.59 m
    Dry Weight 5,500 lbs.
    2,495 kg
    Tested Weight 6,100 lbs.
    2,769 kg
    - Draft Up 23"
    58 cm
    - Draft Down 35"
    89 cm
    - Air Draft N/A
    Deadrise/Transom 22-degrees
    Max Headroom Open
    Bridge Clearance 8' 1"
    2.46 m
    Weight Capacity N/A
    Person Capacity N/A
    Fuel Capacity 80 gal.
    303 L
    Water Capacity 15 gal.
    57 L
    Length on Trailer N/A
    Trailer Weight N/A

    Prices, features, designs, and equipment are subject to change. Please see your local dealer or visit the builder's website for the latest information available on this boat model.

    Engine Options

    Std. Power Not Available
    Tested Power 1 x 350-hp 6.2 L Mercury
    Opt. Power 1 x 300-hp Mercury 6.2L 2.20 Bravo 3 Catalyst
    1 x 350-hp Mercury 6.2L 2.20 Bravo 3 Catalyst
    1 x 300-hp Mercury 6.2L DTS 2.20 Bravo 3 Catalyst
    1 x 350-hp Mercury 6.2L DTS 2.20 Bravo 3 Catalyst
    Three Mercury optional engines from 380-hp to 430-hp; Seven Volvo Penta optional engines from 300-hp to 430-hp

    Test Results - Change Measurement Unit

    RPM MPH Knots GPH MPG NMPG Stat. Mile NM dBa
    600 3.6 3.1 1.0 3.8 3.3 273 237.3 69
    1000 5.8 5.0 1.7 3.5 3.0 252 219.4 74
    1500 7.7 6.7 2.7 2.9 2.5 208 180.6 78
    2000 9.2 8.0 4.4 2.1 1.8 150 130.8 83
    2500 14.7 12.7 6.3 2.3 2.0 167 145.2 87
    3000 22.4 19.5 7.3 3.1 2.7 220 191.1 86
    3500 29.9 26.0 9.2 3.2 2.8 233 202.5 88
    4000 36.2 31.5 12.4 2.9 2.5 210 182.3 90
    4500 41.6 36.1 17.0 2.5 2.1 176 153.5 88
    5000 46.8 40.7 22.9 2.0 1.8 147 128.0 90
    5415 50.8 44.2 27.8 1.8 1.6 132 114.6 95
    600 237.3 439 5.80 3.79 1.62 69
    1000 219.4 406 9.30 6.44 1.49 74
    1500 180.6 335 12.40 10.22 1.23 78
    2000 130.8 241 14.80 16.66 0.89 83
    2500 145.2 269 23.70 23.85 0.98 87
    3000 191.1 354 36.00 27.63 1.32 86
    3500 202.5 375 48.10 34.83 1.36 88
    4000 182.3 338 58.30 46.94 1.23 90
    4500 153.5 283 66.90 64.35 1.06 88
    5000 128.0 237 75.30 86.69 0.85 90
    5415 114.6 212 81.80 105.23 0.77 95

    All fuel consumption numbers are the total for all engines in the boat. Speeds are measured with Stalker ProSports radar gun or GPS. Fuel consumption (gallons per hour) measured with Floscan digital fuel-flow meter or by on-board factory-installed diagnostic instruments. Range is based on 90% of published fuel capacity. Sound levels determined using Radio Shack digital decibel meter on A scale. 68 dBA is the level of normal conversation. Time to plane is measured from start of acceleration to formation of rooster tail behind boat.

    Performance Chart

    Performance Chart

    Acceleration Times & Test Conditions

    Time To Plane 3.6 sec.
    0 to 30 7.5 sec.
    Ratio N/A
    Props Bravo III 24P
    Load 2 persons, 3/8 load, no water, 50 lbs. of gear
    Climate 61 deg., 47 humid.; wind: 5-10 mph; seas: calm

    Captain's Report

    Contents of Report

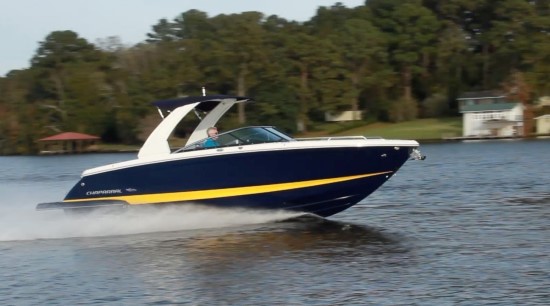

    Chaparral 267 SSX Running 1
    The test boat came with the optional Mercury 6.2 L 350-hp with Bravo 3 outdrive.

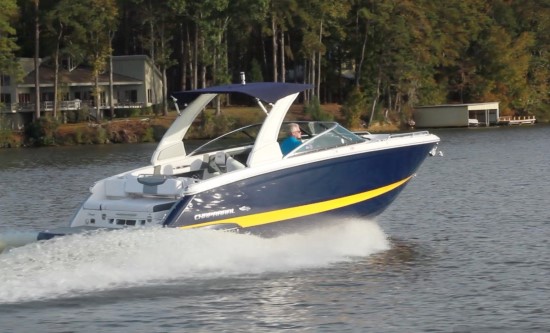

    Chaparral 267 SSX Optional Tower
    The tower shown is optional. By installing all the moving parts in the folding tower’s arch structure, Chaparral believes that it will be more reliable and easier to maintain.

    The Chaparral 277 SSX is a sporty pleasure craft designed for having fun adventures on the water in coastal waters and big inland lakes. With the open design and plush upholstered seating, it is readily apparent Chaparral intended the 277 SSX primarily for entertaining and socializing.

    She is designed and outfitted to appeal to owners looking for premium quality.

    Major Features

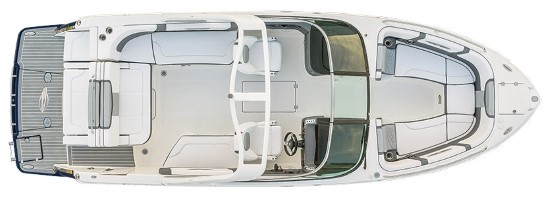

    Chaparral 267 SSX Overhead View
    From this overhead image, it is evident that Chaparral intended the 277 SSX to entertain a crowd, as well as to be a wake boat.
    • Advanced Helm. The twin Simrad 7” multifunction displays make up a glass-dash. The helm is well thought-out with switches logically arranged.

    • Multi-Density Foam Seating. The rich upholstery conceals multi-density foam that provides comfort and security.

    • Kevlar Reinforced Hull Laminate. With Kevlar reinforcement, Chaparral offers a Lifetime Limited Hull Warranty.

    • Reversible Aft Bench Seating. The aft bench offers forward-facing and aft-facing bench seating and can be converted to a sun lounge.

    • Helm and Companion Seating with Exclusive Levers. Both the helm and companion bucket seats adjust with unique levers built into the seat front. They alleviate the need to reach under the seat for adjustments.

    • Head Compartment. The standard head compartment comes with a Porta-Potti, freshwater sink, and an opening portlight with screen.

    • Wraparound Windshield. The wraparound windshield has a center opening walkthrough with a dual latch system and an air dam below for chilly morning runs.

    • Transom Grab Rail. The large stainless-steel grab rail on the transom has an integrated ski tow feature.

    • Cockpit Table. A cockpit table comes standard with dedicated storage and can be mounted on side mounts both in the aft cockpit or forward seating area.

    • LED Lighting. LED lighting in the cockpit, console storage, head compartment, navigational lighting, and engine compartment.

    • High Freeboard. This makes the 277 a fine boat to take offshore or to use on large inland lakes where a long fetch can create choppy conditions.


    Chaparral 267 SSX Running 2
    With the optional 350-hp Mercury 6.2 L engine driving a Bravo 3 outdrive, the Chaparral 277 SSX demonstrated solid performance.

    The Chaparral 277 SSX has a length overall of 27’ (8.23 m), a beam of 8’6” (2.59 m) and a draft of 35” (89 cm). With an empty weight of 5,500 lbs. (2,495 kg), 37% fuel, and two people on board, we had an estimated test weight of 6,100 lbs. (2767 kg).

    The Numbers. With a single 350-hp Mercury 6.2 L V8 engine turning a Bravo 3 outdrive with 24 pitch prop sets, the test boat reached a top speed of 50.8 mph at 5415 rpm. The best cruise came in at 3500 rpm which translated to 29.9 mph.

    At that speed, the 9.2 gph fuel burn converts to 3.2 mpg and a range of 233 statute miles, all while holding back 10% reserve of the test boat’s 80-gallon (303 L) total fuel capacity.

    The test boat reached planning speed in an average of 3.6 seconds, accelerating to 20 mph in 5.4 seconds, and continued through to 30 mph in 7.5 seconds.

    Accelerating Times and Test Conditions

    Time to Plane: 3.6 sec.

    0 to 20: 5.4 sec.

    0 to 30: 7.5 sec.

    Load: 2 persons, 37% fuel capacity, no water, 50 lbs. of gear

    Conditions: 61-degrees, light wind (5-10 mph), no chop

    Power Options

    Chaparral has 14 engine options available, ranging from 300 to 430-hp. Both MerCruiser and Volvo Penta engines are available. All engines have dual prop lower units.

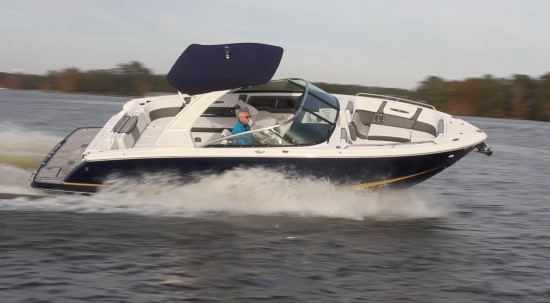

    Chaparral 267 SSX Running 3
    The Chaparral branded “Extended V-Plane Hull” offers solid handling characteristics, even when pushed.

    The test boat performed exceptionally well as we have come to expect from the Chaparral brand. It takes an experienced operator to hold her in check since it does everything so gracefully, it is easy to let her romp. But, no matter how heavy-handed or aggressive the operator may get, she keeps her good manners.

    High-speed turns are met with a gentle roll and just enough slide to grab the water while not causing passengers and gear to be thrown to one side. She does not “hop” in tight turns. Spray is kept to the sides by the chines keeping the ride dry.

    Continuing the turn, there is virtually no chine walk, and even with the trim of the outdrive maintained, no prop ventilation was experienced. It is just flat-out an all-around good handling boat.

    Boat Inspection

    Extended V-Plane Hull

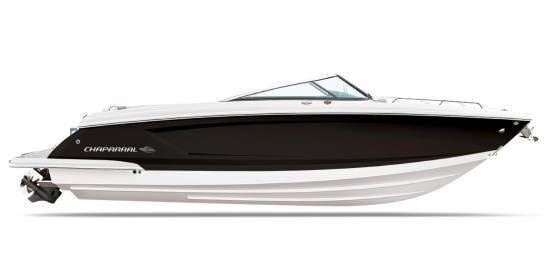

    Chaparral 267 SSX 22-Degree Deadrise
    Lifting strakes and pronounced chine accentuates the Chaparral 277 SSX’s 22-degree deadrise at the transom, creating enhanced performance and handling.

    Chaparral’s design utilizes an extended running surface, allowing the "V-Plane" hull design to continue aft of the transom. This creates additional stability and buoyance under nearly all driving conditions. It reduces the bow rise on take off and helps get the boat on plane faster. It also permits an attractive stern design with a reverse transom sheer and tumble home in the stern quarters.

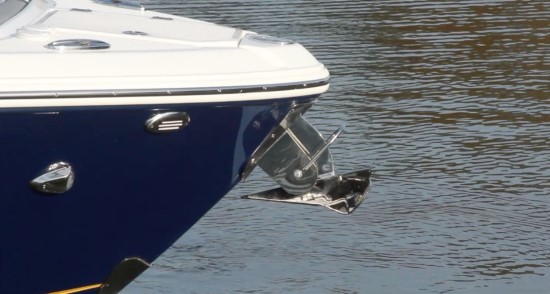

    Chaparral 267 SSX Anchor and System
    The test boat came complete with optional stainless-steel anchor and through-the-stem roller system. The SS hull guard is standard. The polished SS anchor is optional.

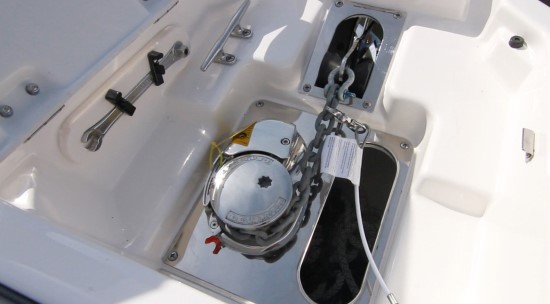

    Chaparral 267 SSX Optional Windlass
    The optional windlass mounts over the anchor rode access. Note the windlass handle mount to port for manually operating the windlass.

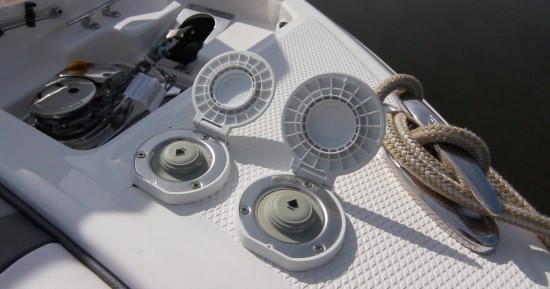

    Chaparral 267 SSX Windlass Controls
    There are windlass controls mounted on the foredeck and additional controls are at the helm.

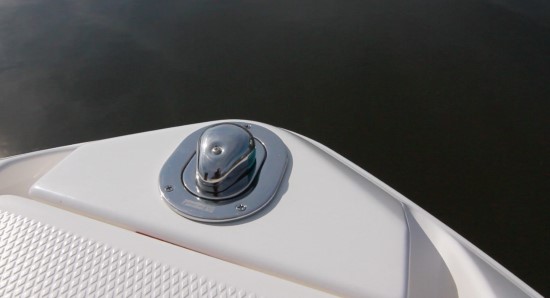

    Chaparral 267 SSX Bow Navigation Light
    The stainless-steel flip-over bow navigation light is an LED which requires less energy, emits less heat, and lasts longer than traditional incandescent lights.
    Chaparral 267 SSX Down Position
    Shown in the down position, the bow navigation light avoids snags and won’t stub a toe.
    Chaparral 267 SSX U-shaped Bow Seating
    The new Chaparral 277 SSX comes with the traditional U-shaped bow seating with back rests on the coaming for passengers seated facing inboard or can be used as two loungers on either side. Note how deep the seating is.
    Chaparral 267 SSX Contoured Seating
    The forward drink holders (yellow arrow) and speakers (green arrow) are recessed to be out of the way when seated. The seats are contoured, something we rarely see in class.

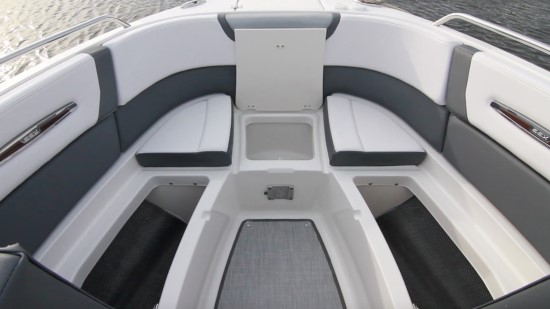

    Chaparral 267 SSX Forward Bow Seats
    The forward bow seats open towards the stern and stay open for hands-free access to the storage underneath. Forward in the center is an insulated ice chest making refreshments easy to reach. It is a self-draining overboard compartment.

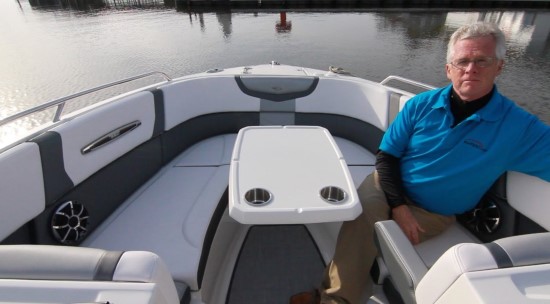

    Chaparral 267 SSX Standard Cockpit Table
    The standard cockpit table utilizes a side mount that keeps the pedestal out of the way of knees. Note the armrest on the lounge seating.

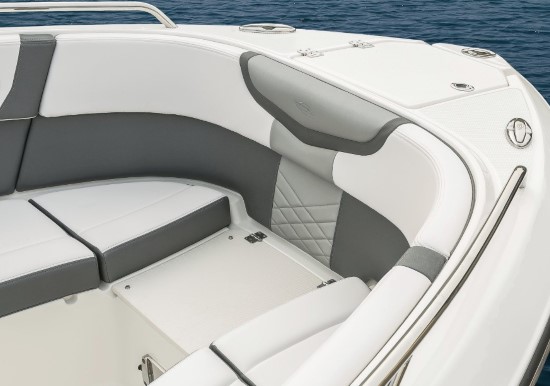

    Chaparral 267 SSX Removable Cushion
    Remove the cushion on the centerline seat and step on the bow and off the boat when bow-in mooring.

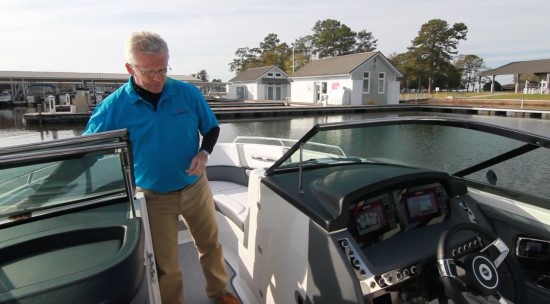

    Chaparral 267 SSX Wraparound Windshield
    The wraparound windshield opens to allow egress between the forward seating and the aft cockpit.

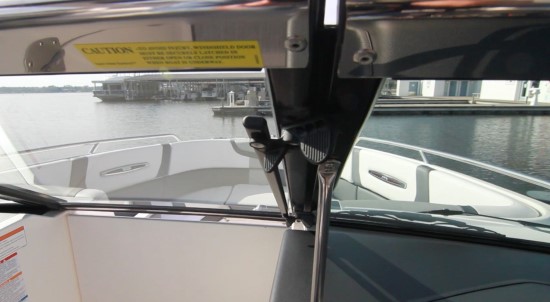

    Chaparral 267 SSX Locked Windshield
    The windshield locks in place with two latches that Chaparral has mechanically connected. That allows both to be locked with a single turn of the upper latch, and without requiring the operator to reach down and forward, something that can be hard to do.
    Chaparral 267 SSX Helm Door
    Flush with the helm console is a door that opens to create an effective air dam for operating in less than ideal weather conditions.

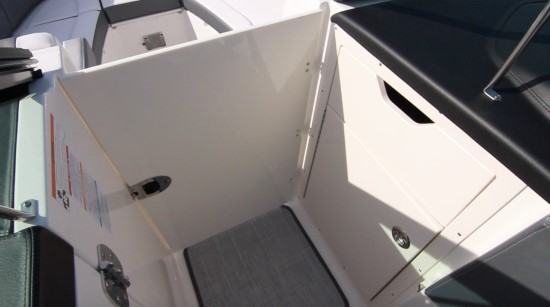

    Chaparral 267 SSX Air Dam
    On the Chaparral 277 SSX the air dam does not double as the under-the-helm storage access door.
    Chaparral 267 SSX Upper Storage Drawer
    Behind the air dam door is an upper storage drawer and a lower access door to the storage beneath. This makes far better use of the space than just having an open compartment.

    Port Console

    Chaparral 267 SSX Vinyl-Wrapped Top
    The stitching in the vinyl-wrapped port console top gives it an automotive quality. It has a recessed compartment for keeping incidentals in place.

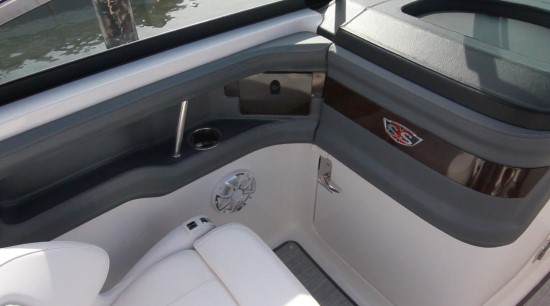

    Chaparral 267 SSX Handle and Holder
    Recessed under the gunnel is a stainless-steel grab handle and cup holder for the companion seat passenger, as well as a lockable glovebox.

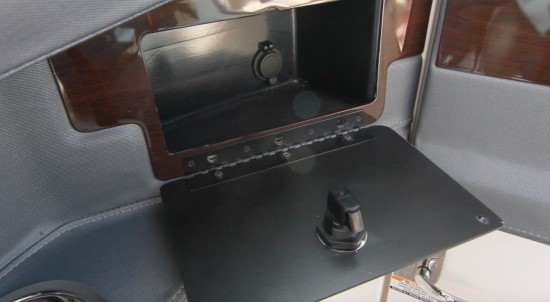

    Chaparral 267 SSX Globebox
    The glovebox has a 12V outlet, perfect for phone chargers or other devices.

    Head Compartment

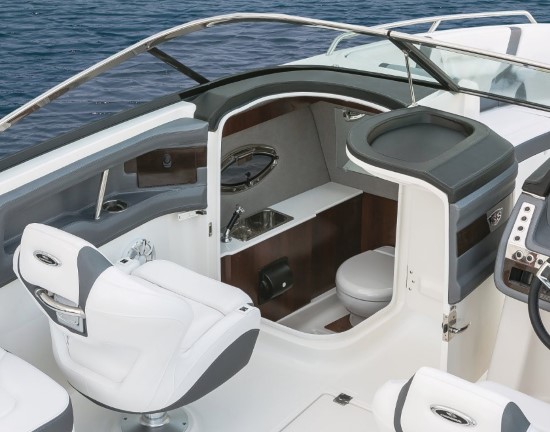

    Chaparral 267 SSX Head Hatch
    The hatch to the head compartment is cutaway overhead to make entering and exiting easy.
    Chaparral 267 SSX Sink and Portlight
    Inside the port console is a full head with a stainless-steel freshwater sink and opening portlight that has a screen.

    The Chaparral 277 SSX comes standard with a Porta-Potti. An optional electric head with a holding tank or an electric head with a holding tank and overboard discharge is available from Chaparral.

    Federal law states that untreated human waste can NOT be discharged in inland or coastal waters. Sewage for a portable toilet or a holding tank (Type III MSD) cannot be discharged unless the vessel is in the ocean more than three miles offshore. Holding tanks and portable toilets can be emptied at approved pump-out stations or by approved pump-out vessels.

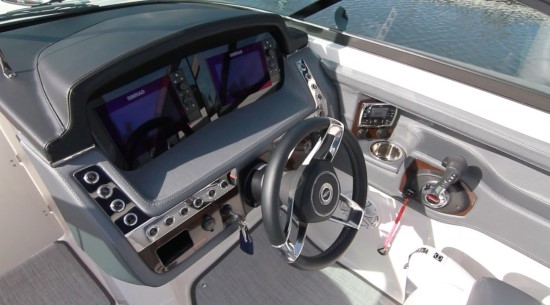

    Chaparral 267 SSX Helm Organization
    The helm is logically organized and reflects Chaparral’s experience designing boats for knowledgeable boating enthusiasts.

    The accessory switches are arranged sensibly and within easy reach for the operator. The stitched vinyl-wrapped helm console gives the helm an automotive quality. The standard leather-wrapped steering wheel (which comes with a protective cover) is mounted on a tilt base and is rack and pinion-style steering.

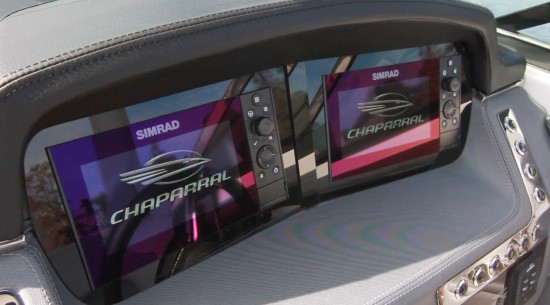

    Chaparral 267 SSX Two Displays
    The Chaparral 277 SSX helm features a glass-dash with twin Simrad NSS7 EVO3 chartplotter/multifunction 7” displays.
    Chaparral 267 SSX Horn Button
    The horn button (yellow arrow) is at the very top of the starboard switch panel.

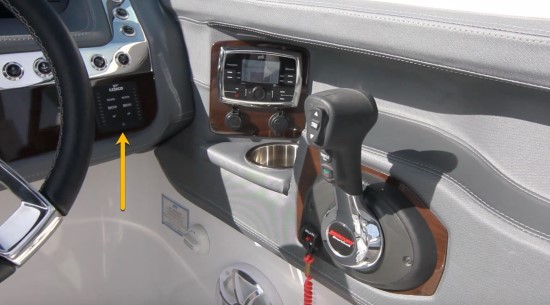

    Chaparral 267 SSX Trim Tabs
    The optional trim tabs with indicators are located at the top of the shift and throttle throw. Note the stereo controls and drink holder are recessed below the stitched vinyl-wrapped gunnel.

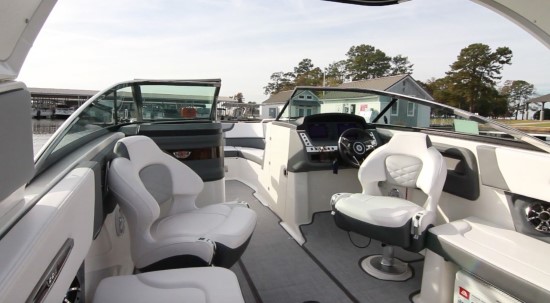

    Chaparral 267 SSX Helm and Companion
    The helm seat and companion seat are fully adjustable and have multi-density foam to provide comfort and security. The backs are open for aeration.
    Chaparral 267 SSX Seat Adjustment Systems
    The bucket seats adjust with levers built into the sides, making repositioning the seats remarkably easier when seated or standing. We think they are one of the best seat adjustment systems in the industry.

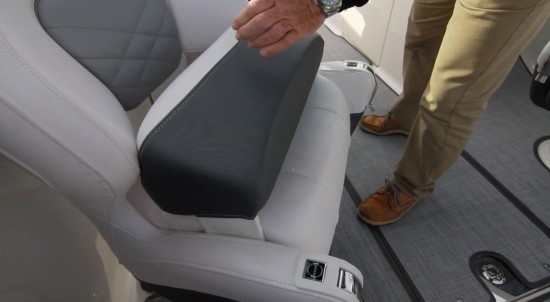

    Chaparral 267 SSX Fold-up Bolsters
    Both the helm seat and the companion seat have fold up bolsters that raise the occupant above the windshield.

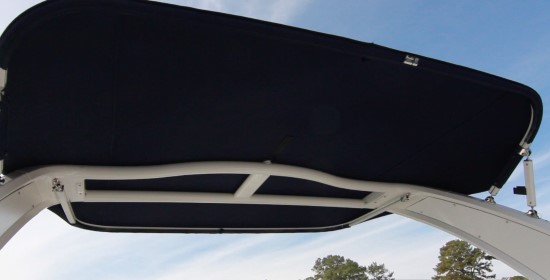

    Chaparral 267 SSX Bimini Top
    The optional tower has a Bimini-style top.

    Chaparral has standardized the tower arches, making the cross-over custom to each model.

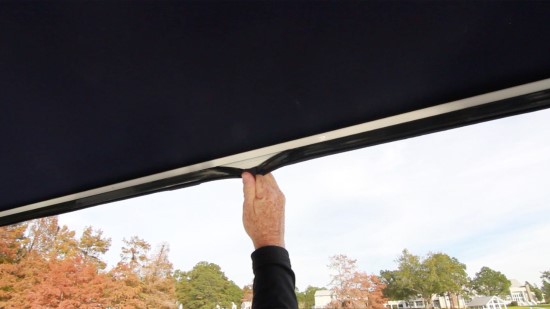

    Chaparral 267 SSX Channel
    The Bimini top fits by pressing it into a channel in the support arm, eliminating the nuisance and corrosion that occurs with snaps.

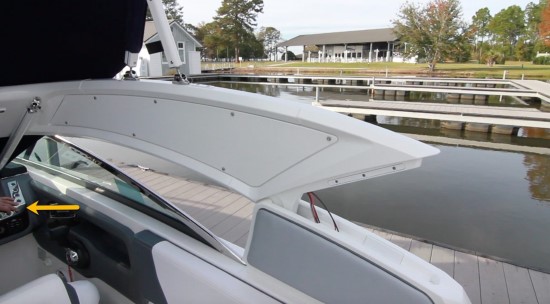

    Chaparral 267 SSX Lowering Tower
    The tower lowers with the touch of a button (yellow arrow). All the mechanicals are in the tower’s supports, easy for access and maintenance.

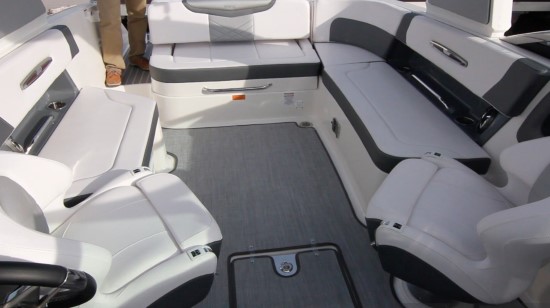

    Chaparral 267 SSX Aft Cockpit Seating
    The aft cockpit seating, with its port side L-shaped bench and starboard side bench, is designed to be highly social. Note the recessed grab rails, speakers, and drink holders as well as the side-mount for the cockpit table.

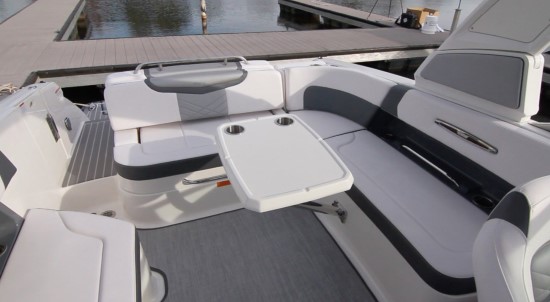

    Chaparral 267 SSX Pedestal
    Shown is the cockpit table in place with the pedestal mounted upright on the port side bench seat.

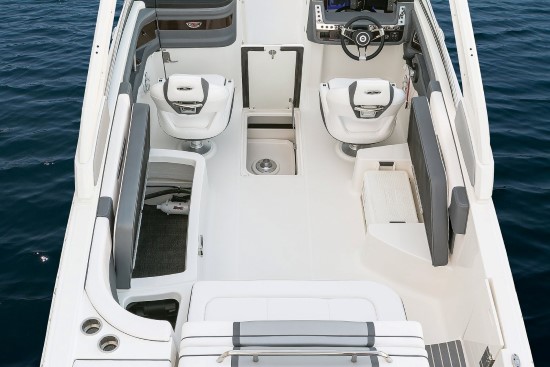

    Chaparral 267 SSX Spacing
    Chaparral has taken advantage of the spaces below the deck and under the aft cockpit seating.
    Chaparral 267 SSX Cooler
    Chaparral made designated storage for the 36-quart carry-on cooler under the starboard side bench seating.

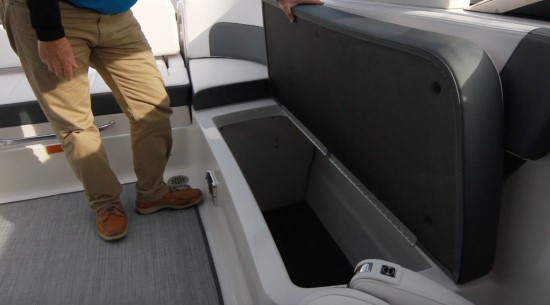

    Chaparral 267 SSX Additional Bench Storage
    Under the port bench seating is additional storage. A good location for the many life vests that a crowd of family and friends will require.

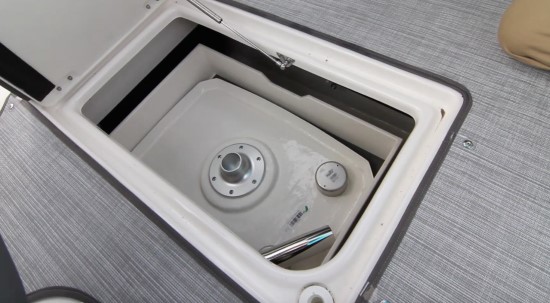

    Chaparral 267 SSX Storage Drawer
    Shown is the dedicated in-deck cockpit table and pedestal storage drawer that slides under the deck. The deck hatch lifts with a gas-assist strut.

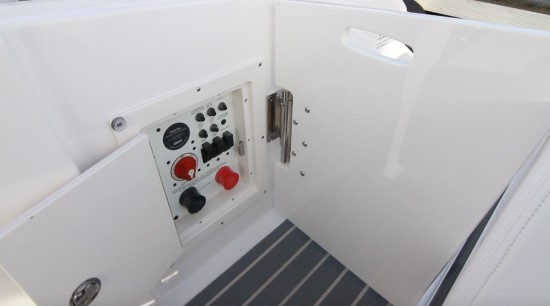

    Chaparral 267 SSX Walkthrough Door
    The Chaparral 277 SSX has a walkthrough door that conceals the access to the battery switch and main breakers. Note the red and black caps that cover the jump start system.

    Walkthrough. The walkthrough gate from the stern to the cockpit measures 15” wide.

    Convertible Aft Bench Seating

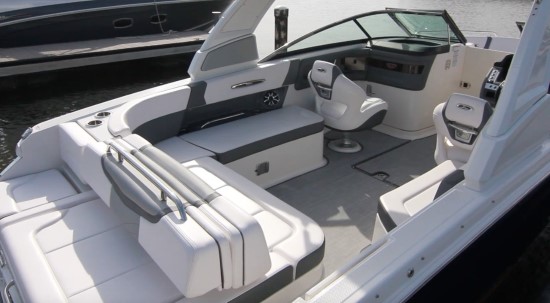

    Chaparral 267 SSX Aft-Facing Bench
    Forward-facing aft bench seating is complemented with aft-facing bench seating perfect for watching swimmers or preparing for water sports.
    Chaparral 267 SSX Sun Pad
    The seat backs split to form a large sun pad and lounge.

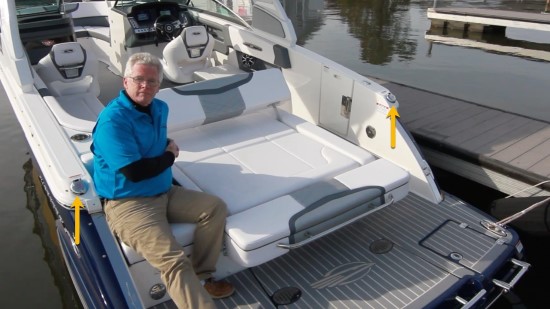

    Chaparral 267 SSX Dual Fuel Fills
    A rear-facing jump seat is built into the transom for additional seating when the sun pad is deployed. The arrows indicate dual fuel fills.

    Dual Fuel Fills. Chaparral went the extra-mile with two fuel fills mounted port and starboard on the aft-most gunnels, permitting easier decision-making when approaching the fuel dock. They both lead to a single tank.

    Engine Compartment

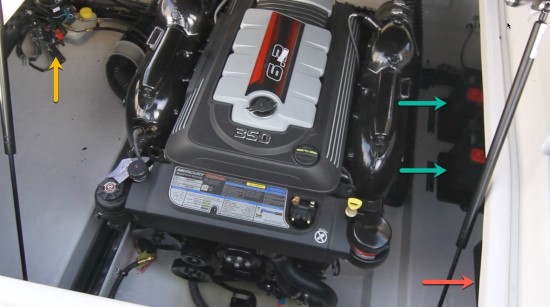

    Chaparral 267 SSX Engine
    The aft bench seating lifts with the aid of gas-assist struts. It provides copious engine access with check points within reach. To the starboard is the power steering pump (yellow arrow). On the port side is the house and starting batteries (green arrows) as well as the 15-gallon (56.8 L) freshwater tank (red arrow).

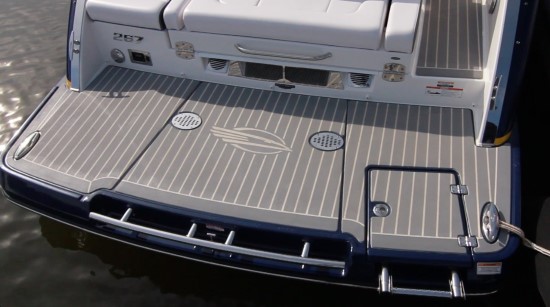

    Chaparral 267 SSX Swim Platform
    The swim platform on the Chaparral 277 SSX is 33” (83.8 cm) fore and aft.

    Swim Platform. The covered re-boarding ladder with flush lift-and-lock latch reduces toe-busting tripping hazards. The integrated grab rail is a feature that is convenient for swimmers. There is also a stereo remote built into the transom. The test boat had the optional Plasdeck swim platform mat that provides excellent anti-skid characteristics and the optional pull-up cleats add function without adding additional tripping hazards.

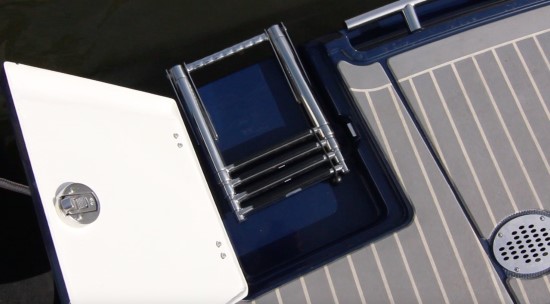

    Chaparral 267 SSX Four-Step Ladder
    Under the deck hatch is a four-step re-boarding ladder.

    Optional Trailer

    Chaparral 267 SSX Axle and Trailer
    Chaparral offers an optional tandem axle and custom painted trailer with submersible LED lights.


    The 2018 Chaparral 277 SSX comes with a Limited Lifetime Warranty on the hull and a five-year Limited Warranty on factory installed components. The drive line (motor and outdrive) is backed by a warranty by the particular manufacturer.

    We recommend that consumers read the fine print of all boat and engine warranties.



    Options to Consider

    • • EFX sports tower with Bimini top

    • • Colored hull

    • • Electric head with holding tank and overboard discharge

    • • Forward seating filler cushion

    • • Stainless-steel transom shower

    • • Windlass with 200’ (61 m) of rode and 15’ (4.57 m) chain, through-the-stem anchor roller system and polished stainless-steel anchor

    • • Trim tabs with indicator lights

    • • Wetsounds System stereo upgrade


    The overall design and execution of the 277 SSX is indicative of Chaparral’s team possessing a clear understanding of what their owners want in a mid-size bowrider day-boat. With the latest technology, comfortable seating, and innovative design, along with solid performance and handling, the Chaparral 277 SSX does not leave much to ask for.

    The aft bench seating and generous cockpit seating make it easy to entertain a crowd. The large swim platform provides a functional venue for enjoying the water and participating in watersports.

    The superlative ride and unflappable turning creates confidence for the operator. Combined with the luxurious feel and features, the Chaparral 277 SSX becomes a top choice for those seeking good times with friends and family on the water in a premium vessel.

    Test Result Highlights

    • Top speed for the Chaparral 277 SSX (2019-) is 50.8 mph (81.8 kph), burning 27.8 gallons per hour (gph) or 105.22 liters per hour (lph).
    • Best cruise for the Chaparral 277 SSX (2019-) is 29.9 mph (48.1 kph), and the boat gets 3.2 miles per gallon (mpg) or 1.36 kilometers per liter (kpl), giving the boat a cruising range of 233 miles (374.98 kilometers).
    • Tested power is 1 x 350-hp 6.2 L Mercury.

    Standard and Optional Features

    Marine Electronics

    GPS/Chart Standard


    CD Stereo Standard
    Head: Fixed Standard
    Shore Power Standard
    Trim Tabs Optional
    Windlass Optional


    Refrigerator Standard

    Exterior Features

    Ice Chest Standard
    Swim Ladder Standard
    Swim Platform Standard
    Transom Door Standard
    Transom Shower Optional


    Bimini Top Standard
    Cockpit Cover Optional


    Full Warranty Information on this brand coming soon!

    See the PRICE by becoming a BoatTEST member.
    (It's quick and FREE!)
