Brief Summary

Aviara, a new boat line and brand created by the folks at MasterCraft, is intended for people who are aging out of tow sports but still want a dayboat to enjoy the water with their friends in a classy, luxurious venue. Aviara has gotten the jump on virtually all U.S. boat builders in producing a new style of day boat for the American market. The first model is called the AV32 and she sets the pace and design theme for other models in different sizes to come. She has a high-end luxury build where no cost was spared to produce a premium boat, and her style is on the cutting edge of what is taking Europe by storm.

Key Features

  • Hatchet bow
  • Open transom stern
  • Premium sound system
  • Stadium seating
  • Ilmor engines
  • Head compartment
  • Specifications

    Length Overall 32' 6"
    9.93 m
    Beam 10’ 4”
    3.16 m
    Dry Weight 12,000 lbs.
    5,443 kg
    Tested Weight 13,408 lbs.
    6,082 kg
    - Draft Up 1’ 11”
    0.33 m
    - Draft Down 2’ 6”
    0.79 m
    - Air Draft N/A
    Deadrise/Transom 20 deg.
    Max Headroom open
    Bridge Clearance N/A
    Weight Capacity N/A
    Person Capacity N/A
    Fuel Capacity 166 gal.
    628 L
    Water Capacity 30 gal.
    113.6 L
    Length on Trailer N/A
    Trailer Weight N/A

    Prices, features, designs, and equipment are subject to change. Please see your local dealer or visit the builder's website for the latest information available on this boat model.

    Engine Options

    Std. Power 2 x Mercury Verado 300-hp
    Tested Power 2 x 380-hp Ilmor 6.0L MPI
    Opt. Power 2 x Mercury Verado 350-hp

    Test Results - Change Measurement Unit

    RPM MPH Knots GPH MPG NMPG Stat. Mile NM dBa
    650 3.7 3.2 1.6 2.4 2.1 357 310.1 62
    1000 5.9 5.1 2.9 2.0 1.8 301 262.1 68
    1500 8.2 7.1 5.3 1.6 1.3 232 201.7 74
    2000 9.9 8.6 9.7 1.0 0.9 152 132.6 78
    2500 11.6 10.1 14.3 0.8 0.7 121 105.4 81
    3000 14.2 12.3 20.5 0.7 0.6 103 89.9 84
    3500 31.3 27.2 26.4 1.2 1.0 177 153.8 85
    3700 34.1 29.7 25.1 1.4 1.2 203 176.8 84
    4000 38.4 33.4 30.4 1.3 1.1 189 164.1 86
    4500 44.4 38.6 36.5 1.2 1.1 182 157.9 85
    5000 48.9 42.5 47.1 1.0 0.9 155 134.9 87
    5600 54.9 47.7 59.9 0.9 0.8 137 119.1 89
    RPMNMKMKPHLPHKPLdBA
    650 310.1 575 6.00 6.06 1.02 62
    1000 262.1 484 9.50 10.98 0.85 68
    1500 201.7 373 13.20 20.06 0.68 74
    2000 132.6 245 15.90 36.72 0.43 78
    2500 105.4 195 18.70 54.13 0.34 81
    3000 89.9 166 22.90 77.60 0.30 84
    3500 153.8 285 50.40 99.93 0.51 85
    3700 176.8 327 54.90 95.01 0.60 84
    4000 164.1 304 61.80 115.08 0.55 86
    4500 157.9 293 71.50 138.17 0.51 85
    5000 134.9 249 78.70 178.29 0.43 87
    5600 119.1 220 88.40 226.75 0.38 89

    All fuel consumption numbers are the total for all engines in the boat. Speeds are measured with Stalker ProSports radar gun or GPS. Fuel consumption (gallons per hour) measured with Floscan digital fuel-flow meter or by on-board factory-installed diagnostic instruments. Range is based on 90% of published fuel capacity. Sound levels determined using Radio Shack digital decibel meter on A scale. 68 dBA is the level of normal conversation. Time to plane is measured from start of acceleration to formation of rooster tail behind boat.

    Performance Chart

    Performance Chart

    Acceleration Times & Test Conditions

    Time To Plane 4.1 sec.
    0 to 30 11.7 sec.
    Ratio N/A
    Props 26p bravo 3
    Load 4 persons, 5/8 fuel, no water, 50 lbs. of gear
    Climate 75 deg., 60 humid; wind: 10-15 mph; seas: 1
    Elevation Sea Level

    Captain's Report

    Contents of Report

    Mission

    The Aviara AV32 fills a gap in the marketplace not so much in size but in style, features, and general boating ambience. The design team at MasterCraft, we’re told, did years of market research and focus groups to find out what people were looking for that just couldn’t be found on other boats. The boat is intended for MasterCraft owners who have done tow sports and are looking for an elegant boat with which to entertain their family and friends in a day boating experience.

    Aviara AV32
    The AV32 from Aviara brings a lot of out-of-the-box thinking to a layout design making an interestingly functional platform.

    Features Inspection

    Swim Platform

    Let’s start our features inspection on the swim platform because this area just offers so much utility and function. First of all, it comes out to 3’10” (1.17 m) and it’s full beam. You can see clearly it extends past the walkthrough to the cockpit. There’s a concealed four-step reboarding ladder over to the starboard side.

    But most importantly, it extends far beyond the sterndrive lower unit and props. This is an important safety factor, even though engines should always be shut off when swimmers are in the water astern.

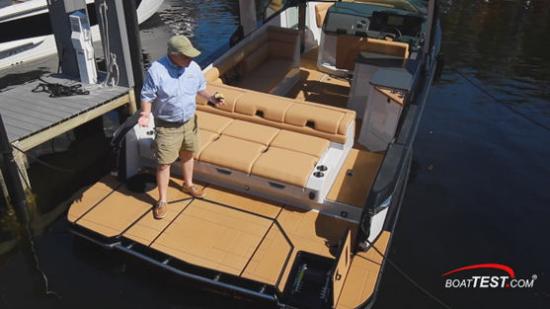

    Aviara AV32 swim platform
    Notice how the swim platform extends well past the side bulwarks making it a true full-beam platform.

    Underwater Teak Beach. Additionally, underneath the platform there’s an electrically actuated swim step that comes out from beneath the platform. It allows the area to serve as a private beach and has about 1,000 lb. (453.59 kg) capacity. The grabrail across the trailing edge of the platform is great for swimmers to hang on to.

    The entire platform is fitted with SeaDek matting in a random tile layout pattern, and that is carried through to the rest of the boat. It is soft on bare feet.

    9” (22.86 cm) pull-up cleats are at both sides and they’re up high out of the trip zone. And this is the first of three to each side. They come in either brushed aluminum or black. A hot and cold shower is available.

    Aviara AV32
    The electrically actuated swim step converts the swim platform into a private beach.

    Seating Area

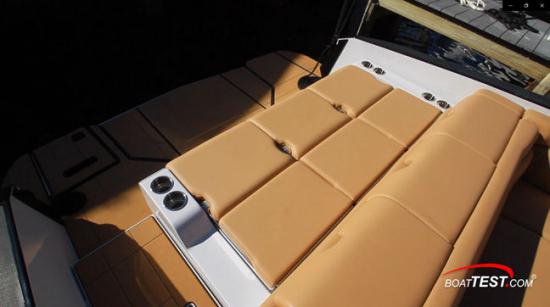

    Aviara AV32 sun pad
    The sun pad is a welcome addition to any boat, and this one is triple wide.

    Aft Seating. Just ahead is a sun pad that measures 34” x 68” (86.36 cm x 172.72 cm) and we can also convert this into seating. Flush seatbacks ratchet up into position just like a regular chaise lounge does, to form three-across aft-facing seating. Underneath, there’s storage beneath each one of these seats, and the storage compartment includes drains that lead into the bilge. Beverage holders are at both sides of the seat and there’s a transom mounted remote control for the stereo.

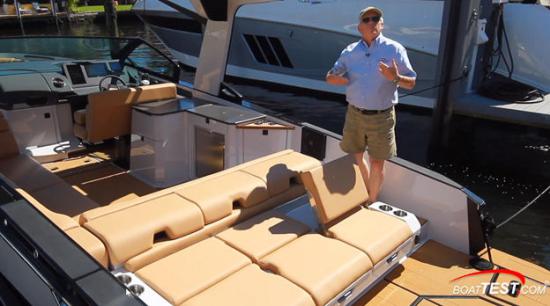

    Aviara AV32 seat back
    The seat back can be put at several different angles and all three are independent.

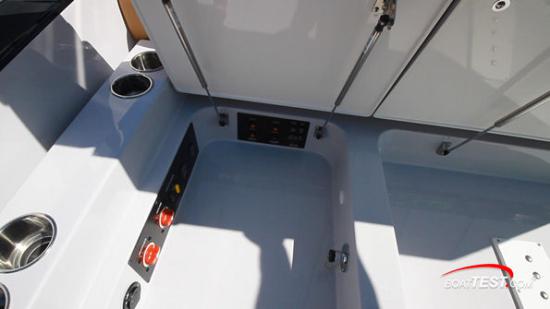

    Aviara AV32 battery switches
    To the port side of the storage are the main battery switches and the breaker panel.

    Clever Seating Included

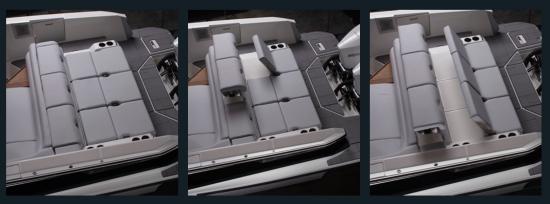

    In addition to the conversion to the aft-facing seating, the AV32 also includes additional stern seating. Most boats will have flip seatbacks, so that we can sit forward facing or aft facing, but not both at once. Aviara’s got a little bit of a different take on it; pull-up barstool style seating that allows us to sit facing aft or forward, while people are still in the sun pad seats or sitting in the cockpit. All upholstery is “Cool Feel,” which resists heat from the continual onslaught of the sun, according to the manufacturer.

    Aviara AV32 seats
    Three clever pedestal seats lift to add to the stern’s functionality, and the volume of seating. These come with either gas-assist or electric models. Notice also the seat back lifted into position. It is like stadium seating and is a good place to watch fireworks while the Ilmor propulsion systems holds the boat in position.

    Cockpit

    As we enter the cockpit, there’s a 6” (15.24 cm) step and notice that there is a recessed area in the bulwarks so we can have an optional gate. Also, the entryway is angled so that we’re not impeding on the available seating and we don’t have to ask people to move out of the way in order to enter the cockpit area.

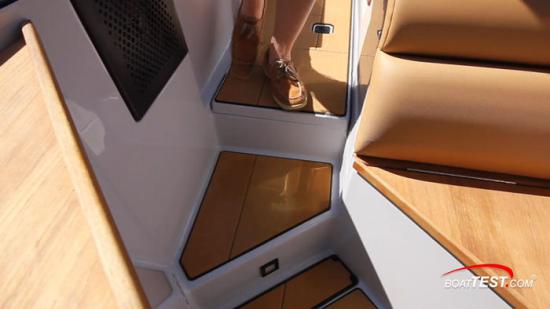

    Aviara AV32 entry
    With an angled entry, Aviara kept the seating and added more room to enter the cockpit.

    Cockpit seating consists of an L-shaped settee wrapping around the stern and port-hand side. Recessed into the bulwarks are five stainless steel beverage holders mounted in teak or solid surface material, aluminum grab handles, speakers, and there’s USB connectivity just ahead. An expandable, triangular table can be put on a side mount pedestal to increase the area’s functionality.

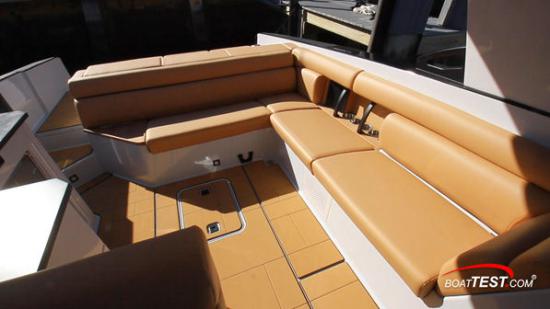

    Aviara AV32 l shaped seating
    L-shaped seating takes advantage of the full volume of this spacious cockpit. A side-mount pedestal table can be added and it’s expandable.

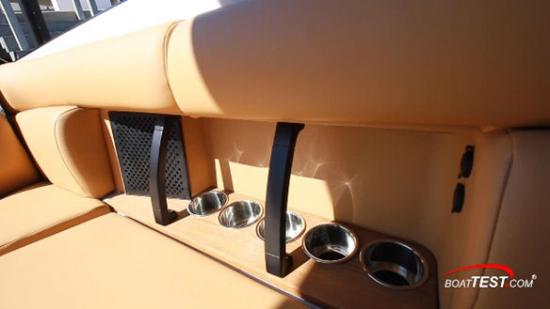

    Aviara AV32 beverage holders
    No less than five beverage holders are recessed into the bulwarks along with grab handles, a speaker, and USB connectivity.
    Aviara AV32 cafe table
    A side mount square café table can be used for two people having cocktails, and…

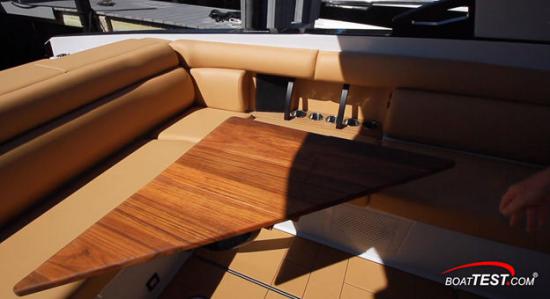

    Aviara AV32 table
    …folds out to make into a triangular tale for a picnic or extra guests.

    Entertaining Includes Beverages

    Directly across is a wet bar that includes a sink with bottle storage alongside that’s tall enough to hold wine bottles. Underneath, there’s a pullout cooler, a refrigerated drawer, and just above that is a utility drawer. There’s a trash receptacle on the side and on the corner is another piece of teak with three stainless steel beverage holders.

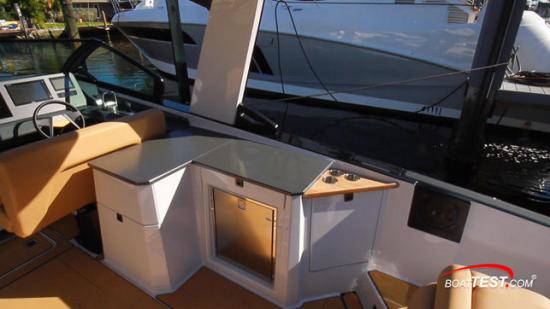

    Aviara AV32 wet bar
    The wet bar is an integral component to any entertainment venue and this one is full-featured.

    Protection Overhead

    The entire cockpit is under the protection of the hardtop overhead that runs between 7’ (2.13 m) and 7’3” (2.21 m) off the deck. It includes LED lighting, RGB lights so we can make them any color of the spectrum we want, and aft-facing speakers connected to the Klipsch home-theater quality sound system. The hardtop is supported with stylized uprights that match the contours of the window by design, and that’s only broken just behind the side windows so we can reach the midship cleat.

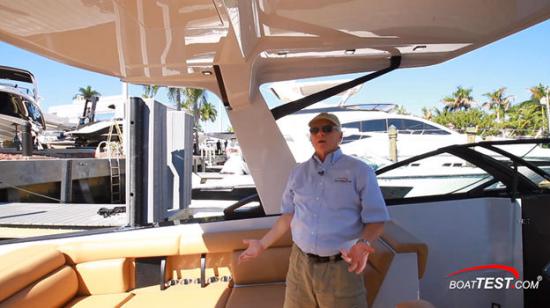

    Aviara AV32 hard top
    The hardtop comes standard, covers the cockpit with a cantilevered design to eliminate unsightly supports forward. A full canvas enclosure with curtains and bow cover is an option and probably a good idea for cool evenings or rainy days.

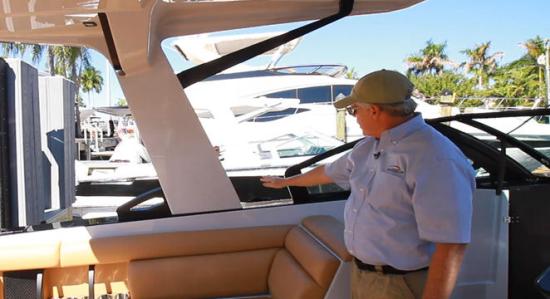

    Aviara AV32 window
    Rather than carry the windows further back, Aviara added this space to allow easier access to the midships cleat.

    Aft There are Three Extended Shade Options: An electrically actuated shade, a manually actuated shade, or a canvas that is attached to the trailing edge of the hardtop and supported by carbon fiber stanchions. That third option can also be repeated up at the bow.

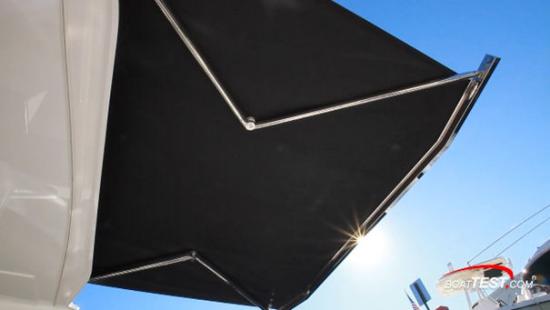

    Aviara AV32 canvas
    This electrically actuated shade is one of three options for sun protection that extends from the hardtop.

    Sound System

    We don’t normally comment on sound systems, but this one stands out from the rest because it is truly a premium system. Audiophiles will recognize the name Klipsch and the AV32 is outfitted with a Klipsch Audio system that will put most home systems to shame, and its standard equipment. The boat is fitted with eight 8.5” (21 cm) full range speakers and two 11” (27.8 cm) subwoofers.

    The speakers are driven by two Bongiovi Digital Power Station amplifiers putting out 1600 Watts. The 10” touchpad at the helm controls which of three modes of sound to select given the activity at the time–drive, tow, or chill.

    Bow

    We access the bow from a port-side companionway which is 21” (53.34 cm) at it’s narrowest. There is the usual air dam and a closing walkthrough windshield. As for seating, there is another L-shaped seat fully forward and a double-wide seat forward facing.Aviara AV32 windshield

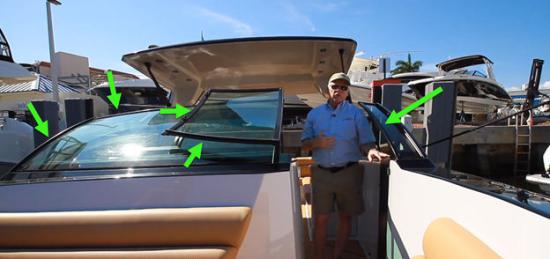

    The black windshield is made out of Billet aluminum, and note the compound curve to the tempered windshield glass.

    A filler cushion adds yet another seat and a pedestal table can be pulled out of dedicated storage. Again, recessed bulwarks have the beverage holders mounted in teak, speakers, and USB connectivity. Just above are nicely stylized grab handles.

    Aviara AV32 bow
    Wraparound seating and another seat ahead of the console maximize the bow space. A filler adds still another seat to the starboard side.

    Now of course, no dayboat worth its salt would be anything without having a functional head compartment, and this one is not only functional, it’s stylish as well. It’s located just to the port side of the helm and down two steps.

    The head compartment has 5’9” (1.75 m) of overhead clearance. There’s storage over to the starboard side, a ceramic toilet with an electric flush and holding tank, and a Corian counter with a sink.

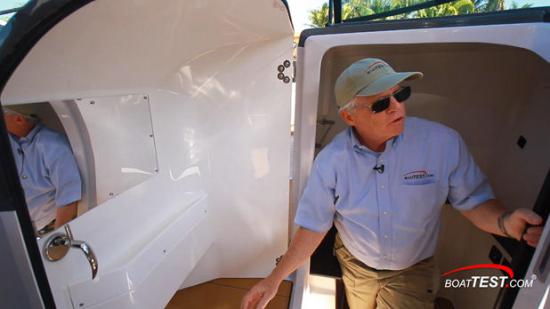

    Aviara AV32 head
    The head compartment is among the roomiest we’ve seen in class, and most attractive.
    Aviara AV32 head
    The head is easy to enter because the door to it is cut away from the top and the side. On the back of the door there’s a mirror just above a small storage cubby, and just inside the door there’s a grab handle to make it easier to get in and out of the compartment.

    Storage Maximus

    In the bow, there’s storage underneath the seats, including a built-in cooler underneath the portside seat, and behind that portside seat is additional storage. Plus there’s even more storage in the deck. Back at the helm area, there’s an in-deck compartment that includes dedicated storage for the cockpit table and side mount pedestal. In the cockpit itself, under the L-shaped seats are all storage, including storage under the aft section. In the walkthrough to the cockpit, there’s dedicated storage for the fenders.

    Aviara AV32 storage
    Aviara maximized the storage throughout the entire boat.
    Aviara AV32 storage
    Naturally, there’s storage under all the cockpit seating.

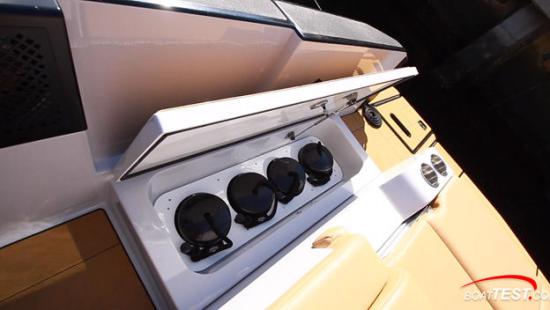

    Aviara AV32 fenders
    Under the walkway from the swim platform to the cockpit there is dedicated storage for four fenders.

    Operations

    Moving to the operational features, as we open the engine hatch one thing that is impressive is how high the engine hatch opens. Usually when we try to access a sterndrive engine compartment, it will only open so far, but this one just keeps on going, and going, and finally stops at a point providing for unlimited access. We can even just haul the engines out out if we need to.

    Aviara AV32
    Aviara includes one of the most accessible compartments we’ve seen, thanks to this extra wide opening hatch. Notice the extensions for the pop-up bar stools at the top of the hatch and drain hoses for the beverage holders at the bottom of the hatch which lead to the bilge. The engine room is lighted for nighttime inspection.

    Power by Ilmor

    There’s bright LED lighting underneath. Inside, of course the focal point is the twin Ilmor 6.0L, 380-hp engines. The beauty behind these are really two-fold. First there is no raw water running through these engines. Raw water is pumped up to the heat exchanger on the front of the engine to cool the glycol fluid that cools the engine. And raw water is also pumped through the exhaust manifold. Everything else is glycol cooled heat-exchange system.

    The second component is that all of the checkpoints are located at the front of the engine, such as the dipstick, coolant, outdrive oil, engine oil, and there’s a drip tray around the oil filter.

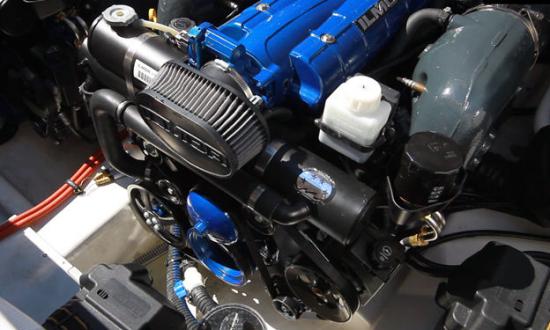

    Aviara AV32 engines
    All fluid checks and fills are at the front of the Ilmor engine. The raw water strainers are in front of the engines and easy to reach.

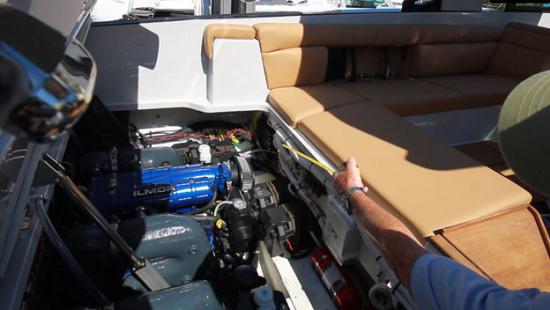

    Aviara AV32 fuses
    There are no fuses on this boat, only breaker switches. On the prototype we tested they were in the engine room where Captain Steve is pointing, but they will be moved to be under the seat in production models for easier access.

    Lower Units. The outdrives are built by Yanmar for their diesel engines which means that they are beefy to take the high torque diesels put out. They have a hydraulic-cone clutch which is silent and silky smooth. These two details mean that they are probably the strongest sterndrives on the market. Everything else on the outdrives, such as the trim and the steering, is all controlled by Ilmor.

    The Bow – Ground Tackle

    Fully forward is a turn-and-lock latch that opens a hatch that gets supported by a stainless-steel gas assist strut. Inside is a Lewmar windlass leading out to a through-the-stem anchor roller, and an ULTRA anchor is mounted on top of the roller. There’s a cleat for securing the anchor rode. There’s easy access to the rode storage. A remote control and an actuator for the washdown is all located here as well. With the hatch closed, there are pull-up cleats to both sides, LED dock lights, and a pop-up navigation light.

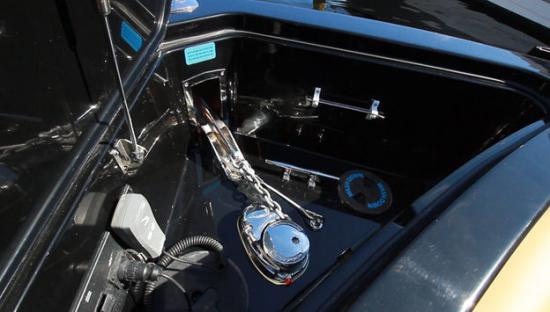

    Aviara AV32 anchor package
    Our test boat has the optional anchor package which starts with a through-the-stem ULTRA polished stainless steel anchor, which BoatTEST recommends for its holding ability in most conditions. There is a Lewmar windlass with remote and a sturdy cleat for the rode. There is also a washdown hose to clean the anchor rode and anchor. We’d like to see improved access to the rode locker.

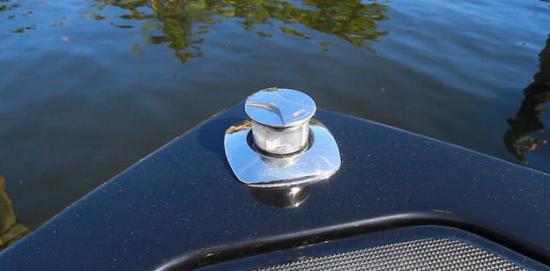

    Aviara AV32 navigation lights
    The navigation lights are in a pop-up fixture. Not shown in the picture are port and starboard pull-up cleats.

    Helm

    The helm seat is wide enough for two people and has a simple, clean glass-dash. It consists of 10”(25.40 cm), 12” (30.48 cm), and 7” (17.78 cm) displays. The 10” (25.40 cm) display is vertically mounted and it includes digital switching for all of the vessel’s systems, including the Klipsch stereo. The center Garmin 12” screen is for navigation, and since it has multi-screen capability, lots of things can be displayed there. The 7” (17.78 cm) panel over on the right hand side is for engine diagnostics.

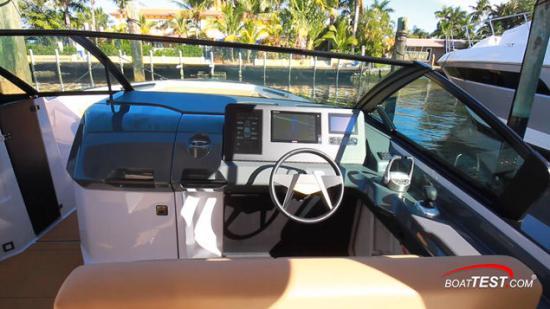

    Aviara AV32 helm
    Aviara went with a glass-dash panel for a clean and efficient helm layout.

    Quick access buttons are located to the right underneath the engine panel. Trim tabs are automatically operating with a control over on the right hand side. Engine start/stops are just ahead of the wheel which is mounted to a tilt base. The digital engine controls are over on the right-hand side and the positioning is nicely ergonomic. Behind is the sterndrive joystick.

    Among the features included with the Ilmor functionality are Anchor Assist that holds position and heading, Location Assist which holds position but not heading, and Heading Assist which holds heading but not position.

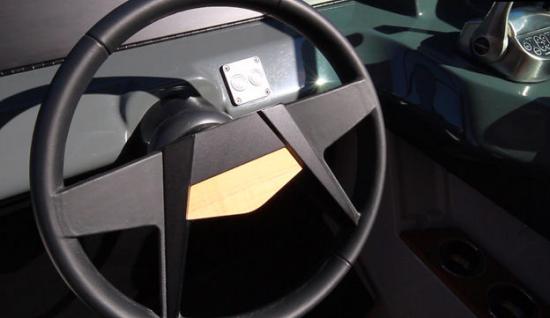

    Aviara AV32 steering wheel
    The AV32’s steering wheel is made in Italy and has a textured soft grip for a good hold on things.

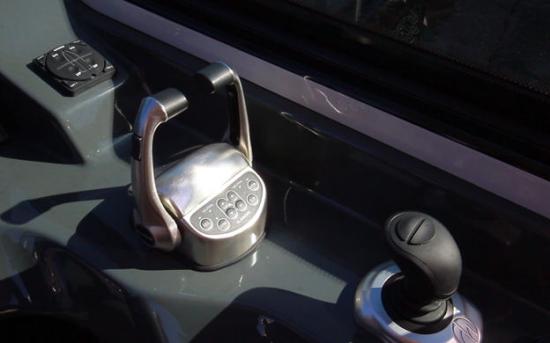

    Aviara AV32 controls
    The layout of the controls is the standard layout with the Lenco trim tabs, forward of the binnacle and the joystick behind.

    There is an ergonomic joystick and it’s activated by one button press. To engage the main controls, simply press a button there as well. Down below are dual beverage holders mounted into another teak panel, USB charger connectivity just ahead, and above are the dual ignitions. All the way down at deck level, there’s an angled footrest that has a non-skid surface on it, and just underneath is a recessed area for toe-space.

    The helm seat is double-wide, there are two flip up bolsters that are each 24” (60.96 cm) wide and it also has the Cool Feel upholstery and the level of padding is quite comfortable. The seat is also adjustable to face aft.

    Getting Underway

    Sensitive Joystick. As we were pulling out, we did that one press of the joystick button to activate, and then it takes a very gentle touch to move the boat. It’s a progressive joystick so the more it’s moved, the more thrust the boat gets, and it’s very sensitive, so delicate touches are what it takes to get moving.

    Another useful component of the joystick is that you can have full joystick steering up to 10 knots, without having to add any functionality or options. It’s especially useful for activating the joystick before making a tricky approach or departure with strong, often confusing cross currents.

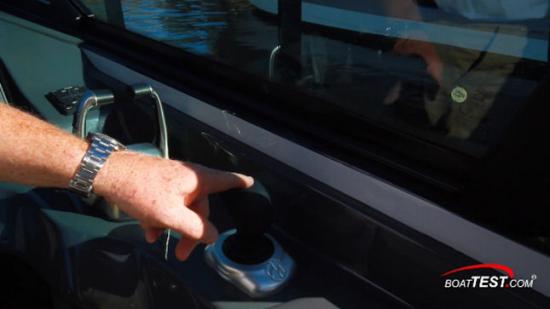

    Aviara AV32 joystick
    A delicate touch is all it takes to operate the joystick. Shifting is ultra-silent and silky smooth.

    Test Numbers

    The Aviara AV32 has a length overall of 32’6” (9.91 m), a beam of 10’4” (3.15 m), and a draft of 2’6” (.76 m). With an empty weight of 12,000 lbs. (5,443 kg), 62% fuel and four people on board, we had an estimated test weight of 13,408 lbs. (6,082 kg).

    She has a deadrise at the transom of 20-degrees.

    The Data. With twin 6.0L Ilmor MPI 380-hp engines doing the heavy work, we reached our top speed of 54.9 mph at 5600 rpm. Best cruise came in at 3700 rpm where we reached a speed of 34.1 mph. At that speed, the 25.1 gph fuel burn translated into 1.4 mpg and a range of 203 statute miles, all holding back a 10% reserve of the boat’s 166 gallon (628 L) total fuel capacity. We had a time to plane of 4.1 seconds, reached 20 miles per hour in 7.6 seconds, and 30 miles per hour came at 11.7 seconds.

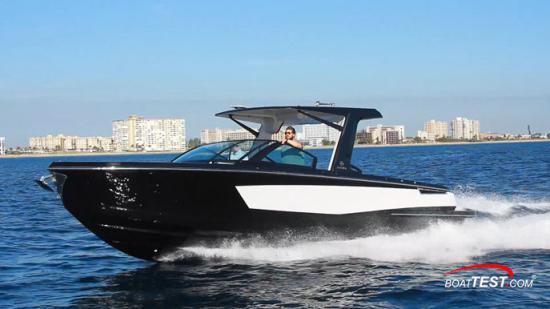

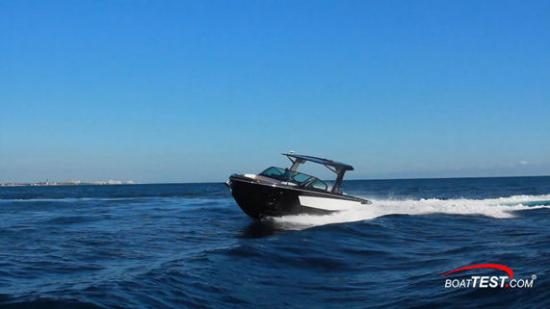

    Aviara AV32 running
    The AV32 topped out at just under 55 mph during our testing.

    Handling

    What we were most impressed with was the handling characteristics of the AV32. Throughout our performance evaluation, we tried as best as we could to bring out the worst in this boat and there just was no worst.

    She would cut through waves cleanly with no hull slap, stuffing or pounding whatsoever. In fact, the only noise we heard while we were cutting through the waves was a small hatch up forward that was bouncing, and that can easily be taken care of. The AV32 carved easily through turns with no chine walk, and she bleeds off enough speed so that when put into a power turn, it won’t throw everyone and everything over to one side. She stays comfortable throughout.

    She reaches her normal cruising attitude of about 5-degrees bow high at maybe 31 or 32 miles an hour. As usual, we didn’t have a lot of chop to work with on our test day so it’s unclear on how she handles in rough conditions. However, crossing the wake of our camera boat shows smooth transitions across the wake, and if we did manage to catch air, she would have a smooth reentry with again, no pounding or hull slap. There just wasn’t anything we could bring out untoward throughout this boat’s handling.

    Aviara AV32 running
    What minimal waves we could generate were handled without fuss by the AV32.

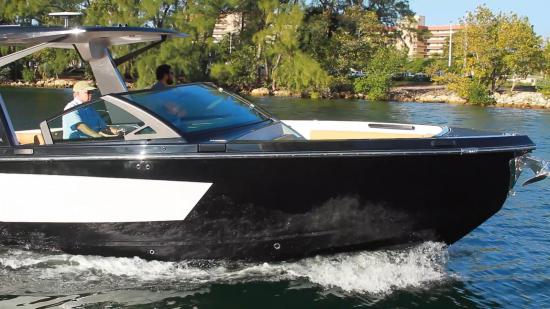

    Aviara AV32 bow design
    She’s got a European inspired bow design that starts out plump before it angles back to its sharp entry. Below that there’s a flare that creates a sort of integrated spray rail to deflect water and create a dry ride.

    Upon returning to the dock, we got another chance to use that delicate touch of the joystick and found it to be dialed in perfectly. Not only were we able to make a precision approach, but there was none of that annoying clunking into gear, just a smooth shifting in and out of gear – this is because of the sterndrive lower unit’s hydraulic cone clutch. So that excellent handling we discussed out on the water, translated right back to the dock.

    Options to Consider

    The first option, and the most important, is whether to go for the outboard version of the boat. That version will be 500 lbs. (227 kg) lighter than the sterndrive one. Obviously, the swim platform is eliminated except for two sections port and starboard. Also, the optional hydraulic underwater platform is not available in that version. As we haven’t yet tested the boat in that configuration, so we will not hazard a guess on her performance.

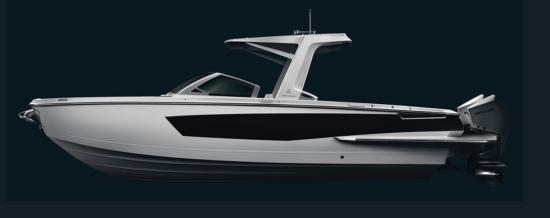

    Aviara AV32 profile
    View of the Aviara AV32 with outboard engines.

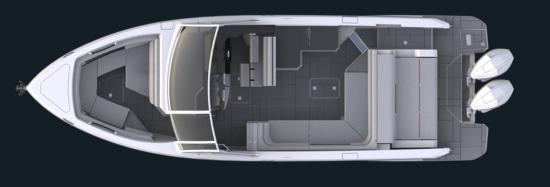

    Aviara AV32 deck plan
    A bird’s eye view of the AV32 with outboard power.

    Some options that should be considered include heated seats, and in the sterndrive version a heated cockpit. Other options to consider are—

    Aviara AV32 bar stools
    The “bar stools” are optional and can be gas assist or powered.
    Aviara AV32 cooler
    A vacuumed sealed drawer cooler.

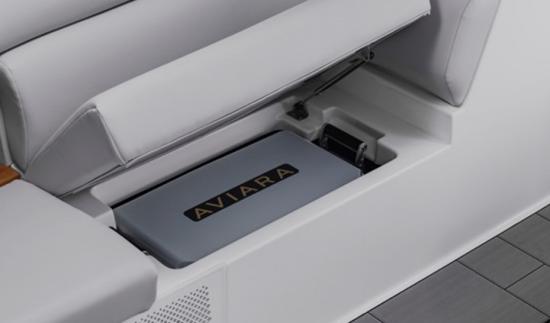

    Aviara AV32 cooler
    An upgrade to a classy Cordova carry-on cooler.

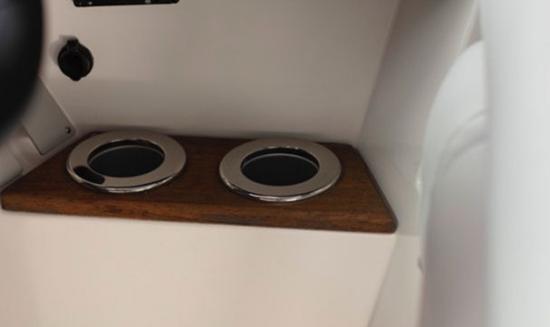

    Aviara AV32 cup holders
    Cooled cup holders are a must.

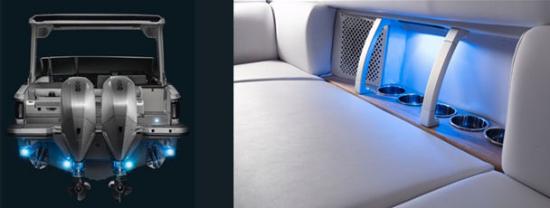

    Aviara AV32 lighting
    Cool-looking lighting both underwater and on deck is the next big thing on day boats.
    Aviara AV32 anchor
    Every boat needs an anchor, so on this caliber boat it should be polished and have an electric windlass.

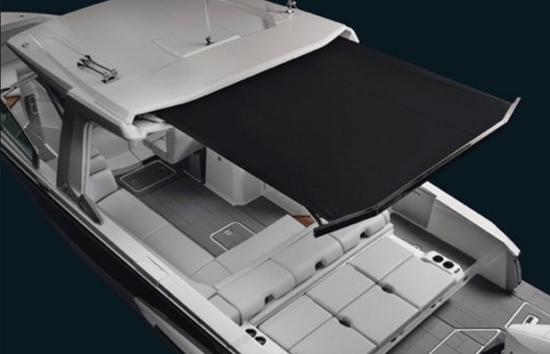

    Aviara AV32 sun shade
    An electric sun shade is advisable.

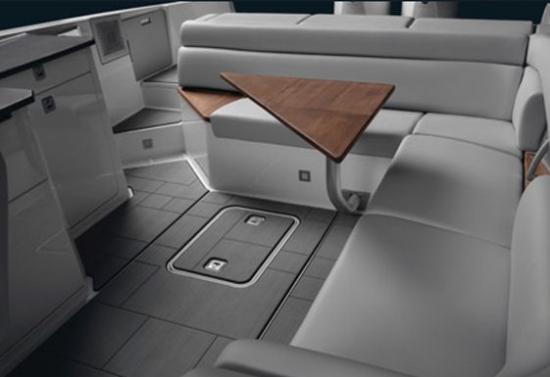

    Aviara AV32 cockpit
    Dedicated stowage has been provided for two tables, so they might as well be added to the options list of must-haves.

    Price

    The price is north of $300K, depending on options selected.

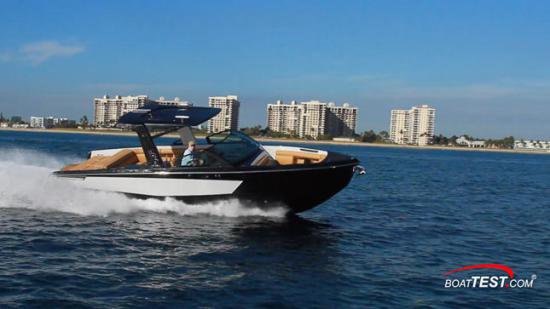

    Aviara AV32 running
    In hard-over turns she handles easily and leans about 12-degrees. She was dry on test day at all times.

    Observations

    The Aviara AV32 is European in her approach to her mission as well as her design. Her blunt bow, raised forefoot, open transom, luxury, and list of exciting options makes her the first boat of her type built in America that we have seen. In fact, these boats are a new type, called “Luxury Day Boats,” by their builders in Europe.

    This new type of boat – which come in sizes from 25’ to over 50’ (7.62 m to 15.24 m) – is made for a discerning clientele who want something different, cutting-edge stylish, luxurious, and very comfortable upon which to entertain guests. Certainly, Aviara has done that with its AV32.

    We were impressed by the boat’s design and execution, as it seems that Aviara left no amenity unlisted in it’s standards and options, that could make one’s heart go pitter-pat.

    Test Result Highlights

    • Top speed for the Aviara AV32 (2019-) is 54.9 mph (88.4 kph), burning 59.9 gallons per hour (gph) or 226.72 liters per hour (lph).
    • Best cruise for the Aviara AV32 (2019-) is 34.1 mph (54.9 kph), and the boat gets 1.4 miles per gallon (mpg) or 0.6 kilometers per liter (kpl), giving the boat a cruising range of 203 miles (326.7 kilometers).
    • Tested power is 2 x 380-hp Ilmor 6.0L MPI.
