15 Things You Need To Know Before Repowering Your Outboard - 05/03/2017

The resurgence that outboard motors have had in the past few years has many owners considering repowering their boats. Whether it’s a financial matter and a new boat isn’t an option or the fact that a given owner loves the layout of his current model and the engines are just tired, more people are looking at repowering.

It can be as easy sticking with the same brand and power and bolting on newer versions or maybe a more complicated project that changes the horsepower and number of engines. Let’s take a closer look at each step individually.


How to Pick a Repower Outboard lead image
Is it time for a new pair of outboard motors? Repowering has become a more popular choice for boatowners in recent years as boat prices have gone up.

1. The Boat

In any re-power project the first step needs to be making sure that the boat is still healthy. Spend a few hundred dollars on a good surveyor and find out it the boat is sound. Is the laminate sound, the stringers still attached, water intrusion into the transom? A boat that looks great on the outside can have hidden problems so get it checked out.

Consumer Caveat. Remember, that many boat builders did not realize until around 1980-85 that polyester resin is water permeable – that’s when builders started using vinylester resin which is not. Some builders were slower to adopt this resin as a skin coat than others. Your boat may be heavy because of added water weight.

2. Top Speed

Most outboard boat owners care about top speed, so we will address it. On any given hull engines with same horsepower should theoretically have the same top speed. But there is more than horsepower and weight that makes one engine different than another. The lower unit gear ratio and the prop geometry are two other defining factors. Generally, every engine is engineered for a specific purpose and the gear ratio that is dialed-in is a careful calculation that takes into account the strengths and weaknesses of the engine, the performance desired, and the prop geometry that is recommended.

Prop geometry is also a variable that an owner can largely control. Certain pitch and diameters will produce a higher top speed than others, but usually at the expense of other characteristics. Likewise a boat propped for maximum fuel efficiency at normal cruising speeds will usually not produce the highest top speed possible. The props generally recommended by the engine maker are a fair compromise between top speed and fuel efficiency.


How to Pick a Repower Outboard regulator
This 1999 Regulator center console looks pristine -- but her engines are also 17 years old – and are probably tiered. Engines have made large advance since 1999.

3. Weighty Questions

Once the decision to repower has been made, the next choice is the new motors. In the early days of four-stroke outboard design and construction, these motors were much heavier than their two-stroke counterparts. Many boat manufacturers cautioned against replacing original two-stroke outboards with newer, heavier four-strokes because transoms weren’t designed to handle them.

Today, thanks to improved design, most outboard engines are relatively close to each other in total weight. Those weight differences are no longer an issue.

Compare Apples to Apples. When making weight comparisons be careful to compare the same shaft lengths and the same components. For example, new Evinrude G2 engines have internal steering gear and internal oil tanks, whereas all other brands rely on external steering and oil tanks which are not counted in the engine’s weight – weight that nevertheless is required.

Robust Gear Cases. Years ago outboards were designed first for freshwater use and speed, so lower unit gear cases were made as fine as possible to reduce drag and weight. But some manufacturers have moved away from that concept and now offer more robust gear cases than others, which adds weight and slightly more drag. Even though they add more weight and drag, most consumers like having more reliable lower units when tackling choppy offshore conditions at high speed.


How to Pick a Repower Outboard engine 200
Evinrude’s E-TEC G2 200 has a robust lower gear case.

How to Pick a Repower Outboard engine 200 verado
Mercury uses a supercharger on its four-cylinder four-stroke 200-hp Verado to keep weight competitive.

4. Power Surge

For many owners, the temptation to go up in power becomes part of the repower decision. First, check the boat’s capacity plate for the rated horsepower. If the old motors were the maximum horsepower, then that’s the number. Do not under any circumstances exceed the USCG rated horsepower.

It makes no difference of the weight of the new, more powerful engines, is the same as the old engines, horsepower is always the limiting factor.

5. Two-Stroke or Four-Stroke?

When 4-stroke engines were introduced in the 1980s they had the advantage of better fuel economy and the disadvantage of higher weight and weak low-end torque. But since then many thanks have changed.

Two-stroke outboards still have the advantage when it comes to low and mid-RPM range torque, something that bass anglers and towing sport enthusiasts care about. And today the Evinrude G2 outboards -- even though they are 2-stroke -- can go head-to head with most 4-stroke engines on overall fuel economy.

At the same time, 4-stroke engines have become lighter and have improved mid-range torque. The Mercury Verado which has a supercharger also can compete with 2-stroke engines on low-end torque.

Fuel Injection. Most outboard engines sold these days have one type or another of fuel injection and have eliminated the old-fashioned carburetor. Some outboard makers inject the fuel into the intake manifold and others inject it directly into the cylinder itself. For example, the Evinrude new G2 engine is built around the fuel injector in the cylinder. No matter how the fuel is injected, the new systems are more reliable and more fuel efficient that the old carburetor system.

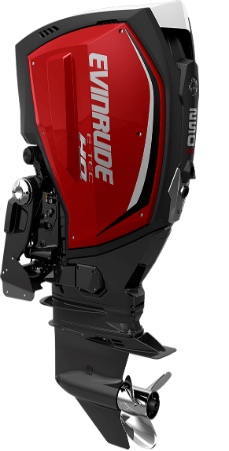

How to Pick a Repower Outboard engine 250
Evinrude’s line of V-6 two-strokes ranges from 200-hp to 300-hp including the 250 H.O. model.

6. One Engine or Two?

With the improved reliability and increased power output available in today’s outboards, sometimes going with a large single instead of two smaller twins or a pair instead of triples is the smart choice. For example, twin 200-hp four-cylinder Mercury Verado outboards weigh a combined 1,020 lbs. (462.66 kg), resulting in a pounds-per-hp ratio of 2.55 pounds (1.16 kg).

A single 350 Verado weighs 668 pounds (303 kg) which results in 1.9 pounds (.86 kg) per-hp. Factor in the additional weight savings of the missing battery and rigging for the second motor plus the reduced drag from not having the second gearcase in the water and the speed difference would be negligible. Fuel consumption might also be improved.

7. Transom Strength

It would be best to check with the boat manufacturer to make sure that a given model’s transom can handle having that much power bolted to a smaller central location in a large single installation, instead of having it spread across the boat’s stern with twins. Additionally, fishermen who run far offshore may still be more comfortable with the redundancy of having the second or third motor to get home.

On a more extreme level, Seven Marine makes the largest outboards in the industry with V-8 powerheads based on a General Motors LS engine. They are available in 557 and 627-hp and were originally intended to replace larger numbers of lower-output motors on the back of a given boat.

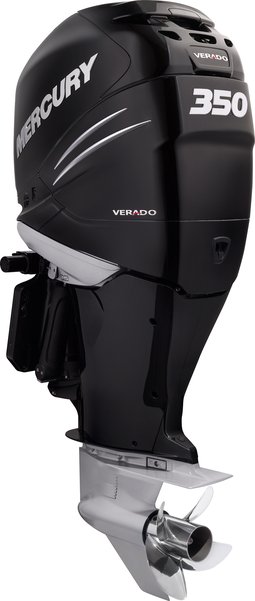

How to Pick a Repower Outboard verado 350
High-output motors like the Mercury Verado 350 could replace a pair of smaller motors on some boats.

8. Changing Brands is OK

Many mechanics might recommend against changing brand of outboard because it would require re-rigging the boat. But the fact is, since you are repowering, the chances are that the engine you are replacing has outdated cable steering and throttle control. One of the reasons to repower is to get rid of this old-fashioned system.

Evinrude’s Conversion Solution. For those who want to save money on installation, Evinrude has created a clever “conversion module” which takes existing cables and puts them into a box that converts mechanical actions to digital signals.

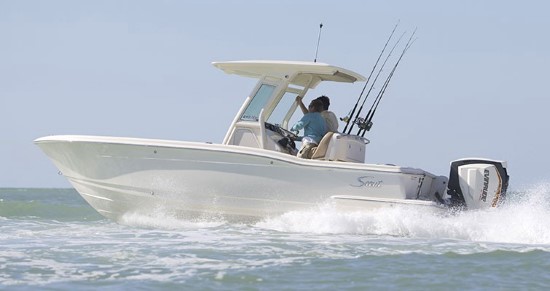

How to Pick a Repower Outboard outboard repower
Evinrude has an advantage in the repower game because the manufacturer’s side panels and accent stripes come in so many colors they can be custom-matched to a boat.

9. The Digital Age

New motors often mean new technology, including digital shifting and fly-by-wire instruments and engine monitors that plug in with a single wire. All Evinrude E-TEC G2 models come with digital controls, i-Trim automatic trim and integrated hydraulic steering. The E-TEC G2 150, however, can be had with conventional steering to make it more feasible for re-power projects.

Evinrude also makes a Universal Repower Rigging harness that converts standard mechanical shifting and throttling to digital. Mercury’s V-6 Verado series outboards come with Digital Throttle and Shift (DTS) standard, but it’s an option on the four-cylinder 175- and 200-hp models. Yamaha’s Command Link Plus system is standard on its V-6 Offshore Series from 225 to 300-hp.


How to Pick a Repower Outboard universal
The Evinrude Universal Repower Rigging System converts mechanical controls to digital in a complete package.

How to Pick a Repower Outboard icon ii
Evinrude E-TEC G2 motors come with the Icon II digital controls.

10. Instrumentation

Along with digital control has come digital instrumentation. Generally, all information is not contained on one multi-purpose readout that monitors all important aspects of the engine. All engine makers have these new digital readouts.

11. Maintenance

This is a subject that is not much discussed but one where the engine companies vary greatly on how much regular dealer maintenance is required to not only keep warranties effective but also to maximize the life of the outboard itself. This can be an expensive differentiation so consumer due diligence is required. Check BoatTEST for warranty information.

12. Other Components

Depending on the age of a boat, an owner will want to at least inspect and analyze his boat’s fuel system to ensure that it will work with today’s ethanol-blend fuels. This includes the tank, hoses and fittings. Ethanol doesn’t necessarily hurt engines, but it can break down non-compliant hoses and that can lead to clogged filters, starved injectors and other problems. Other equipment that might need to be upgraded can include fuel-water separators and batteries depending on age and amperage output.

13. Special Features and Benefits

Every outboard engine company has its own differentiating features and benefits which they outline on their website. For example, the Mercury Verado is the only supercharged engine on the market, and the Evinrude G2 series is the only one that has internal steering. It is best to visit their websites to find their features. If important items are not mentioned, chances are they don’t offer it.

14. Joysticks

The major outboard makers now have joystick control for multi-engine installations. They definitely do make docking and tight situations easier to negotiate. Seriously consider them – particularly for multi-engine rigs.

15. Warranties Have Changed

The new breed of engines generally have increased and improved warranties. Some last as long as five years, and we have seen boat show specials as long as 10 years. Make sure the warranty is factory backed (not a third-party service contract) and non-declining. Read the fine print.

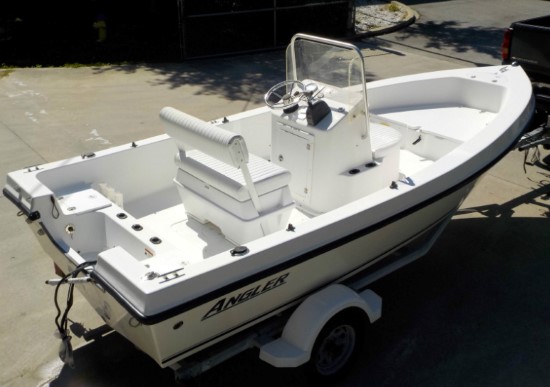

How to Pick a Repower Outboard angler motors
The beauty of repowering an outboard-powered boat regardless of the brand is that there’s plenty of room to work. But make sure you are not spending more money on the engine than the boat is worth.

Observations

Repowering an outboard-powered boat can be a viable option for an owner who either can’t afford a new boat or who simply loves the boat he already has but wants new power. New motors will breathe new life into the boat and often improve performance and fuel efficiency.

Additionally, because the motor or motors mount to the stern of the boat, a DIYer with a block and tackle or a come-along winch can throw a chain over a sturdy tree branch or beam in a garage and do most or all of the work involved in the swap himself. He would save on labor rates and get a huge sense of accomplishment when the project is done.

See our repower video of a 25’ Hydra-Sports… click here.


======================================
