Brief Summary

Yamaha has gone back to the drawing board and redesigned it 21’ (6.40 m) series of boats, formerly known as the 210 Series. Now, as the 212 Series, these boats have more in common with the larger 24’ (7.32 m) models than the predecessor models. The 212 Series consists of three models, the 212 Limited for luxury, the limited S with the watersports tower, and the tricked-out-for-watersports 212 X that we tested. Let’s see how this new models shapes up.

Key Features

  • Colors available in Black or Space Blue
  • Removable dinette table with pedestal
  • Adjustable Captain's Chair with flip-up bolster
  • Integrated removable cooler
  • Integrated swim platform
  • Marine stereo
  • 3 position No Wake Mode control
  • Bimini top
  • Aluminum folding wakeboard tower
  • Painted trailer with swing-away tongue
  • Specifications

    Length Overall 21' 3''
    6.48 m
    Beam 8' 5''
    2.57 m
    Dry Weight 3,605 lbs.
    1,635 kg
    Tested Weight 4,325 lbs.
    1,962 kg
    Draft 16''
    .41 m
    - Draft Up N/A
    - Draft Down N/A
    - Air Draft N/A
    Deadrise/Transom 20-deg.
    Max Headroom open
    Bridge Clearance 7' 3''
    2.21 m
    Weight Capacity 1,860 lbs.
    843 kg
    Person Capacity 10
    Fuel Capacity 50 gal.
    189 L
    Water Capacity
    Length on Trailer N/A
    Height on Trailer N/A
    Trailer Weight N/A
    Total Weight
    (Trailer, Boat, & Engine)
    N/A

    Prices, features, designs, and equipment are subject to change. Please see your local dealer or visit the builder's website for the latest information available on this boat model.

    Engine Options

    Std. Power 2 x 1812cc Yamaha 1.8 Liter, High Output
    Tested Power 2 x 1812cc Yamaha 1.8L HO
    Opt. Power Not Available

    Test Results - Change Measurement Unit

    RPM MPH Knots GPH MPG NMPG Stat. Mile NM dBa
    1650 4.0 3.5 1.6 2.5 2.2 113 98 72
    2000 5.2 4.5 1.9 2.7 2.4 122 106 75
    2500 6.0 5.2 2.4 2.5 2.2 114 99 78
    3000 6.9 6.0 3.3 2.1 1.8 95 82 78
    3500 7.6 6.6 4.4 1.7 1.5 78 68 76
    4000 8.7 7.5 5.9 1.5 1.3 67 58 75
    4500 10.6 9.2 7.3 1.5 1.3 66 57 79
    5000 24.6 21.4 9.6 2.6 2.2 115 100 85
    5500 30.3 26.3 10.8 2.8 2.5 127 110 85
    6000 45.2 39.3 20.9 2.2 1.9 98 85 84
    7400 50.8 44.2 24.2 2.1 1.8 95 82 92
    RPMNMKMKPHLPHKPLdBA
    1650 98 182 6.40 6.06 1.06 72
    2000 106 196 8.40 7.19 1.15 75
    2500 99 183 9.70 8.90 1.08 78
    3000 82 153 11.10 12.30 0.90 78
    3500 68 126 12.20 16.66 0.74 76
    4000 58 108 14.00 22.14 0.63 75
    4500 57 106 17.10 27.44 0.62 79
    5000 100 185 39.60 36.34 1.09 85
    5500 110 204 48.80 40.69 1.19 85
    6000 85 158 72.70 78.93 0.92 84
    7400 82 153 81.80 91.42 0.89 92

    All fuel consumption numbers are the total for all engines in the boat. Speeds are measured with Stalker ProSports radar gun or GPS. Fuel consumption (gallons per hour) measured with Floscan digital fuel-flow meter or by on-board factory-installed diagnostic instruments. Range is based on 90% of published fuel capacity. Sound levels determined using Radio Shack digital decibel meter on A scale. 68 dBA is the level of normal conversation. Time to plane is measured from start of acceleration to formation of rooster tail behind boat.

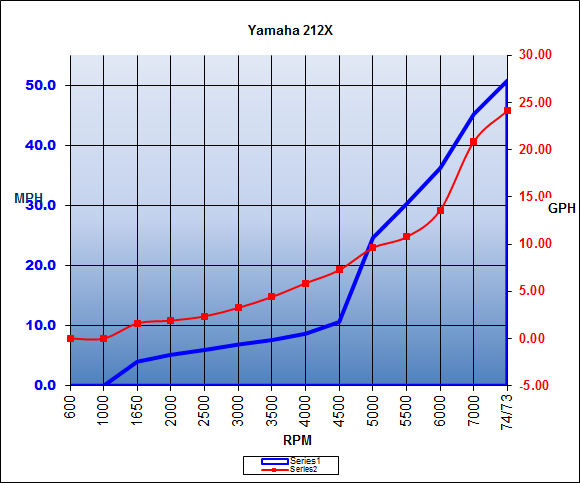

    Performance Chart

    Performance Chart

    Acceleration Times & Test Conditions

    Time To Plane N/A
    0 to 30 6.3 sec.
    Ratio N/A
    Props 22.9 deg SS 3 blade
    Load 2 persons, full fuel, no water, 50 lbs. of gear
    Climate 93 deg., 66 humid.; wind: 0-5 mph; seas: calm

    Captain's Report

    Yamaha 212X running
    The all-new 212X from Yamaha is targeting the watersports market with lower costs and jet propulsion.

    Overview

    Yamaha has recently redesigned, and reimagined, its entire 21’ (6.4m) boat line from the keel up. As result, these boats have more in common with the larger flagship models. The three boat lineup includes the 212 Limited S with its forward swept tower, the luxury 212 Limited and the water sports themed 212X.

    The model we tested, the 212X has specific features that target the watersports action. It comes equipped with 1,100 lbs. (498.95 kg) of total ballast in three tanks, a billet aluminum rear view mirror, a premium watersports tower, a premium sound system that includes a tower mounted sound bar, subwoofer, 500 W amplifier, and six Polk audio midrange speakers.

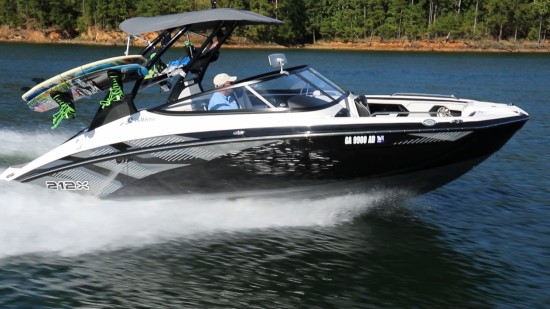

    Yamaha 212X running shot
    The 212X is a sleek looking boat with performance to match.

    Features Inspection

    Operational Features

    Power to Play

    When we tested the Yamaha 212X, the first thing we noticed was that this was a powerful boat. That’s a good thing for a boat that is intended to not only carry a lot of friends, but do so while towing someone at the end of the line.

    Home Grown

    A simple lift of the latch at the rear seat hatch allows the engine cover to lift effortlessly on twin assist struts secured to heavy-duty brackets. These twin 1812cc HO engines are purpose built by Yamaha, which carries two significant benefits. First, there’s no third-party to deal with if warranty issues come up. Whatever happens owners will be dealing with Yamaha, and Yamaha alone. Secondly, these are not stock engines that were pulled off a motorcycle and then modified for use on the water. They were designed and built for Yamaha’s marine market and as such are up to the rigors that boating puts on its powerplants.

    Engine Installation

    The engines take up plenty of available space in the engine compartment but there’s still room to get to all the major components, and certainly enough to perform the daily checks and regular maintenance. We can also see the two Water Puppy pumps for filling the triple ballast tanks and it’s hard to miss the white hose running down the center of the two engines for channeling the cockpit drains overboard.

    Yamaha 212X engine
    The engines are purpose built by Yamaha for marine applications.

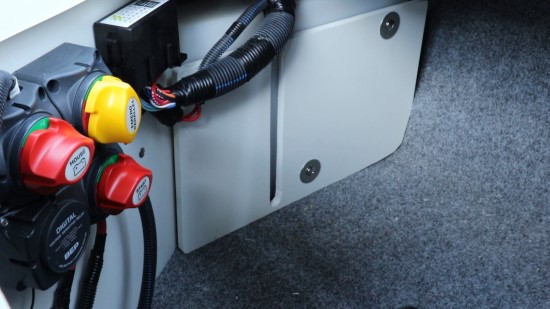

    Yamaha 212X battery switches
    The battery switches are under the portside cockpit seating. To the right in this shot is the rigid ballast tank with a sight gauge showing the level.

    Quiet Cruise

    Yamaha boats used to scream when hitting the throttle… literally. They were loud and Yamaha knew it. Now it has done something about it. From the keel up there is sound dampening that creates a much quieter ride, and we noticed it immediately. More the point, we were able to talk about it… at cruise speed.

    Clean Out Ports

    Under the hatch at the transom lounge area there are access ports to reach down into the impellers from. At the bottom of these ports are large plugs that release with a quarter twist. Once out we can get to the impellers to remove any debris, or plastic bags that some careless boater dropped into the lake that we inadvertently ran over.

    Naturally, no one in their right mind would reach down into a spinning impeller, and whenever the engine is running, the blades are turning. So Yamaha put in a safety feature that kills the engines when the hatch is open. Safe, and foolproof!

    Ground Tackle

    At the bow the 212X has a hatch over the anchor locker that opens with a lift and lock latch. The compartment is large enough for the anchor to share space with the forward reboarding ladder. The locker is held in place by wedge mounts to secure the stocks of the anchor and to keep it from bouncing out of these wedges. Yamaha set aside the traditional twist-type anchor keepers and instead added clever brackets under the hatch that rest atop the anchor to keep it secure when closed.

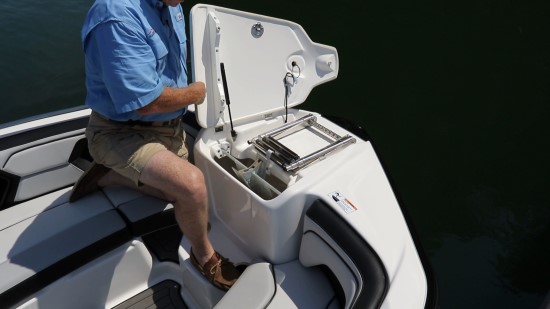

    Yamaha 212X anchor
    The anchor stores inside the compartment at the bow and it shares space with the reboarding ladder. Notice the bracket under the hatch that holds the anchor down when the hatch is closed.

    Helm

    Yamaha did a great job making a classy helm for the 212X. It includes dark tones that reduce strain on the eyes on sunny days. Front and center are two tachometers that give the primary information but most of the time drivers will be getting data from the most significant feature… the Connext controller.

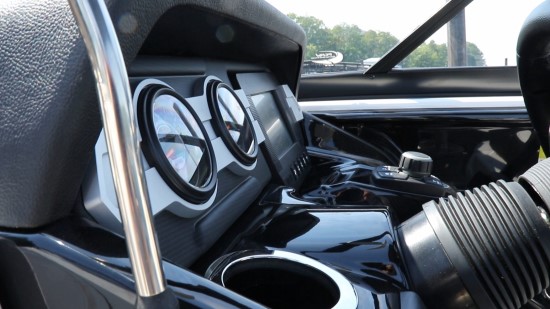

    Yamaha 212X helm
    The helm is laid out in dark tones that keep glare at bay.

    The Connext controller is a 7” (17.78 cm) touchscreen that includes intuitive menus to give full control of the towing parameters, boat data, and sound system. It can be controlled by either the joystick knob, which we first came to appreciate on the 24’ (7.32 m) models, or touch. And towing data can be saved for individual riders and recalled easily.

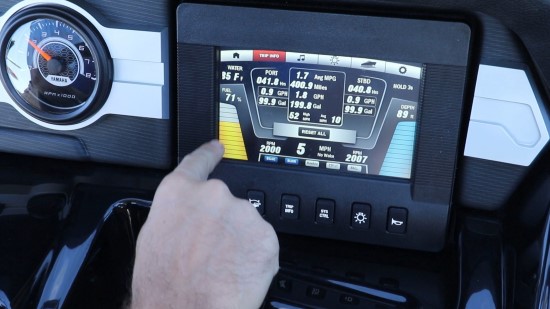

    Yamaha 212X connext
    With the home screen we can see our fuel level, RPMs and speed, water depth in blue… the music tab allows switching between bands and inputs… volume is just below.
    Yamaha 212X joy stick
    The system can be used by touchscreen or with this clever joystick.

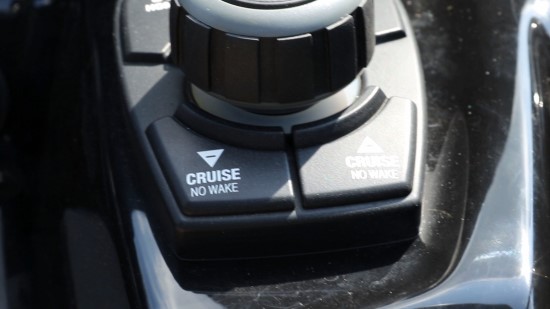

    Yamaha 212X arrows
    We found a relaxed cruise position with the hand resting on the up and down buttons for the cruise and no wake speed incremental adjustment buttons.

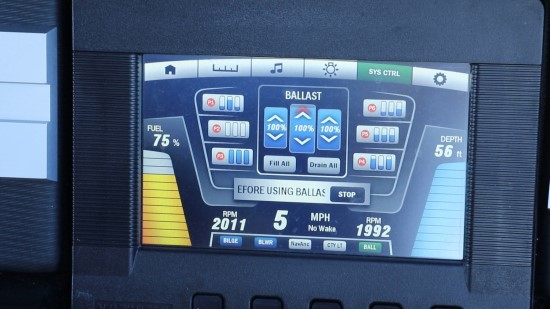

    Yamaha 212X ballast
    The ballast controls are seen here. In the center, the three tanks are filled. To the sides are six presets that can be programmed for individual riders.

    With its stereo functions the Connext system also serves at the entertainment hub of the 212X. Not only can we listen to radio, but also Bluetooth and USB connectivity allows us to hear our Smartphones, weather radio and Sirius satellite radio.

    The joystick provides two buttons for the incremental changes to Cruise Assist and No Wake modes. When anchored, the unit goes into “float mode” and the display changes to show a voltage meter and water depth. If there’s a significant drop in voltage, such as when sitting all day with the tunes cranking, an audible alarm will sound to alert the captain that it’s time to start the engines and charge up the battery.

    Articulating Keel

    The premium steering wheel is mounted to a tilt base and controls not only the jet exhaust nozzles but also the Articulating Keel that gives more precise steering at both low and high speeds. More important is that we now have off-throttle steering.

    Previously, the only way to steer a jet boat was by directing the thrust from the exhaust nozzle. If there was no thrust, such as when the throttles were at idle or neutral, there was no steering. This created a rather disconcerting feeling at times. Imagine heading towards an obstacle, pulling back the throttle and turning away only to have the boat continue on its original course. Now, with the articulating keel, even with no thrust, we still have steering.

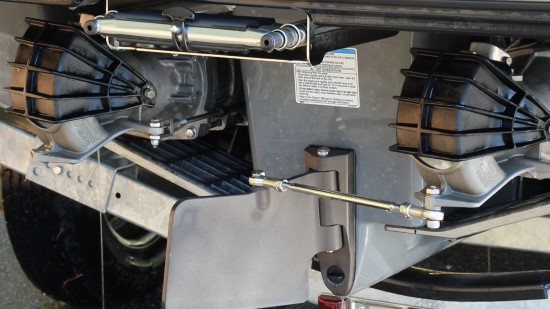

    Yamaha 212X articulating keel
    The Articulating Keel is connected by a tie bar to the starboard nozzle so steering controls both at the same time.

    Tracking is Also Much Improved. With only thrust to maintain a straight track the stern would get pulled slightly when a skier zigged back and forth. Also, following seas were problematic. Both of these issues are now eliminated thanks to the articulating keel. Acting much as a rudder, we have straight tracking when towing and more control authority when operating in choppy water is following the boat.

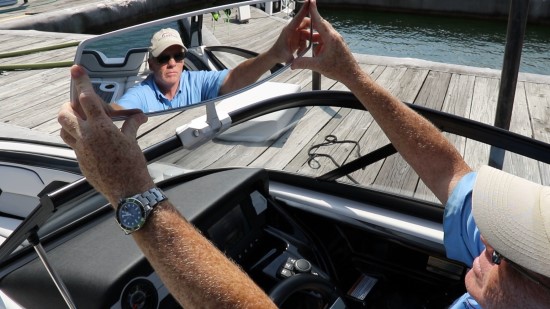

    Yamaha 212X mirror
    A convex rear view mirror mounted on the windshield frame helps the operator remain oriented with the end of the towline.

    Test Results

    The Yamaha 212X has a LOA of 21’3” (6.48 m), a beam of 8’5” (2.57 m) and with no outdrive she has a depth of 16” (40.6 cm). With an empty weight of 3,605 lbs. (1,635 kg), full fuel, and two people onboard, we estimated our test weight at 4,325 lbs. (1,962 kg).

    With the twin 1.8L 1812 HO Yamaha marine engines powering our test boat, we reached a top speed of 50.8 mph at 7400 rpm. Best economic cruise was reached at 5500 rpm and 30.3 mph. It was at that speed where the fuel burn was 10.75 gph that translated into 2.81 mpg and a range of 127 miles, all while holding back a 10% reserve of the boats 50-gallon (189 L) fuel total fuel capacity.

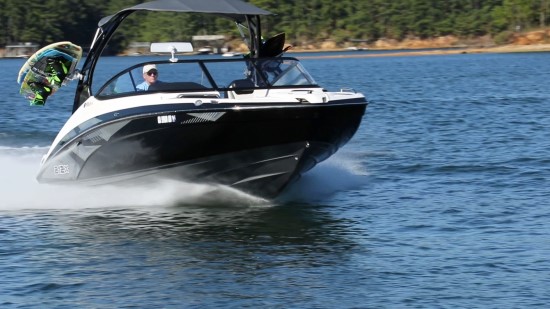

    Yamaha 212X top speed
    During our tests we reached a top speed of 50.8 mph.

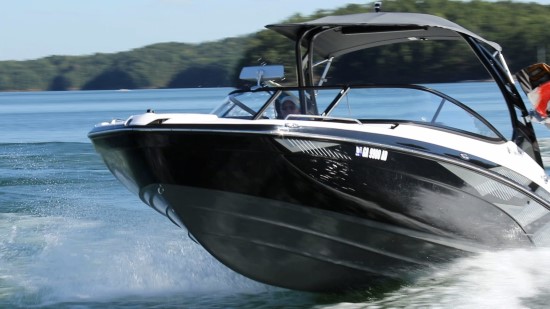

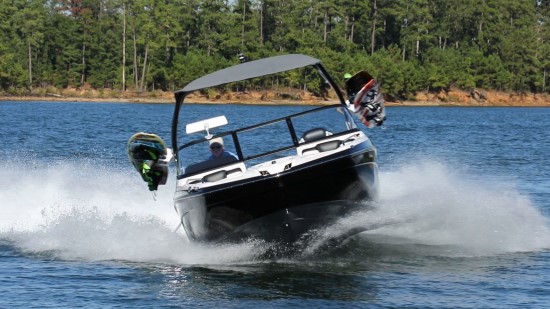

    Yamaha 212X running
    Turning performance is enhanced with the articulating keel.

    Handling

    As for her handling, the 212X is an exhilarating boat to drive. Hitting the throttles had us accelerating through 30 mph in just over 6 seconds. She’s quick to respond to the helm which provides the exciting ride. Crossing wakes showed more of that responsiveness and she also kept spray under control, which kept the windshield dry. She bleeds off very little speed when cranking but is she’s held to the turn long enough she’ll do that fun spin-out that jet boats have come to be associated with.

    Yamaha 212X running
    While we didn’t get to test her on a choppy day, crossing the wakes showed a nice dry ride with no pounding hull slap.

    Towboat Handling

    For towing, we used the Connnext system to fill the tanks. This gave a visual indicator of which tanks were being filled and how far along they were in the process. One topped off we were ready. We noticed straight tracking thanks to the articulating keel system, even when towing a boarder who was dishing out heavy pulling loads to the sides. We were also able to easily produce a wake that allowed a transition from wakeboarding to surfing.

    Yamaha 212X
    Even when a boarder is pulling to the sides the 212X tracks straight and true.
    Yamaha 212X wake boarding
    Catching air behind the 212X is easy with custom sized wakes.
    Yamaha 212X wake boarding
    The 212X makes an easy transition to surfing.

    Watersports Features

    Given that this is a dedicated watersports platform, we need to take a look at the features specific to that discipline.

    In the cockpit, of course there’s storage under both side seats, but in this location Yamaha has a different take on the ballast system. Rather than use inflatable sacks, here the tanks are solid, and mounted across the stern. They include sight windows to visually check the levels, and most importantly, they don’t impede on the available storage like we usually see. They’re filled by way of bronze commercial grade Water Puppy pumps by Jabsco. These two tanks, along with the sole storage sack, add up to 1,100 lbs. (499 kg) total ballast.

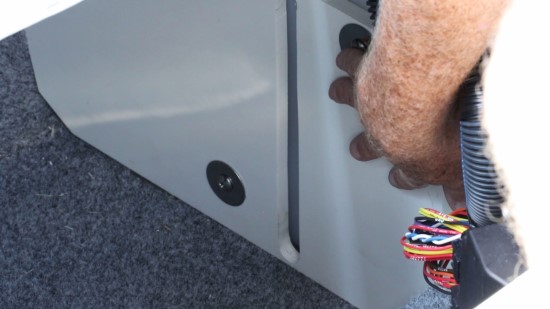

    Yamaha 212X gauge
    The rigid tanks at the stern have sight gauges to visually see how much ballast in present.

    The 212X comes standard with a forward raked watersports tower that’s powder coated black to match the topsides and customized at the bottom to match the model. It includes a bimini for shade and an elevated tow point. Swivel board racks are not included by Yamaha but instead are purchased after-market. This allows the owner to mount the racks of choice since there are so many models to choose from.

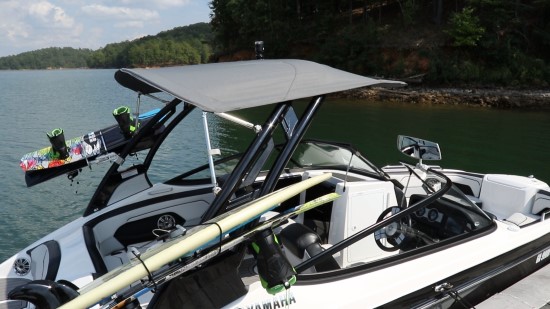

    Yamaha 212X
    The tower is powder coated and includes the Bimini top and a sound bar.

    To the top of the tower there’s a sound bar connected to the high end Polk audio system with a subwoofer and amplifier mounted under the cockpit seating. Over the helm, there’s a convex rear view mirror mounted to the windshield frame. It’s fabricated from billet aluminum and completely adjustable.

    Onboard Features

    Stern

    Yamaha pioneered the concept of making the stern into a more functional gathering area, thanks to the company’s low profile engines providing so much more roominess. The transom on Yamaha boats has therefore come to identify the brand as a whole. Here, it consists of two levels that project 19” (48.3 cm) and 16” (40.6 cm) from the transom. The area is made even more inviting with the addition of a standard removable pedestal table that inserts into a bracket to starboard and the stereo remote to port. The upper deck has backrests that curve around for added comfort. Speakers and beverage holders are also to both sides.

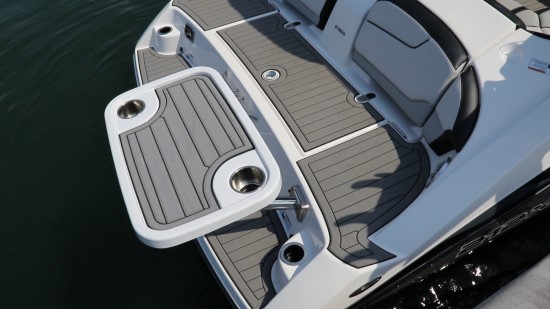

    Yamaha 212X stern
    The stern of the 212X is a comfortable gathering area for anytime the boat isn’t underway.

    For watersports, the stern makes an ideal staging area for putting boards on and entering the water and non-skid matting is included. For reboarding, there’s a concealed swim ladder under the center of the lower deck and two grab handles aid in the reboarding.

    Cockpit

    The cockpit is entered from a centerline walkthrough and a filler cushion completes the U-shaped seating that wraps around the entire stern and comes ahead to meet the twin bucket seats. The Polk Audio speakers are recessed into the padded bulwarks adjacent to expandable storage pouches. Beverage holders are corner mounted.

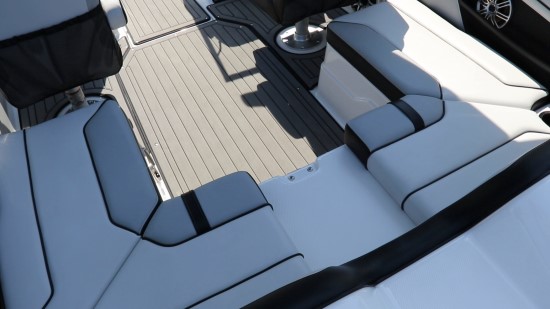

    Yamaha 212X u shaped seating
    The U-shaped seating in the cockpit has a centerline walkthrough from the transom. Notice the standard carpeting on the deck.

    The same pedestal table from the transom can be relocated to this position and the quality of the table bears mention. Yamaha utilizes a high-end version with non-skid matching the transom decking. Two drink holders are mounted in the corners.

    Yamaha 212X table
    A pedestal table adds to the entertainment capabilities. Notice that it’s a high-end model with non-skid matting and two chromed drink holders.

    Forward Cockpit Bucket Seats

    Ahead of the U-shaped seating are a pair of bucket seats. Both of these forward seats are on pedestals allowing them to slide and swivel. The port side seat swings around 180-degrees to allow it to serve as an observer’s seat when towing. The helm seat swings around roughly 45-degrees so as to not come into inadvertent contact with the throttles when swiveling. Both, however, have flip up armrests and while the port includes a reclining feature with the armrests self-leveling. Cargo net storage is secured to the backs. Beverage holders and a grab handle are to the side.

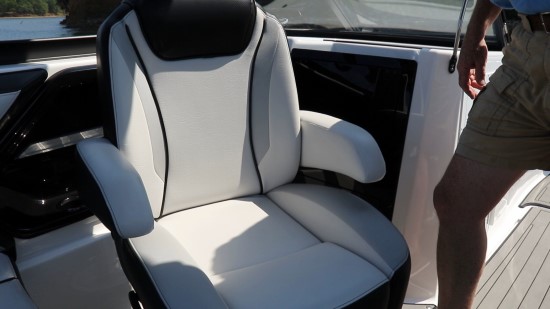

    Yamaha 212X seats
    The cockpit bucket seats swivel, slide, have flip-down armrests, flip up bolsters and the port seat reclines.

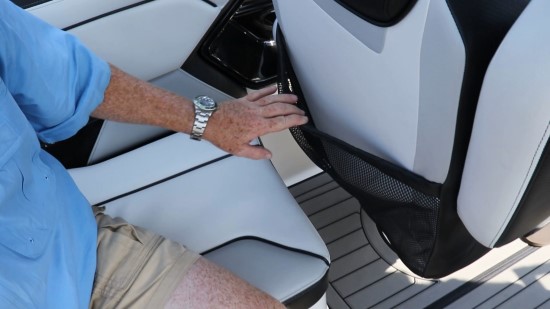

    Yamaha 212X seat back
    The back of the seats has cargo net storage.

    Port Side Entertainment Center

    Ahead of the port seat there are two storage compartments, one over the other. When the upper one is opened the lid, which flips downward, creates a tray for making a convenient snack center. Atop the console Yamaha included a recessed area for putting quick grab items.

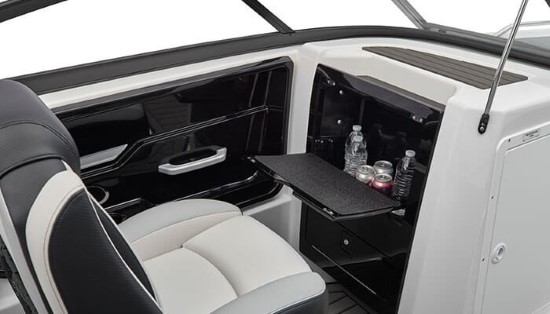

    Yamaha 212X entertainment center
    The portside entertainment center is a great convenience for onboard gatherings.

    Cockpit Storage

    Of course there’s the usual storage under the cockpit seating. Inside the helm console is additional storage and both this, and the port console storage are accessed from the center walkthrough to the bow. The port console storage is occupied by a 38-quart (36 L) carry-on cooler. In the deck is sole storage under a hatch released by a turn and lock latch and held open with a single support strut.

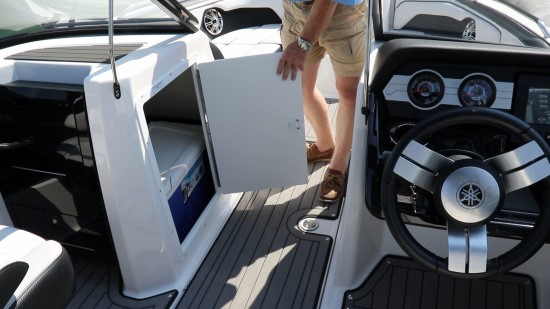

    Yamaha 212X cooler
    A cooler stores in the port-side console.

    Bow

    As expected, we continue forward through the centerline walkthrough that can be closed off by both the windshield and a lower air dam if the cruising gets too chilly.

    The bow is quite roomy, largely due to Yamaha carrying the 212X beam so far forward. We measured 6’4” (1.93 m) between the rear bolsters and 4’6” (1.37 m) as the bolsters run forward. To the sides are inserts with courtesy lights al-a company’s 24-footers.

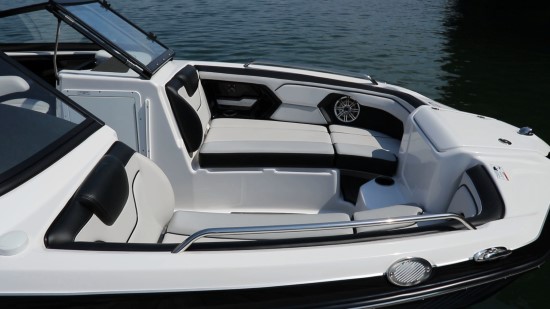

    Yamaha 212X bow
    The bow of the 212X is comfortable and roomy thanks to Yamaha carrying the beam so far forward.

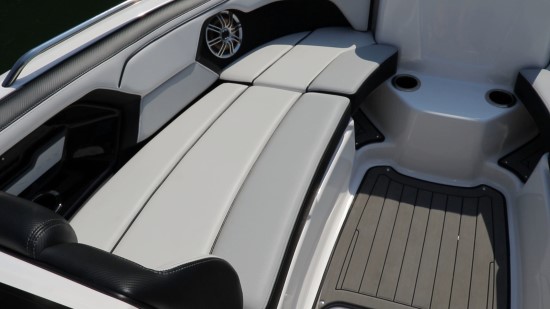

    Yamaha 212X
    The speakers are recessed into the bulwarks. Inserts behind house courtesy lights and drink holders that we’ve seen on the larger models. Additional drink holders are ahead.

    Among the 212X’s many premium features are the stainless steel handrails, chromed cup holders, and upgraded marine vinyl seating. Two speakers bring the music to the front and billet aluminum grab rails add to the security.

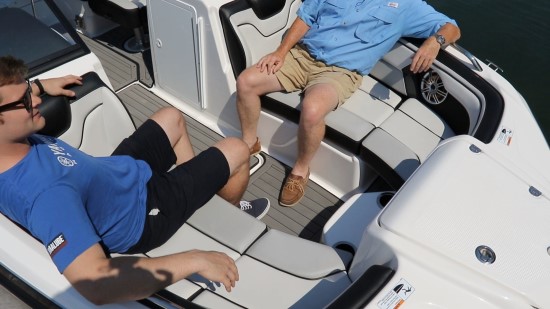

    Yamaha 212X lounge seats
    The bow features two lounge seats with 25” (64 cm) between each one, so guests can sit facing each other without knocking knees together.

    There’s the added comfort of backrests that have a slight wraparound to help hold the occupants secure a little more comfortably than if they were just holding on to the grab rails. Even more comfort is had from the 20” (51 cm) width of the seats. There’s the usual storage under each of the side seats, but Yamaha utilizes scissor-style hinges attached to the rear of the cushions allowing them to be opened from the front for better access to the storage.

    We can also reconfigure the bow seating in several different ways. First, we can remove the two forward cushions and sit with our feet on the deck. We’d like to see a grab handle or strap for making this more comfortable. Filler cushions convert the area into a sunpad. And we can reposition those same filler cushions to create three-across seating.

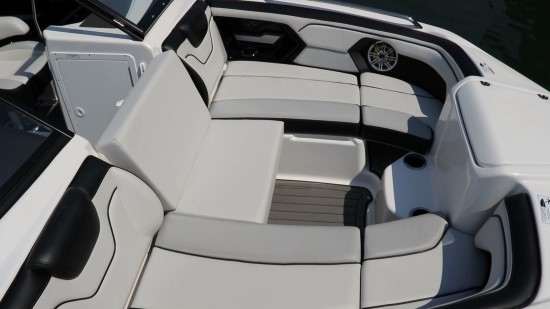

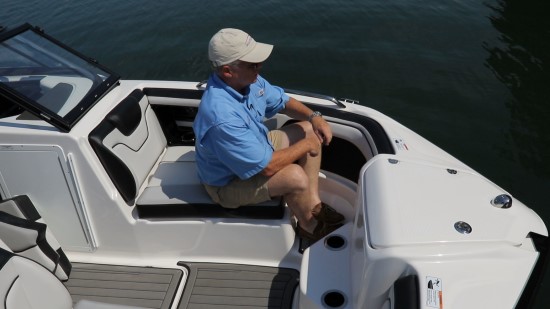

    Yamaha 212X bow seatingYamaha 212X bow convertedYamaha 212X bow converted
    The bow can be configured in multiple ways depending on how it will be used for the day.

    Fully forward there’s a step up to the foredeck and with its non-skid surface this makes a safe launching off point for diving into the water as well as a boarding surface for bow in docking. Under the hatch is a reboarding ladder.

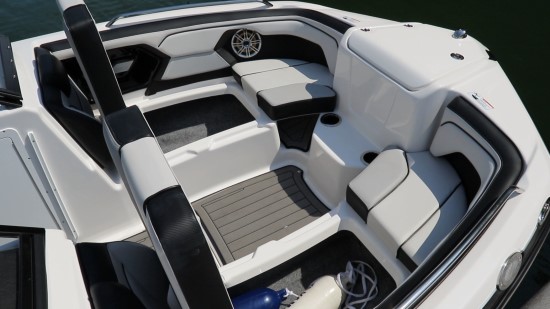

    Yamaha 212X bow storage
    Storage in the bow is accessed from hinged seat cushions that open from the front.

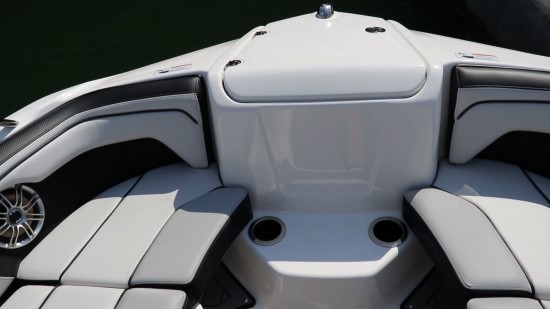

    Yamaha 212X foredeck
    A step leads up to the foredeck making it easy to board from a bow-in docking. It’s also a great place to jump into the water from.

    Observations

    It’s always interesting when we see a builder develop an upgrade to an existing model. Here, Yamaha seems to have given the 210 Series enough of a kick to justify the new numbering nomenclature, and moved it up to compete with the larger models. As for the 212X, we now not only have a comfortable boat for the family to show off to the friends and neighbors, we also have a capable watersports platform that even our pro wakeboarder was impressed with.

    Test Result Highlights

    • Top speed for the Yamaha 212X (2017-) is 50.8 mph (81.8 kph), burning 24.15 gallons per hour (gph) or 91.41 liters per hour (lph).
    • Best cruise for the Yamaha 212X (2017-) is 30.3 mph (48.8 kph), and the boat gets 2.81 miles per gallon (mpg) or 1.19 kilometers per liter (kpl), giving the boat a cruising range of 127 miles (204.39 kilometers).
    • Tested power is 2 x 1812cc Yamaha 1.8L HO.
