Trophy 2302 WA  (2005)
Trophy 2302 WA (2005)
Test# 111604900

Both versatile and functional, the 2302 Walkaround supplies all the important needs of an angler, such as a large cockpit area, generous live baitwell, high freeboard, and overnighting accommodations for those long fishing days.

Key Features

  • 10-Year Structural Limited Hull Warranty
  • Aggressive Grip Textured Surface
  • Hand-Laid Fiberglass
  • Meets Applicable UCSG Standards
  • NMMA Certification
  • 24-Gallon Aerated Baitwell
  • Cooler
  • Transom Walk-Through
  • Two Fishwells
  • Cushioned V-Berth
  • Portable Head
  • Single Burner Stove


Trophy 2302 WA (2005) Specifications
Length Overall 23' 5'' Dry Weight 4,091 lbs.
Beam 8' 6'' Tested Weight N/A
Draft 3'0'' Weight Capacity N/A
Draft Up N/A Person Capacity N/A
Draft Down N/A Fuel Capacity 125 gal.
Air Draft N/A Water Capacity none
Deadrise/Transom 20 deg. Length on Trailer N/A
Max Headroom N/A Height on Trailer N/A
Bridge Clearance 7' 11'' Trailer Weight N/A
Total Package Weight (Trailer,Boat & Engine) N/A
Prices, features, designs, and equipment are subject to change. Please see your local dealer or visit the builder's website for the latest information available on this boat model.

Engine Options

Trophy 2302 WA (2005) Engine options
Std. Power 1x 150-hp Mercury XL
Tested Power 1 x 225-hp Mercury Saltwater EFI outboard
Opt. Power 1x 150-hp Mercury DFI Optimax
1x 200-hp Mercury XL EFI
1x 225-hp Mercury DFI Optimax
1x 225-hp Mercury Four-Stroke

Trophy 2302 WA (2005) Photo Gallery

Trophy 2302 WA  (2005) Trophy2302-run1.jpg Trophy 2302 WA  (2005) Trophy2302-run2.jpg
Ready for some offshore fishing.

Both versatile and functional, the 2302 supplies all the important needs of an angler; such as a large cockpit area, a generous live baitwell and a high freeboard.

The 2302 allows you to overnight if needed.

One other notable feature is the excellent non-skid surface that Trophy molds into every deck they build.

Trophy 2302 WA  (2005) Trophy2302-helm1.jpg Trophy 2302 WA  (2005) Trophy2302-livewell.jpg
Complete intrumentation right at your fingertips.

A large stainless steel captains wheel provides added steering leverage, and the gunwale mounted engine controls by Mercury are close at hand.

Keep plenty of fish in this livewell.

The aft cockpit is rigged strictly for action. Starting with a large re-circulating live baitwell located on the starboard side.

Trophy 2302 WA  (2005) Trophy2302-cooler.jpg Trophy 2302 WA  (2005) Trophy2302-wakthrough.jpg
Keep your cold drinks at hand.

The captain and companion seats swivel in addition to adjusting fore and aft.

Convenient Walkthrough

Completing the stage is a rugged transom door with a walkthrough, and numerous rod holders mounted almost everywhere in the cockpit.

Trophy 2302 WA (2005) Captain's Report

Tested By Capt. Bob Smith

I had the opportunity to test some of Trophy’s new line up for 2005 recently outside of Knoxville, TN. Once again, the company has produced a great looking fishing rig that should be handy for the family or the pro angler. This one even had a small cabin to get in out of the weather or relax when the fish stop biting.

Trophy has maximized space, yet still delivers the enhanced ride, range and fishability you have come to expect from them. The Trophy Hull System gave us a smooth dry ride and the stability was great.

Up on the Bow

The foredeck is protected by high rails that will keep you aboard but seemed to lack a little muscle. Although you’ll find that the walkaround space is outstanding. I can imagine fighting a fish without stubbing my toes easily. The bow had a roller for an anchor and a heavy duty rub rail to protect the finish. All the topside walking surfaces and gunwale tops had aggressive grip texture to help you keep sure footing on board. The extra tall windshield on this model will keep most of the spray and cool wind from entering the cockpit. Our test model also had dual windshield wipers to keep the view clear in the rain.

Trophy 2302 WA

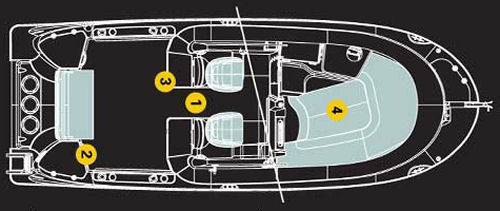

The floor layout of the 2302 WA.

Comfort at the Helm

The helm had a footrest that was at the perfect height for me at six feet tall. The large wheel should make handling the boat while someone fights a fish simple. Toggle switches and breakers are arranged to the left of the wheel along with a 12 volt socket for portable gear and cell phones. Analog gauges are arranged in an arc above the wheel with a compass centered on the top of the dash.

Our model was outfitted with a NavMan Fish 4500 fishing system with fishfinder and GPS as well as a NavMan VHF radio to stay in touch with your buddies on the other boats. The seats for the helm and navigator are wood-free and ours had removable cushions for easy clean up.

Fishing Features

Our test boat was also outfitted with comfortable combing pads to keep the legs bruise-free. The rear cockpit area offers lots of space for fishing. Our optional hard top had four rocket launcher style rod holders and a fish light mounted across the heavy duty aluminum rail along the back. Two more rod holders are in each gunwale, angled slightly from each other to prevent fouling while trolling. You also have two cup holders in each gunwale for your buddies to keep their cool drinks handy.

A folding bench seat across the stern adds more capacity when you take a larger group out. There is a baitwell in the starboard stern corner and a removable trash bin in the port corner. A three-step boarding ladder makes getting back on board from the water easier after cooling off with a dip.


The cabin offers respite from the weather or the blazing sun, if you can set the rods down long enough. A lockable door keeps things inside safe when stored on the trailer or in a slip. Several can relax inside or at least two can stretch out and nap. Life jackets can be stored in a mesh net in the peak. Our boat had a portable head installed just under the bench on the starboard aft section. In addition, we had a four rod holders mounted above the seat on the starboard side. If you want to serve snacks or play your own game of world class poker, a small table sets up in seconds.


The 2302 Walkaround for 2005 is 23 feet 5 inches in length overall with a beam width of 8 feet 5 inches. Fully rigged on the trailer, she measures 28 feet 1 inch. She weighs 3,832lbs dry and had a fuel capacity of 101 gallons. Her draft requirements are 19 inches with the outboard up and 37 inches with it down.


We tested the 2302 on an inland lake and found her top speed to be 42.1mph powered by a 225hp Mercury Salt Water Series outboard. Her cruise speed was 28.6mph with a full tank range of 333 miles. She was out of the hole in just 3.7 seconds and passing 30mph in only 7.2 seconds.

If you are looking for a 20 something fishing boat that offers amenities for tournament fishing and for a day outing with the family, the new 2302 Walkaround from Trophy should definitely be on your list of boats to test.

Trophy 2302 WA (2005) Test Result Highlights

  • Top speed for the Trophy 2302 WA (2005) is 42.1 mph (67.8 kph), burning 21.6 gallons per hour (gph) or 81.76 liters per hour (lph).
  • Best cruise for the Trophy 2302 WA (2005) is 28.6 mph (46 kph), and the boat gets 2.96 miles per gallon (mpg) or 1.26 kilometers per liter (kpl), giving the boat a cruising range of 333 miles (535.91 kilometers).
  • Tested power is 1 x 225-hp Mercury Saltwater EFI outboard.
For complete test results including fuel consumption, range and sound levels
go to our Test Results section.

Standard and Optional Equipment

Trophy 2302 WA (2005) Standard and Optional Equipment
Head: Portable Standard
Head: Fixed Optional
Power Steering Optional
Trailer Optional
Trim Tabs Standard
Washdown: Raw Water Optional
Stove Standard
Exterior Features
Hardtop Optional
Ice Chest Standard
Outlet: 12-Volt Acc Standard
Swim Ladder Standard
Transom Door Standard
Bimini Top Standard

Standard = Standard Optional = Optional

Trophy 2302 WA (2005) Warranty

Trophy 2302 WA (2005) Warranty Information
Warranties change from time to time. While BoatTEST.com has tried to ensure the most up-to-date warranty offered by each builder, it does not guarantee the accuracies of the information presented below. Please check with the boat builder or your local dealer before you buy any boat.

Full Warranty Information on this brand coming soon!
