Brief Summary

The Ranger 2310 Bay Ranger should be a good shallow water performer thanks to a draft of just 13.5'' (.34 m), yet with a 100'' (2.54 m) beam and a 23'4" (7.11 m) LOA, she's big enough to fish off the beaches for tarpon or stripers in good weather. The 9' (2.74 m) locking rod locker on the port side of the bow platform includes tubes to protect sensitive fly rod tips. The batteries and battery switch are in the leaning post behind the helm, not in the bilge at the transom -- this not only keeps them away from corrosive saltwater, but also moves weight forward, resulting in quicker planing.

Key Features

  • Recirculating aerated livewell/baitwell
  • Hydraulic steering
  • Boarding ladder
  • Custom fitted premium marine upholstery leaning post with storage at helm
  • Rear jump seats with storage
  • Aft mounted rod holders
  • Removable fiberglass cooler in front of console
  • Trailer with aluminum wheels with matching spare tire and wheel
  • Specifications

    Length Overall 23' 4''
    7.11 m
    Beam 100''
    2.54 m
    Dry Weight 2,750 lbs.
    1,247 kg
    Tested Weight N/A
    Draft 13.5''
    .34 m
    - Draft Up N/A
    - Draft Down N/A
    - Air Draft N/A
    Deadrise/Transom N/A
    Max Headroom open
    Bridge Clearance N/A
    Weight Capacity N/A
    Person Capacity N/A
    Fuel Capacity 76 gal.
    288 L
    Water Capacity N/A
    Length on Trailer N/A
    Height on Trailer N/A
    Trailer Weight N/A
    Total Weight
    (Trailer, Boat, & Engine)
    N/A

    Prices, features, designs, and equipment are subject to change. Please see your local dealer or visit the builder's website for the latest information available on this boat model.

    Engine Options

    Std. Power Not Available
    Tested Power Currently no test numbers
    Opt. Power 13 Evinrude engines from 200-hp to 300-hp
    5 Mercury engines from 225-hp to 300-hp
    4 Suzuki engines from 200-hp to 300-hp
    5 Yamaha engines from 225-hp to 300-hp

    Captain's Report

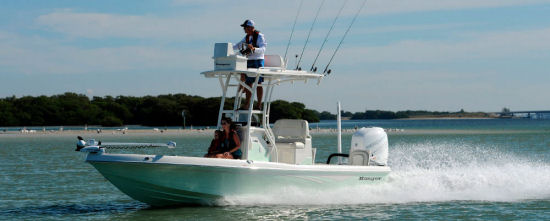

    Ranger Boats 2310 Bay Ranger running shot
    With the optional second helm station above, the Ranger Boats 2310 Bay Ranger becomes a serious coastal fishing boat.

    Overview

    The 2310 Bay Ranger is a shallow-draft fishing boat, purpose built from feedback garnered from inshore tournament fishermen. She’s a small boat, but big on features that cater to a day on the water with wet lines.Her low, wide bow flare helps deliver a dry ride in coastal chop and creates a large bow casting deck that uses up every inch of the boat’s 100” (254 cm) beam. The floor plan is laid out for quick passage from bow to stern and the cockpit is deep enough to make everyone safe. Ranger packed the boat with storage so that the deck will remain uncluttered.For fishing, there are two on board livewells and rod storage beneath the bow deck. A cooler with a cushioned top serves as the bow seating and the leaning post has space for two people. Aft jump seats fold away to leave the stern clear for fishing when not in use.Buyers can choose 2-stroke or 4-stroke outboard power ranging from 225-hp to 300-hp from Mercury, Yamaha, Evinrude or Suzuki. Finally, the 2310 Bay Ranger comes on a trailer custom-built for the boat.

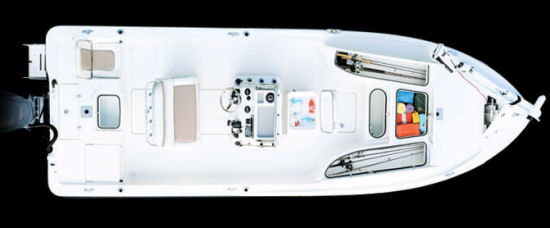

    Ranger Boats 2310 Bay Ranger floor plan
    This photo gives an idea of just how much storage Ranger packs into this 23’4” (7.11 m) boat.

    Features Inspection

    Reinforced Fiberglass Construction.

    Instead of coring materials such as foam or balsa wood, Ranger uses “pultruded” fiberglass panels in its boats. Pultrusion is a manufacturing process in which the glass fibers are pulled through resin and into a heated die during which the resin undergoes polymerization. When the pieces of pultruded fiberglass cool, they harden like steel, but are lighter and more flexible, making them ideal for use as coring material in the hull bottom, transom and deck. Gussets formed out of the pultruded fiberglass reinforce the transom as well.Additionally, the one-piece fiberglass stringer grid bonds into the hull as a single piece and all empty cavities throughout the boat are filled with flotation foam.

    Trailer.

    The 2310 Bay Ranger rides on a tandem-axle trailer with aluminum wheels with a matching spare, a swing-away tongue, custom-matching fiberglass fenders, hydraulic surge disc brakes and LED lighting.

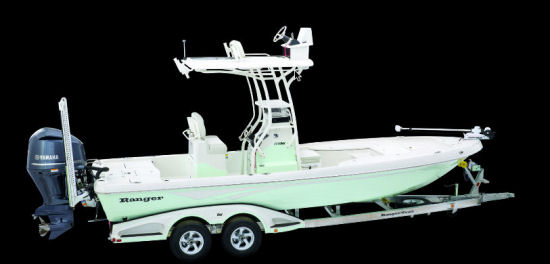

    Ranger Boats 2310 Bay Ranger trailer
    The 2310 Bay Ranger rides low on the custom-built Ranger Trail trailer, which should make the package easier to tow.

    The Bow

    Anglers covet space to work and the 2310 Bay Ranger has it in spades on her forward casting deck. An anchor locker in the bow has space for ground tackle and there is a pull-up cleat to secure the rode. Additionally, the 2310 Bay Ranger can be equipped with a trolling motor.

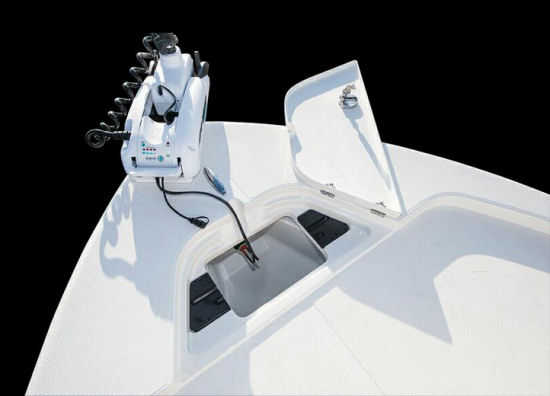

    Ranger Boats 2310 Bay Ranger trolling motor
    When the 2310 Bay Ranger is outfitted with a trolling motor, the plug for the unit is inside the anchor locker. Notice how the wire sits in the molded notch.

    Serious Storage.

    For a boat of this size, the 2310 Bay Ranger has a wealth of storage, especially in the forward section. All of the hatches for the lockers open on stainless steel gas struts. There’s a 9’ (2.74 m) long rod locker to port with open space to starboard that could be equipped to hold more tackle as well. The combination bait and livewell is in the center step and there’s a large wet locker in the nonskid sole just ahead of the cooler that could be good for items such as a casting net.

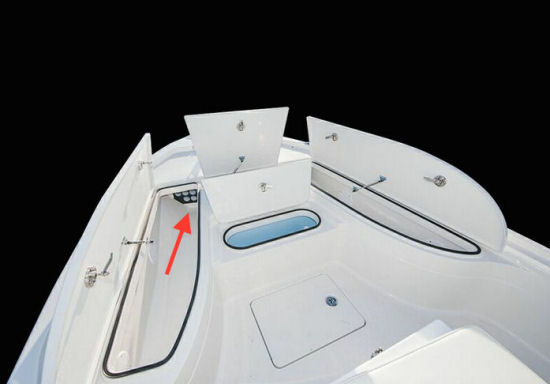

    Ranger Boats 2310 Bay Ranger pvc tubes
    The port locker has PVC tubes in the forward end to protect the eyelets on the fishing rods stored in it.

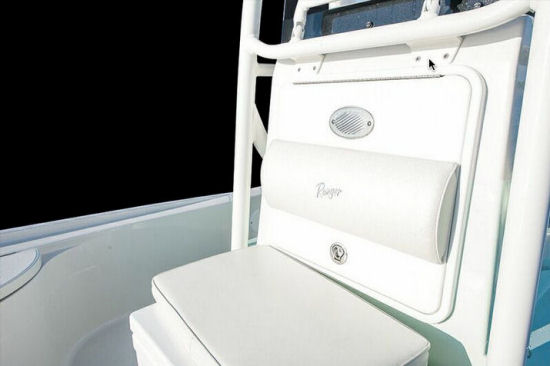

    Ranger Boats 2310 Bay Ranger cooler cushion
    The top of the cooler has a cushion, which along with the one on the console access hatch, should create a pretty comfortable seat.

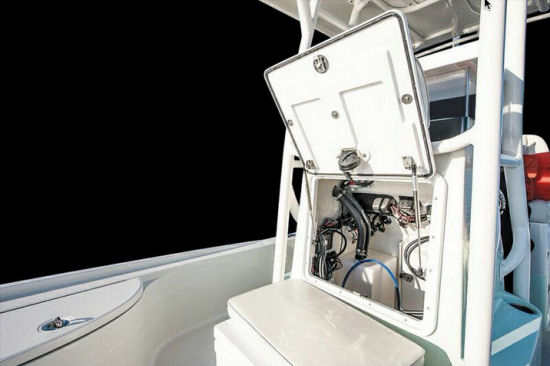

    Ranger Boats 2310 Bay Ranger access
    With the console hatch open, owners or service personnel would have convenient access to helm and/or electronics rigging along with the hydraulic pump for the jackplate.

    The Helm.

    Ranger puts the steering wheel to the port side of the helm console to allow two people to share the leaning post when underway. The dash is finished in shiny white fiberglass, which could cause some glare on a sunny day, especially if the boat doesn’t have the optional T-top or second station above to provide shade.We like that the manufacturer provides a full complement of instruments, including a tachometer, speedometer, and fuel, trim and water pressure gauges as standard equipment. The same goes for the trim tabs, which will help settle the ride on a choppy day. Accessories are controlled by digital switches with circuit breakers. Ahead of the driver’s knees, the aft console hatch has a glove box ideal for small items.

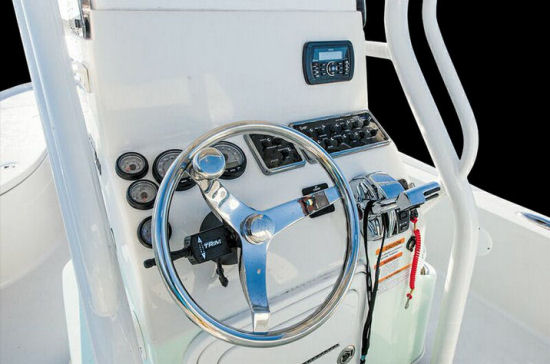

    Ranger Boats 2310 Bay Ranger helm
    The 2310 Bay Ranger’s dash panel has space for optional electronics. This model has the trim control for the optional jackplate conveniently mounted on the steering column.

    The Leaning Post.

    The two-person leaning post is wide enough to support the driver and observer. It has four rod holders and two cup holders in the backrest. When the 2310 Bay Ranger was introduced, a highlight was that the aft side of the leaning post was now home to the batteries and main battery switch, which got them out of the stern where they could get wet, which speeds corrosion.

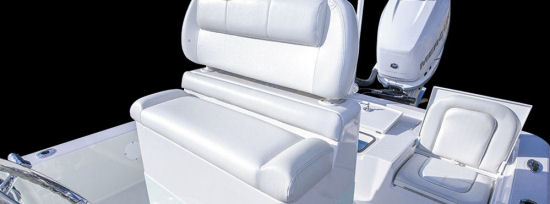

    Ranger Boats 2310 Bay Ranger removable back rest
    With the removable backrest in place, the leaning post has space for two people to sit.

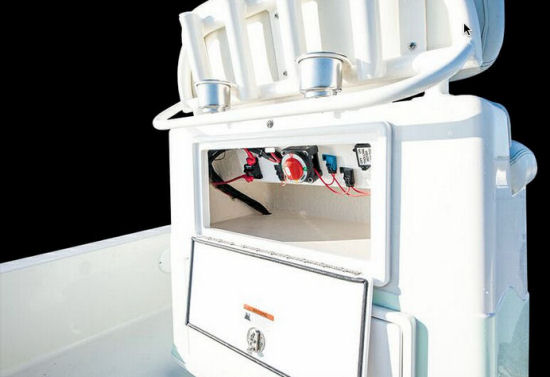

    Ranger Boats 2310 Bay Ranger battery switch
    Locating the battery switch and main circuit breaker in the aft side of the leaning post provides great access and greatly reduces the likelihood of them getting wet.
    Ranger Boats 2310 Bay Ranger battery access
    Anyone who’s ever had to change a battery will appreciate this easy access.

    The Aft Cockpit.

    Abaft the leaning console, there’s decent space to fish in the stern of the 2310 Bay Ranger. The aft livewell is recirculating and aerated with a high-speed pickup. The jump seat bottom cushions fold up to provide convenient access to items such as the trim pump and added wet storage.

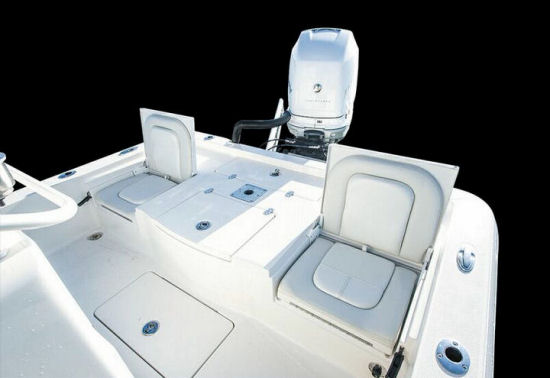

    Ranger Boats 2310 Bay Ranger jump seats
    The folding aft jump seats increase the passenger capacity when deployed and when they’re down, they leave an uncluttered deck for fighting fish.

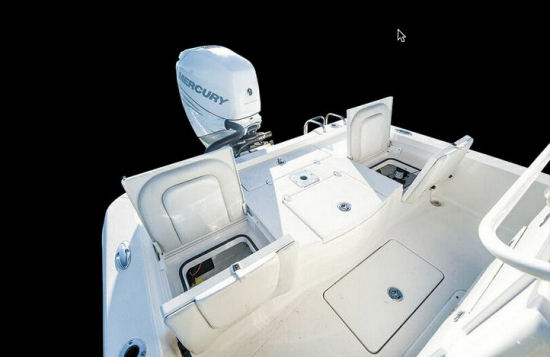

    Ranger Boats 2310 Bay Ranger bottom cushions
    The bottom cushions for the aft jump seats open to provide access to accessories such as bilge and livewell pumps.

    Power

    We haven’t tested the 2310 Bay Ranger, so we don’t have numbers on it. Base power for the boat is a 250-hp 2- or 4-stroke outboard from Evinrude, Yamaha, Mercury or Suzuki, with options up to 300-hp.

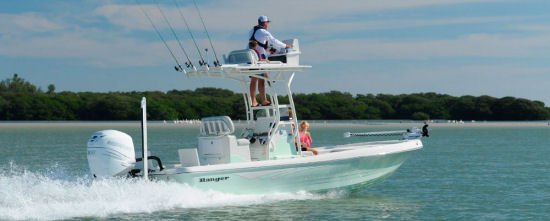

    Ranger Boats 2310 Bay Ranger running shot
    Notice how the 2310 Bay Ranger’s chines knock down spray when the boat is running. It barely comes up the sides.

    Options to Consider

    • Trolling motor
    • Humminbird or Lowrance GPS/fishfinder at helm
    • Humminbird or Lowrance fishfinder in bow
    • Lowrance or Raymarine VHF radio
    • Compass
    • Shallow-water anchor from Minn Kota or Power Pole
    • Minn Kota or Dual Pro battery charger
    • Gunwale-mounted rod holders
    • T-top or hardtop with second station
    • Hamby’s 6’ (1.83 m) keel protector
    • Trim switch on throttle lever
    • Compartment and Livewell Light Package
    • Deluxe boat cover
    • Indicator switch replacement for Lenco trim tabs

    Price

    The MSRP starts at $63,000 with standard equipment and a 250-hp outboard.

    Warranty

    Limited warranty on structural hull defects for the period of ownership for the first North American owner. For the second North American retail purchaser, the limited warranty period is 10 years. Three year warranty is on the following: carpet fade, steering helm, cylinder, hoses and cables, aeration pumps, valves and timers, bilge pump, fiberglass boat electrical system, seat pedestals, fuel tanks, deck hardware, factory-installed battery chargers, and on the Ranger Trail trailer. One year warranty is on gelcoat.

    Ranger Boats 2310 Bay Ranger beached
    For families who plan to beach the 2310 Bay Ranger, a 6’ (1.83 m) keel guard is an available option.

    Observations

    The 2310 Bay Ranger is a bay boat designed first and foremost to fish. She’s equipped with all requisite fishing gear, such as the livewell, baitwell, and rod storage and her large forward casting deck has space for two people to fish comfortably. Families can add some comfort-oriented items to make the boat more versatile.Storage capacity looks good for a boat of this size, especially in the bow, and the cooler doubling as a seat saves space.The choice of 250-hp and 300-hp outboard motors from all of the major manufacturers should satisfy a wide variety of owners and the fact that the trailer comes as part of the package simplifies the purchasing process and experience.

    Standard and Optional Features

    Marine Electronics

    GPS/Chart Optional
    VHF Radio Optional

    Systems

    Battery Charger/Converter Optional
    CD Stereo Optional
    Head: Portable Optional
    Shore Power Standard
    Trim Tabs Standard
    Washdown: Fresh Water Optional
    Washdown: Raw Water Optional

    Exterior Features

    Hardtop Optional
    Outlet: 12-Volt Acc Standard
    Swim Ladder Standard
