Cruisers Yachts 560 Express (2011-)
(w/ 2 x 700-hp Volvo Penta D12 - Diesel)

X

Join BoatTest for FREE Now!

Login

Own a boat? Please fill out the following options.

By submitting this form, you acknowledge that you have read and agree with the Privacy Policy & Terms of Use of BoatTEST.com
Signup

Enter in your email below to view all content

;
Do you have a question?Ask a question about this boat or engine?
See the PRICE by becoming a BoatTEST member.
(It's quick and FREE!)


Brief Summary

If your favorite song is “Don’t Fence Me In,” you’ll love the Cruisers Yachts 560 Express: It’s a cavernous vessel with room for the whole gang, even if your “gang” plays on the Packers’ offensive line. Did we say this boat is huge? One of the widest beams in class at 16’ (4.92 m), and possibly the most spacious bridge/cockpit in class. A pair of Volvo Penta 715-hp diesels will push her over 40 mph, too – fast enough to run down most other yachts in class.

Key Features

  • Swim platform seating area with storage
  • Transom davit storage with fiberglass cover, davit optional
  • Wraparound cockpit seating with electric sunlounge
  • Storage under the cockpit seats
  • Fully-equipped wet bar with refrigerator/icemaker and optional electric grill
  • Aluminum hardtop with power sunroof
  • Dual captain’s chair with walkaround helm area
  • Full fiberglass cabin liner
  • Raised panel cherry wood cabinet doors
  • Cresent shaped dinette that electrically converts to sleeper
  • Self-storing actuated solid cherry dinette table
  • Specifications

    Length Overall 58' 0''
    17.7 m
    Beam 16' 0''
    4.9 m
    Dry Weight 46,000 lbs.
    20,865 kg
    Tested Weight N/A
    Draft 46''
    1.2 m
    - Draft Up N/A
    - Draft Down N/A
    - Air Draft N/A
    Deadrise/Transom N/A
    Max Headroom 6' 6''
    2.0 m
    Bridge Clearance 13' 7''
    4.1 L
    Weight Capacity N/A
    Person Capacity N/A
    Fuel Capacity 650 gal.
    2,461 L
    Water Capacity 149 gal.
    564 L
    Length on Trailer N/A
    Height on Trailer N/A
    Trailer Weight N/A
    Total Weight
    (Trailer, Boat, & Engine)
    N/A

    Prices, features, designs, and equipment are subject to change. Please see your local dealer or visit the builder's website for the latest information available on this boat model.

    Engine Options

    Std. Power 2 x 715-hp Volvo Penta D12
    Tested Power 2 x 700-hp Volvo Penta D12 - Diesel
    Opt. Power 2 x 775-hp Volvo Penta D12
    2 x 700-hp Volvo Penta D12

    Test Results - Change Measurement Unit

    RPM MPH Knots GPH MPG NMPG Stat. Mile NM dBa
    525 7.5 6.5 2.8 2.7 2.3 1567 1363 68
    1000 11.2 9.7 10.8 1.0 0.9 604 525 79
    1250 12.5 10.9 20.4 0.6 0.5 359 312 79
    1500 17.4 15.1 29.8 0.6 0.5 342 297 80
    1750 24.3 21.1 36.6 0.7 0.6 388 337 82
    2000 32.3 28.1 46.8 0.7 0.6 404 351 90
    2250 37.7 32.7 63.6 0.6 0.5 346 301 88
    2350 40.3 35.0 75.0 0.5 0.5 313 272 86
    RPMNMKMKPHLPHKPLdBA
    525 1363 2522 12.10 10.60 1.14 68
    1000 525 972 18.00 40.88 0.44 79
    1250 312 578 20.10 77.22 0.26 79
    1500 297 550 28.00 112.80 0.25 80
    1750 337 624 39.10 138.55 0.28 82
    2000 351 650 52.00 177.16 0.29 90
    2250 301 557 60.70 240.75 0.25 88
    2350 272 504 64.90 283.91 0.23 86

    All fuel consumption numbers are the total for all engines in the boat. Speeds are measured with Stalker ProSports radar gun or GPS. Fuel consumption (gallons per hour) measured with Floscan digital fuel-flow meter or by on-board factory-installed diagnostic instruments. Range is based on 90% of published fuel capacity. Sound levels determined using Radio Shack digital decibel meter on A scale. 68 dBA is the level of normal conversation. Time to plane is measured from start of acceleration to formation of rooster tail behind boat.

    Performance Chart

    Performance Chart

    Acceleration Times & Test Conditions

    Time To Plane 14.8 sec.
    0 to 30 21.2 sec.
    Ratio N/A
    Props 4 blade 28 x 41 x 2.5
    Load 2 person, full fuel, no water, 25 lbs of gear
    Climate 70 deg.; 44% humid.; wind: 10-15 kts; seas; 1-2 ft

    Cruisers Yachts 560 Express (2011-) Line Drawing


    Captain's Report

    Learn about the back story of Cruisers Yachts here...

    Cruisers Yachts 560 Express

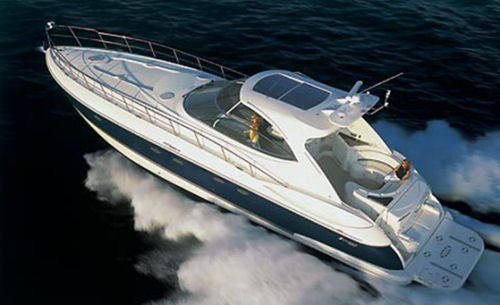

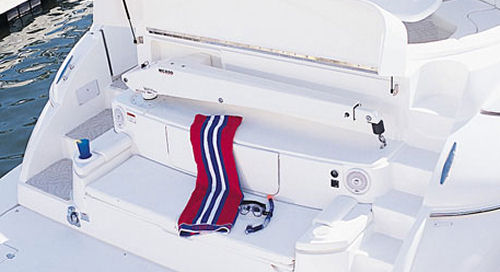

    From its extended swim platform to aircraft-carrier foredeck, the Cruisers Yachts 560 Express is one roomy vessel. The platform can fit a RIB or inflatable; an optional davit makes launch and retrieval easy.

    Back Story

    The first boat to carry the Cruisers nameplate hit the water in 1956, but the company is older than that: it started out as Thompson Bros. in 1904, in Peshtigo, WI. The second generation of Thompsons moved to Oconto in the 1950s, and started building outboard-powered lapstrake cabin cruisers. In ’56, the company became Cruisers, Inc.

    Cruisers Yachts 560 Express
    This was one of the first boats to install the aft rumble seat, something that has since been copied by many builders. There is terrific storage underneath as it opens up with gas-assisted struts. You control the Glendinning cable masters with a switch inside and there's room for good size fenders. The davit makes it easy to handle the tender and it is not often seen on a transom like this.

    Like many boat companies back then, Cruisers was sold in the early 70s and wood replaced fiberglass. A Thompson stayed at the helm until 1979, but then the company was sold again and then, yet again. Unlike many old-time companies that went through repeated ownership changes Cruisers survived, and we suspect that was due to its good reputation and a core of middle management and shop floor personnel that were fiercely loyal to the brand and its customers. The 560 is the company’s largest model.

    Cruisers Yachts 560 Express

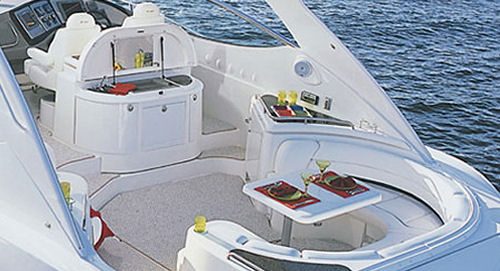

    The cockpit includes a C-shaped lounge that seats 6-8 people and a wet bar on an island above the helm seats. An electric sunpad emerges from under the aft seating at the press of a button. Please note that the helm can be accessed from either the port or the starboard side – this is the only express cruiser that we know of on earth where that is possible. All that this cockpit needs is a teak deck.

    Let Us Entertain You

    Aboard the Cruisers 560, you never have to leave the cockpit area to entertain guests. You can easily seat 12 people comfortably and with a lot of stowage underneath they’ll have a place to put their things. A wet bar console includes an electrical outlet for your blender and a freshwater sink. A mini-fridge with icemaker is underneath adjacent to a bottle locker and stowage. Just to starboard is an optional helm A/C unit that is great when the canvas is on. A Clarion CD player is standard. This is one of the few (if any) express cruisers built anywhere in the world with an aluminum hardtop. Virtually every other express in class has a hardtop made of fiberglass. What’s the difference, you might ask? There are several: a) Aluminum is lighter than fiberglass, so the boat weighs less, goes faster, etc.; b) Because the hardtop is lighter, the supports do not have to be so robust, meaning the dog-bone is narrower, and the forward supports are a small diameter, all of which improves visibility for the skipper; and c) Lighter weight of the hardtop means the boat has a lower CG than it would have with fiberglass which means the vessel won’t be quite so rolly.Another feature of the hardtop is its acrylic, electric sun window just above the cockpit. Press a button and an abundance of light and fresh sea air will flood the cockpit and the babes can catch the rays while you’re underway.

    Cruisers Yachts 560 Express

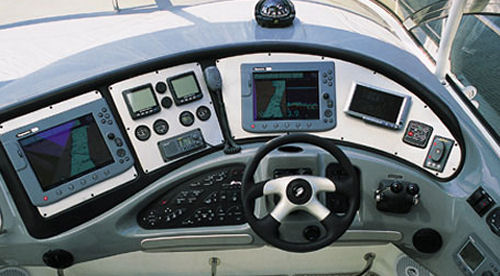

    The ample helm is laid out in a semi-circle; electronic controls are from Volvo. Cruisers Yachts has simplified the instrumentation by grouping all the rocker switches onto one panel. A keyless ignition system adds to this Cruisers’ mystique and keeps your vessel safe. Note the bow and stern thruster control on the far right side of the instrument panel, just above the sticks.

    Below Decks

    Cruisers Yachts 560 Express

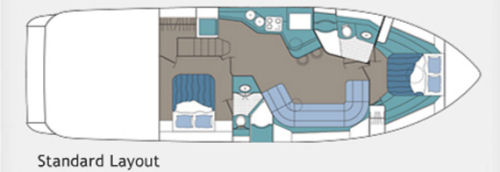

    The standard layout combines a sumptuous master stateroom with full standing headroom, the Versailles-sized saloon and a typical forward stateroom with island berth. You can swap the closet for an office; this would be our choice. We’re told that at least one of these boats has been built with a third cabin replacing the huge settee.
    Cruisers Yachts 560 Express

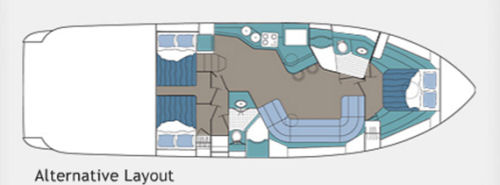

    However, if you have a raft of friends you can shoehorn two double cabins aft, sharing a head, and move the master forward. The U-shaped sofa electrically transforms into a bed, so you can sleep as many as eight people on this boat without resorting to sleeping bags on the cabin sole.

    Come down the companionway stairs to be greeted with the large, wide open main saloon. The inside has gorgeous woodworking with a cherry finish, and most folks won’t need to slouch as there is 6’ 6” (2.0 m) of headroom.

    Cruisers Yachts 560 Express

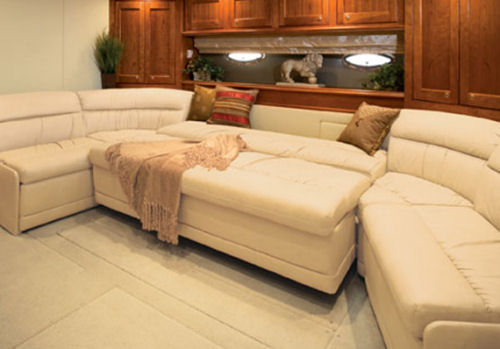

    Eight to ten people can be seated on the ultraleather love seats and electrically actuated sofa. The decorative panel overhead covers the air conditioning which distributes cool air evenly instead of blasting it out of a grate somewhere and gives 360-degree dispersion. The table emerges electrically from the floor when it’s needed and retracts when it’s not.

    Included within the saloon is a little cocktail area with room to store bottles, glasses, and anything else you might need during an impromptu happy hour. There is a good amount of stowage above and below and a light-up vanity at eye level.

    Cruisers Yachts 560 Express
    Stow the table and you can convert the settee to a double bed sleeper. It’s electric, too.
    Cruisers Yachts 560 Express

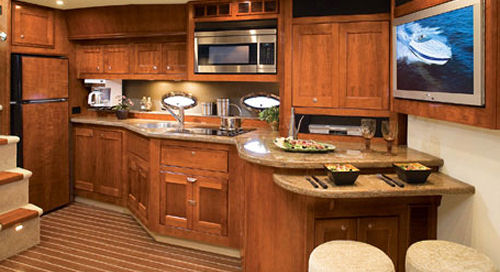

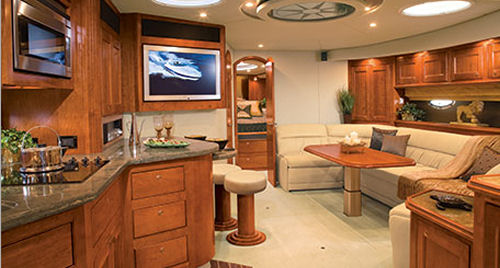

    The galley is vast. A solid-surface counter leads to a breakfast nook with two stools which are adjacent to a big-screen TV. The galley also has a large refrigerator/freezer, two stainless steel sinks, three-burner stovetop and a microwave oven complete the picture. Stowage is not a problem, either as the six large lockers have room enough to swallow even the largest pots.

    Accommodations

    Cruisers Yachts 560 Express

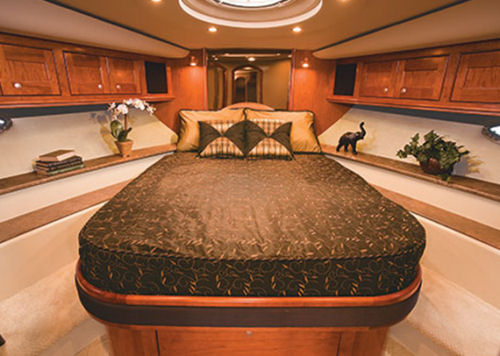

    The guest stateroom is typical, with a centerline island double berth reached via 2 steps on either side. It’s a bit awkward, but necessary because of the bow flare. However, there’s lots of stowage with small lockers above and 2 large drawers at the foot of the bed. An overhead hatch brings in natural light. A large cedar lined hanging locker with shelf is to starboard.
    Cruisers Yachts 560 Express

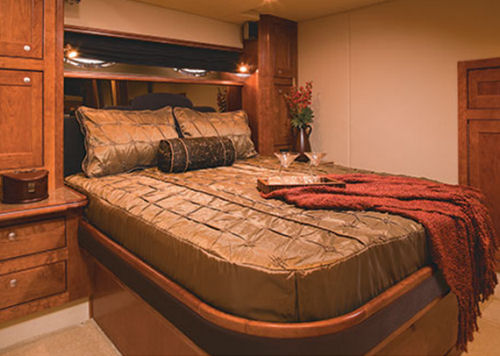

    The master stateroom is in the mid cabin and has an easily accessible athwartships berth. Under the bridge deck and low in the boat, this is by far the steadiest cabin at sea. There is a large amount of stowage in the walk-in closet. A built-in 20'' television faces the berth. A combo washer/dryer hides behind the door at far right, and there is full standing headroom throughout.
    Cruisers Yachts 560 Express

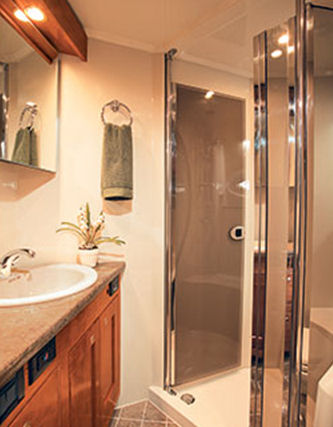

    The master head is as roomy as you’d expect and is complete with a separate stall shower to keep things dry. It’s ensuite to the stateroom with a second head is forward.

    Performance

    The 560 can hold its own with a top speed of 40.3 mph and a best cruise of 32.3 mph at 2000 rpm. Twin 700-hp Volvo Penta D12 diesels with ZF V-drive transmissions gives this luxurious beauty some strength to match its style. Everything in the engine room is well labeled and easy to access. Cruisers Yachts has mounted the engines on steel beds directly on top of the stringers. The V-drives are fitted with dripless shaft seals. By the way if you are a veteran yachtsman and are old enough to remember when V-drives robbed power and were problematical, those days are long over. Modern ZF V-drives absorb very little power and are considered as reliable as straight drives.The impressive 560 packs every ounce of luxury and style into its 58-foot length. She is a massive vessel with a 16’ beam and weighing in at a dry weight of 46,000 lbs. Her fuel capacity is approximately 650 gallons which gives her one of the best ranges in class.

    Recommendation

    There are not too many boats built in this class, so anyone considering buying one should look at all of them and not just go gaw-gaw over the first one seen. They are all impressive-looking when you first step aboard because they are so big. But after you spend time on these boats you begin to pick up on what may at first appear to be subtitle differences. Drill down, and some of those differences become pretty important. Given the size, displacement, equipment and design innovations of this boat, we consider it to be the best value in the 56' express cruisers class.

    Cruisers Yachts 560 Express

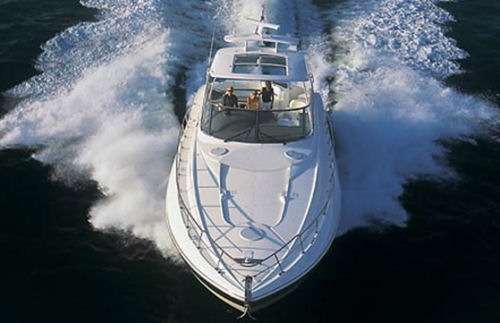

    Coming at you: the Cruisers Yachts 560 Express is big, wide and quick. It gives you lots of room and with a water view.

    Test Result Highlights

    • Top speed for the Cruisers Yachts 560 Express (2011-) is 40.3 mph (64.9 kph), burning 75.0 gallons per hour (gph) or 283.88 liters per hour (lph).
    • Best cruise for the Cruisers Yachts 560 Express (2011-) is 32.3 mph (52 kph), and the boat gets 0.69 miles per gallon (mpg) or 0.29 kilometers per liter (kpl), giving the boat a cruising range of 404 miles (650.17 kilometers).
    • Tested power is 2 x 700-hp Volvo Penta D12 - Diesel.

    Standard and Optional Features

    Marine Electronics

    Autopilot Optional
    GPS/Chart Optional
    VHF Radio Optional

    Systems

    Air Cond./Heat Standard
    Battery Charger/Converter Standard
    CD Stereo Standard
    Dripless Shaft Seals Standard
    Head: Fixed Standard
    Shore Power Standard
    Trim Tabs Standard
    TV/DVD Standard
    Washdown: Fresh Water Optional
    Water Heater Standard
    Windlass Standard

    Galley

    Coffeemaker Standard
    Icemaker Standard
    Microwave Standard
    Refrigerator Standard
    Stove Standard

    Exterior Features

    Carpet: Cockpit Standard
    Hardtop Standard
    Swim Ladder Standard
    Swim Platform Standard
    Transom Shower Standard
    Wet bar Standard

    Canvas

    Cockpit Cover Optional

    Boats More Than 30 Feet

    Bow Thruster Optional
    Davit Optional
    Generator Standard
    Oil Change System Optional
    Vacuum Standard
