Chaparral 230 SunCoast (2016-)
(w/ 1 x 200-hp Yamaha F200XB)

X

Join BoatTest for FREE Now!

Login

Own a boat? Please fill out the following options.

Signup

Enter in your email below to view all content

Do you have a question?Ask a question?
See the PRICE by becoming a BoatTEST member.
(It's quick and FREE!)


Brief Summary

Deckboats are among the most popular boats on the water because they offer so many advantages. They have the layout of a bowrider, the capacity of a pontoon and the handling of a mono-hull for exploring beyond the protected rivers and lakes. Most are easily towed behind even a modest SUV. They can easily be stored in the driveway or next to the garage. For onsite storage, they’ll fit in any rack room.

The 230 SunCoast is good for entertaining, cruising, watersports, lunches, coving, beaching, and any other entertaining that boaters wish to do.

Key Features

  • Color-coordinated Sunbrella Bimini top with windscreen and logo boot in Black, Blue, or Red
  • Enclosed head with lockable door
  • Bow lounge cushions with storage underneath
  • 14 quart built-in insulated cooler
  • 25 quart carry-on cooler
  • Port seat reversible oasis lounge (folds to provide aft facing seat)
  • Premium sound system includes 4-speakers AM/FM/WB and Bluetooth stereo
  • U-Shaped aft lounge seating with large storage compartment underneath
  • Hanging rod storage
  • Sea Star hydraulic tilt steering
  • Specifications

    Length Overall 22'10''
    6.96 m
    Beam 8'6''
    2.59 m
    Dry Weight 3,500 lbs.
    1,588 kg
    Tested Weight 4,350 lbs.
    1,973 kg
    - Draft Up 15''
    38 cm
    - Draft Down 32''
    81 cm
    - Air Draft N/A
    Deadrise/Transom 20-deg.
    Max Headroom open
    Bridge Clearance 7' 10''
    2.39 m (max)
    Weight Capacity N/A
    Person Capacity 12
    Fuel Capacity 70 gal.
    265 L
    Water Capacity 13.50 gal.
    51 L
    Length on Trailer N/A
    Trailer Weight N/A

    Prices, features, designs, and equipment are subject to change. Please see your local dealer or visit the builder's website for the latest information available on this boat model.

    Engine Options

    Std. Power Not Available
    Tested Power 1 x 200-hp Yamaha F200XB
    Opt. Power 1 x 200-hp Mercury Verado 200XL 4-stroke 25''
    1 x 250-hp Mercury Verado 250XL 25"
    Four Yamaha engines at 200-hp and 250-hp

    Test Results - Change Measurement Unit

    RPM MPH Knots GPH MPG NMPG Stat. Mile NM dBa
    600 3.2 2.7 0.4 7.9 6.8 496 431.4 63
    1000 4.8 4.2 0.8 6.0 5.2 378 328.7 65
    1500 6.2 5.3 1.2 5.1 4.5 323 280.8 71
    2000 7.3 6.3 2.1 3.6 3.1 224 195.1 75
    2500 8.2 7.1 3.3 2.5 2.2 158 137.4 77
    3000 18.0 15.6 4.6 3.9 3.4 246 213.8 82
    3500 23.3 20.2 5.6 4.2 3.6 264 229.5 88
    4000 28.1 24.4 7.5 3.7 3.3 236 205.3 90
    4500 32.4 28.1 8.7 3.7 3.2 234 203.7 93
    5000 35.5 30.9 10.6 3.4 2.9 212 184.3 91
    5500 41.7 36.3 16.2 2.6 2.2 163 141.5 93
    6000 44.7 38.8 17.7 2.5 2.2 159 138.6 93
    RPMNMKMKPHLPHKPLdBA
    600 431.4 798 5.10 1.51 3.36 63
    1000 328.7 608 7.70 3.03 2.55 65
    1500 280.8 520 10.00 4.54 2.17 71
    2000 195.1 360 11.70 7.95 1.53 75
    2500 137.4 254 13.20 12.49 1.06 77
    3000 213.8 396 29.00 17.41 1.66 82
    3500 229.5 425 37.50 21.20 1.79 88
    4000 205.3 380 45.20 28.39 1.57 90
    4500 203.7 377 52.10 32.93 1.57 93
    5000 184.3 341 57.10 40.13 1.45 91
    5500 141.5 262 67.10 61.32 1.11 93
    6000 138.6 256 71.90 67.00 1.06 93

    All fuel consumption numbers are the total for all engines in the boat. Speeds are measured with Stalker ProSports radar gun or GPS. Fuel consumption (gallons per hour) measured with Floscan digital fuel-flow meter or by on-board factory-installed diagnostic instruments. Range is based on 90% of published fuel capacity. Sound levels determined using Radio Shack digital decibel meter on A scale. 68 dBA is the level of normal conversation. Time to plane is measured from start of acceleration to formation of rooster tail behind boat.

    Performance Chart

    Performance Chart

    Acceleration Times & Test Conditions

    Time To Plane 3.7 sec.
    0 to 30 8.3 sec.
    Ratio N/A
    Props 14.5x15
    Load 2 persons, full load, water, 1/3 water, 50 lbs. of gear
    Climate 89 deg., 78 humid.; wind: 10-15 mph; seas: calm

    Captain's Report

    Overview

    Deckboats are among the most popular boats on the water because they offer so many advantages. They have the layout of a bowrider, the capacity of a pontoon and the handling of a mono-hull for exploring beyond the protected rivers and lakes. Most are easily towed behind even a modest SUV. They can easily be stored in the driveway or next to the garage. For onsite storage, they’ll fit in any rack room.The 230 SunCoast is good for entertaining, cruising, watersports, lunches, coving, beaching, and any other entertaining that boaters wish to do.

    Chaparral 230 SunCoast
    Notice the main characteristic of the deckboat design in that the bow is widened rather than coming to a sharp V. This allows more room for seating forward.

    Extended V-Plane and Hydro-Lift

    One feature that distinguishes Chaparral from the pack is the Extended V-Plane. The Extended V-Plane elongates the running surface well past the mounting point of the propulsion.

    Chaparral 230 SunCoast
    Here we can see how the hull extends past the mounting point of the transom, and then the swim platforms extend even farther beyond the hull.

    Features Inspection

    With any deckboat, the focus is on being able to accommodate the many guests an owner will have. This boat is rated for up to 12 people.

    Bow

    When it comes to seating, the bow has the layout of a typical bowrider: two lounge seats to either side flank a forward cushion. An optional bow table ($294) fixed to a side-mount pedestal base adds even more utility to the area, making it a comfortable dining space for al fresco lunches or sunset cocktails. The wraparound bolsters allow the seats to be used in the typical lounge fashion or with occupants facing each other. Drink holders are nestled into the bulwarks, so they aren’t pressing into the lower backs of the occupants. Naturally, a filler cushion will turn the entire area into a sun pad.

    Chaparral 230 SunCoast
    With the beam so far forward, there’s more available space for keeping the seating as roomy as possible.

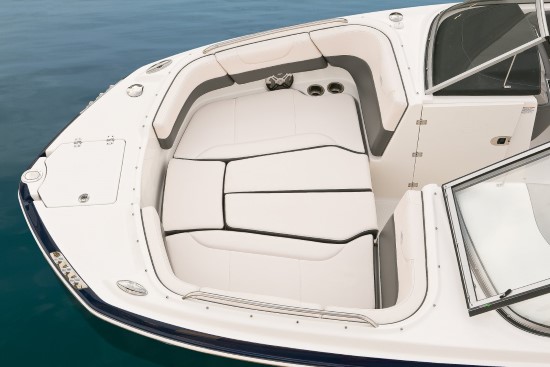

    Chaparral 230 SunCoast

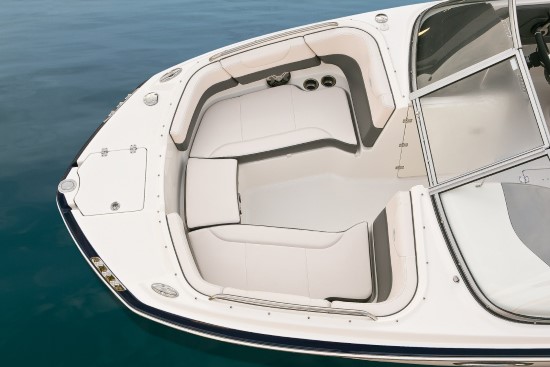

    A filler cushion converts the bow into a sun pad.

    As expected, there is storage underneath the side seats, but Chaparral fixes the cushions to articulating hinges. This makes it easier to access the storage with one hand, and we’re also impressed with how much of the available space is considered usable. Chaparral does this by narrowing the perimeters of the compartments, and this, in turn, allows for larger items to be placed into those compartments. Fully forward is a built-in, self-draining cooler.

    Chaparral 230 SunCoast

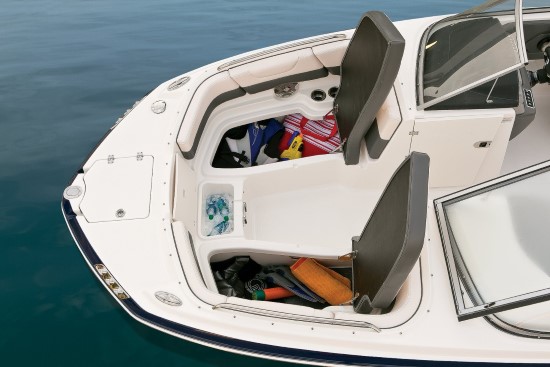

    The bow cushions are hinged to allow easier access to the storage underneath. Forward is a built-in cooler.
    Chaparral 230 SunCoast

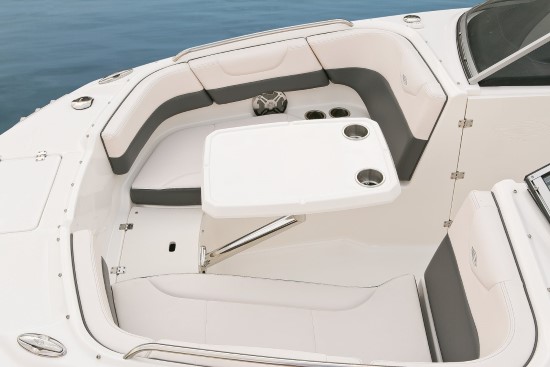

    The addition of a pedestal table makes the bow area into an additional gathering area -- perfect for the wine and cheese sunsets.

    An anchor locker

    is located at the forepeak, and Chaparral combined anchor storage with a reboarding ladder. The hatch is accessed by a lift-and-lock latch, and we would like to see the hinging allow the hatch to lie flat against the bow deck. This would take pressure off of the hinges and create one less warranty item, years down the road. That said, Chaparral does use heavy-duty stainless steel hinges all around.The beach-reboarding ladder is a four-step that easily deploys. Underneath, the anchor is secured by an anchor keeper system to both sides. Just ahead, the navigation light rotates to a flush position, so neither the anchor rode nor the reboarding ladder are affected by its location. Notches to both sides of the hull are molded in to accommodate the ladder in the deployed position. LED docking lights are located to both sides of the bow.

    Chaparral 230 SunCoast

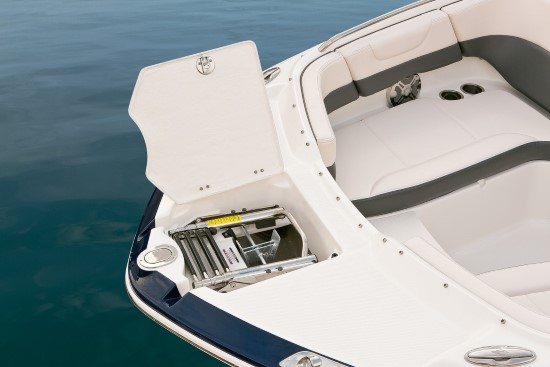

    Here, we can see how the anchor locker shares space with the reboarding ladder. Just ahead the navigation light is rotates to show a flush surface that won’t get damaged when either the anchor or ladder are deployed. Pull-up cleats are to both sides.

    Cockpit

    We transition to the cockpit by way of the usual walkthrough windshield. This, of course, can be closed off for operating on those chilly mornings. With the walkthrough closed off, a storage door is exposed, which leads into the helm console.

    Chaparral 230 SunCoast

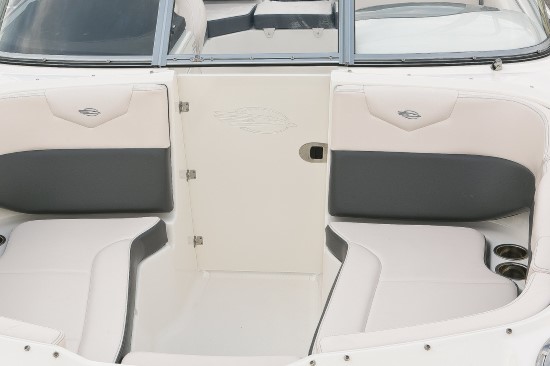

    The bow area can be closed off when the temperatures start to drop.

    Seating wraps around the cockpit

    from the port console to the helm seat. A flip seatback to the port side allows the observer seat to convert from forward facing to aft facing. Storage is under all of the seats, and there is one table with two mounts in the bow and cockpit ($294). There is plenty of storage in the deck, and two overboard deck drains allow easy washdowns at the end of the day.All upholstery is two-tone with extra padding, providing comfort underneath the legs. Wraparound bolsters serve both as padded armrests and comfortable seatbacks. Additional storage is underneath the seats. The helm seat can be swiveled around to further add to the amount of seating available in the cockpit. A 25-quart (23.7 L) carry-on cooler is located underneath the port seat.

    Chaparral 230 SunCoast

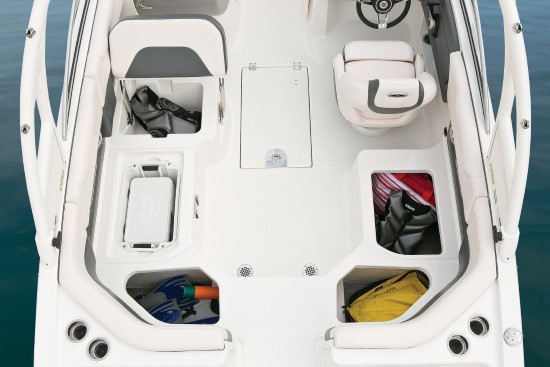

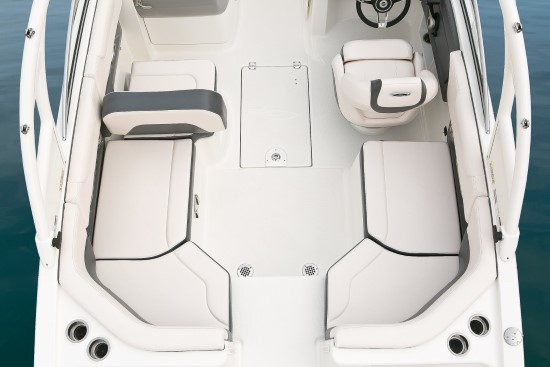

    Cockpit seating surrounds the interior and all have storage underneath.
    Chaparral 230 SunCoast
    Cockpit storage is underneath.
    Chaparral 230 SunCoast

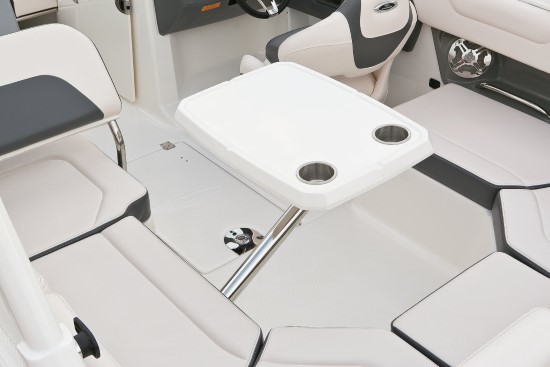

    With a table in the cockpit, guests can enjoy drinks near the captain or, facing aft, watch the action behind the boat.
    Chaparral 230 SunCoast

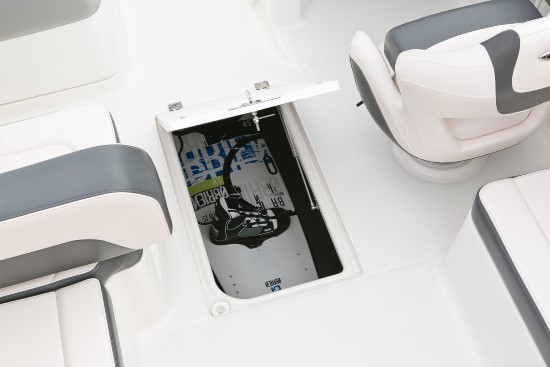

    The usual deck storage is accessed in this case from a hatch held open with a support strut. A turn and lock latch and hinges are both stainless.
    Chaparral 230 SunCoast
    With the optional tower, the 230 SunCoast becomes a capable wakeboard platform.

    More Upscale Features

    While a cursory glance at the bow shows plenty of stainless steel, the cockpit seems to have it everywhere. It is seen in all hardware, seat fixtures, the table pedestal, and in the hinges and latch of the deck storage hatch. A custom tower can be added ($3,188) in either black or white powder coating. Some will also want to add the premium beach weave snap-in carpet ($744).

    Chaparral 230 SunCoast
    Notice the amount of stainless steel in this picture. Every fitting is designed to last through the long haul.

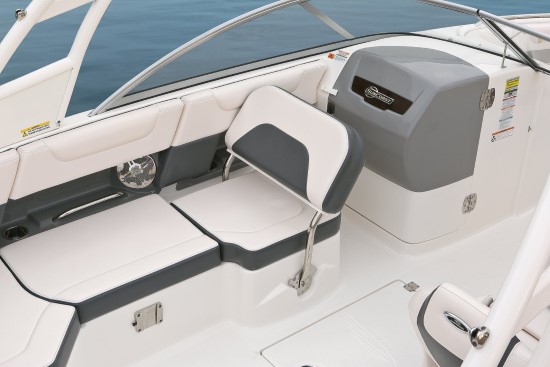

    Chaparral 230 SunCoast
    With the seatback flipped, the observer’s seat converts from forward to aft facing.

    Head

    The port console can be left as open storage, or some may choose to opt for the Porta-Potti ($273) or pump-out head ($419). As with any boat in this size range, this compartment is small for use as a head, but still manageable. Even with the head option, there is still available space for additional storage if day trip necessities, such as beach chairs, towels, tote bags, etc.The head can be dressed up to match the upscale nature of the rest of the boat. Add a cabinet and sink upgrade ($619) and electric toilet ($1,094 with cabinet and sink), or both with an overboard discharge ($1,919).

    Chaparral 230 SunCoast

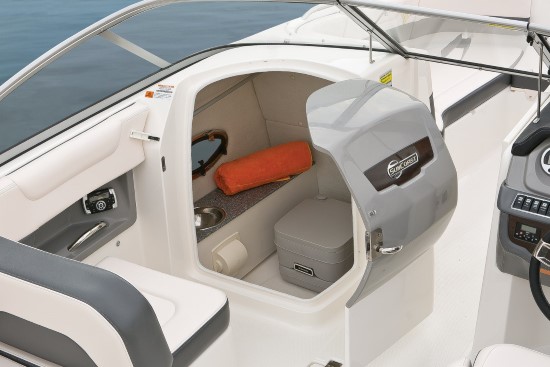

    The door to the head is double latched. Inside, there’s room for a Porta-Potti and additional storage. Notice the stereo remote to the left of the entrance.

    Helm

    The helm has darker tones, which not only offset the glare factor, but provides a welcome contrast to the white interior of the 230 SunCoast. Two recesses to either side of the panel will accommodate either the Yamaha Command Link engages or Mercury SmartCraft gauges, depending on the power chosen by the customer. In the center of the panel, a 7” (17.78 cm) Garmin multifunction display ($1,131) is surrounded by a faux wood panel. Rocker switches are to both sides of the lower panel, and all are easily identified by labeling and international icons. We would like to see the horn separated by a contrasting color. Below, two more faux wood panels provide a mounting point for the stereo control, ignition, additional switching, and 12V accessory plug.

    Chaparral 230 SunCoast

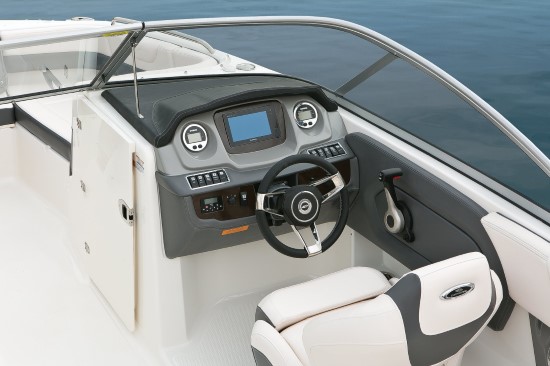

    The helm is exceedingly low on clutter thanks in part to the gauges allowing selectable information to be displayed as desired.
    Chaparral 230 SunCoast
    Storage under the helm is accessible when the air dam to the walkthrough is in the closed position.

    The three-spoke wheel is vinyl-wrapped stainless steel with the trademark floating Chaparral logo in the center, which remains in an upright position regardless of the wheel’s orientation. The engine control mounts to a padded bulwark with an integral armrest on top.

    Stern

    While the 230 SunCoast has the Extended V-Plane running surface, the dual swim platforms extended even farther, all the way to the rear of the outboard. This provides even more space for utilizing the stern as a place to relax or as a staging area for putting on boards and climbing aboard the tube. We’d add the optional aft center seat and backrest ($156) or the transom gate ($163), one cannot have both. Of course, the pressure water system ($344) that adds a bow and stern shower is a must have.There are seat cushions to both port and starboard, further adding to the comfort level of this location. Underneath the seats, batteries are to one side and battery switches are to the other. We would like to see inserts placed under these cushions so that both locations can be further utilized as storage. A stereo remote is to the starboard side. Drink holders are just ahead and can be utilized by both the transom seats and the cockpit seats.

    Chaparral 230 SunCoast

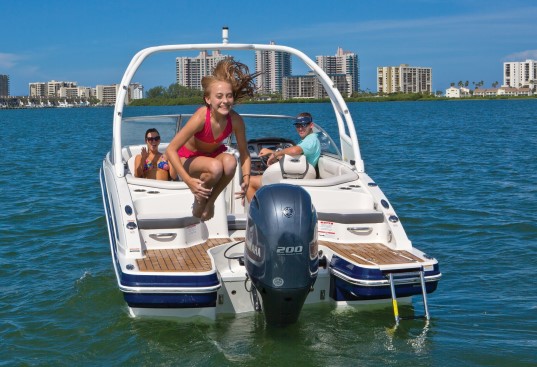

    Here, we can see the optional tower and SeaDek matting on the swim platform.
    Chaparral 230 SunCoast

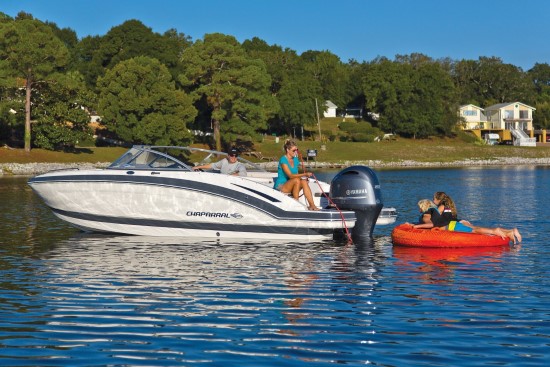

    With the stern seating, the platforms become an ideal staging area for getting on the tube or into the boards.

    Pull-up cleats to both outboard sides of the swim platforms remove any concern as tripping hazards. Optional deck covering can be ordered in lieu of the standard nonskid decking. A second reboarding letter is to starboard.

    Form Meets Function

    One of the most attractive features of this outboard powered boat’s stern area is the ability to walk around the entire front and sides of the outboard. All too often, the positioning of the outboard inhibits the ability to walk from one side to the other. Chaparral's solution makes it that much easier to perform daily checks on and service the engine.

    Chaparral 230 SunCoast

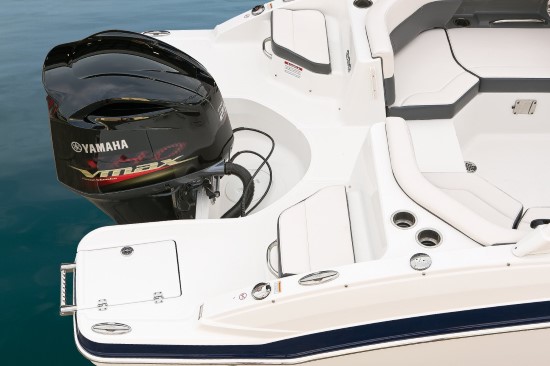

    Notice how we’re able to walk from one platform to the other without having to step over the engine well. Pull-up cleats are a great idea and they’re all around this boat.

    Pricing and Power Choices

    The 230 SunCoast has a base price of $49,995 when powered with the standard Yamaha 200 4-stroke. Chaparral offers the 230 SunCoast with outboard power from either Mercury or Yamaha, both with either 200- or 250-hp. The Yamaha 250 XCA is the most expensive, carrying a total package price of $57,805. A Mercury Verado 250 will package out at $56,359. Add custom paint for another $2,120. Fully loaded “our way,” she’ll approach $60k.

    Additional Options

    Hull colors are offered in White, Black, Blue, and Fire Red at no additional cost. A colored band will add $566 and four other hull tones can be had for another $1,094 upcharge. Like every good manufacturer, a pair of optional packages put together the most popular options into groups that are discounted from buying them a la carte. The Preferred Package ($745) includes a transom stereo remote, eight pull-up cleats, stainless steel speaker covers, bow scuff plate, galvanized anchor, and air pump. The Deluxe Package ($2,120) has all of the Preferred items, plus teak matting at the platform, bow filler cushion, leather upgrade steering wheel, teak swim platform and deluxe badging.

    Observations

    The Chaparral 230 SunCoast clearly has a lot going for her in terms of comfort, usability, and functionality. With the ability to hold 12 people and keep them happy in so many ways, this is a boat that has a large amount of appeal. In true Chaparral fashion, she has both a deep cockpit and bow seating further adding to her safety. And as she is fully infused with Chaparral’s hull-form DNA, there should be no disappointment with regards to her handling either.

    Test Result Highlights

    • Top speed for the Chaparral 230 SunCoast (2016-) is 44.7 mph (71.9 kph), burning 17.7 gallons per hour (gph) or 66.99 liters per hour (lph).
    • Best cruise for the Chaparral 230 SunCoast (2016-) is 23.3 mph (37.5 kph), and the boat gets 4.2 miles per gallon (mpg) or 1.79 kilometers per liter (kpl), giving the boat a cruising range of 264 miles (424.87 kilometers).
    • Tested power is 1 x 200-hp Yamaha F200XB.

    Standard and Optional Features

    Marine Electronics

    GPS/Chart Optional

    Systems

    Battery Charger/Converter Optional
    CD Stereo Standard
    Head: Portable Optional
    Head: Fixed Optional

    Exterior Features

    Carpet: Cockpit Optional Snap-in
    Swim Platform Standard
    Tower: Watersports Optional
    Transom Shower Optional

    Canvas

    Bimini Top Standard
    Cockpit Cover Optional

    Warranty

    Full Warranty Information on this brand coming soon!
